Generator Connectors

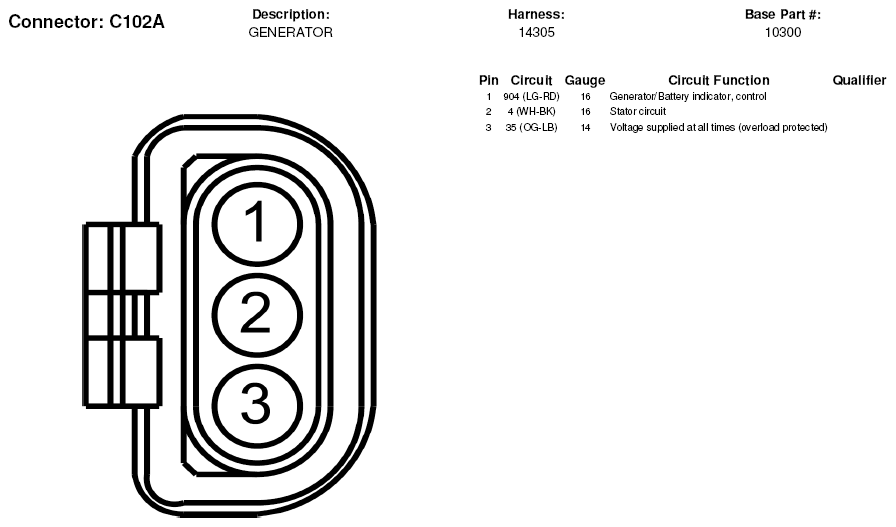

Fig 1: Generator Connector End View (C102A)
G05181119Courtesy of FORD MOTOR CO.

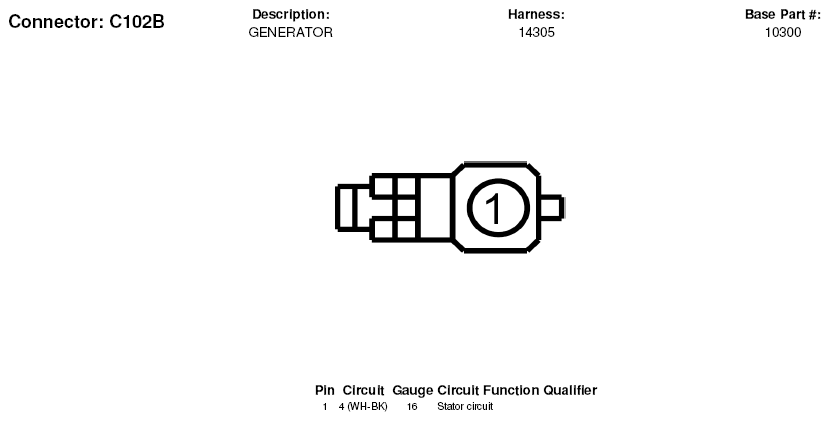

Fig 2: Generator Connector End View (C102B)
G05181120Courtesy of FORD MOTOR CO.

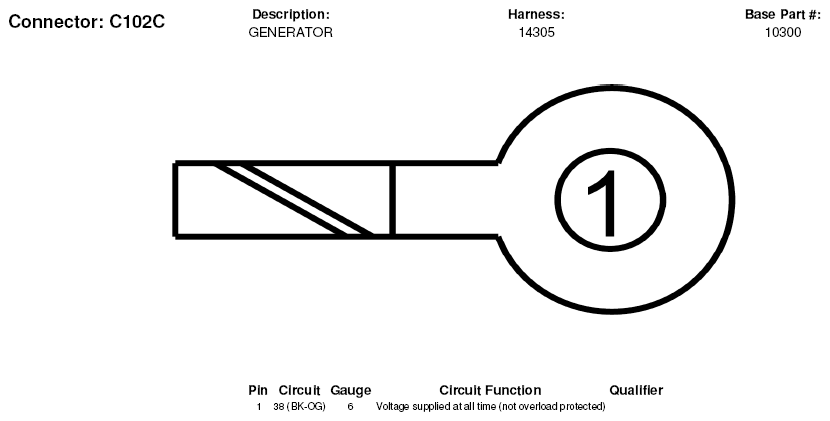

Fig 3: Generator Connector End View (C102C)
G05181121Courtesy of FORD MOTOR CO.

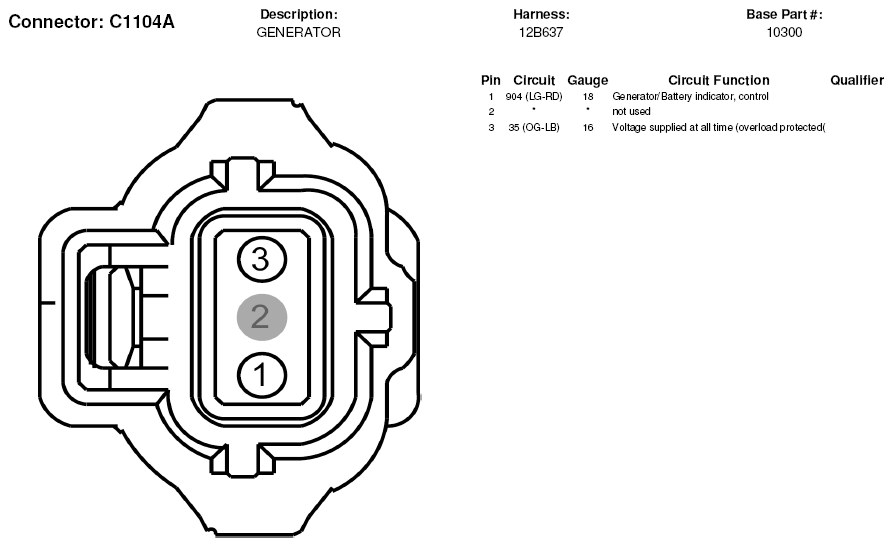

Fig 4: Generator Connector End View (C1104A)
G05181314Courtesy of FORD MOTOR CO.
Fig 5: Generator Connector End View (C1104C)
G05181315Courtesy of FORD MOTOR CO.

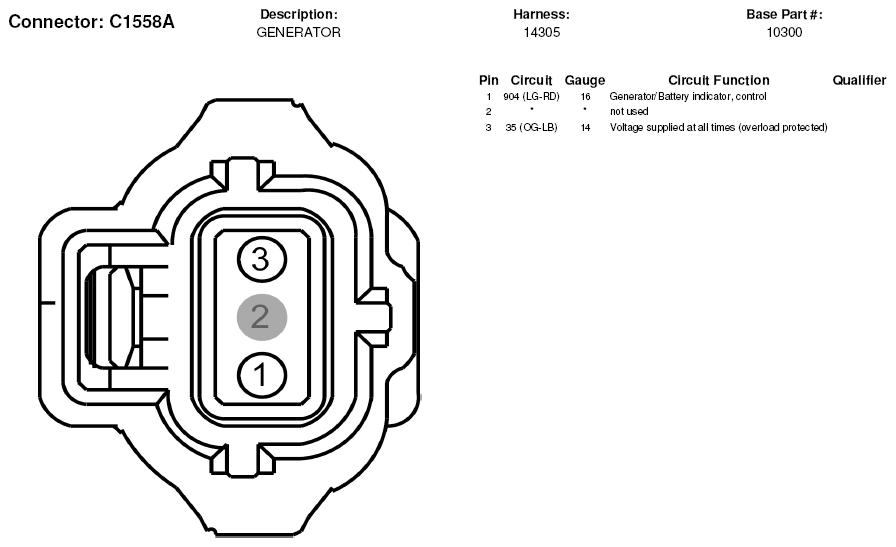

Fig 6: Generator Connector End View (C1558A)
G05181371Courtesy of FORD MOTOR CO.

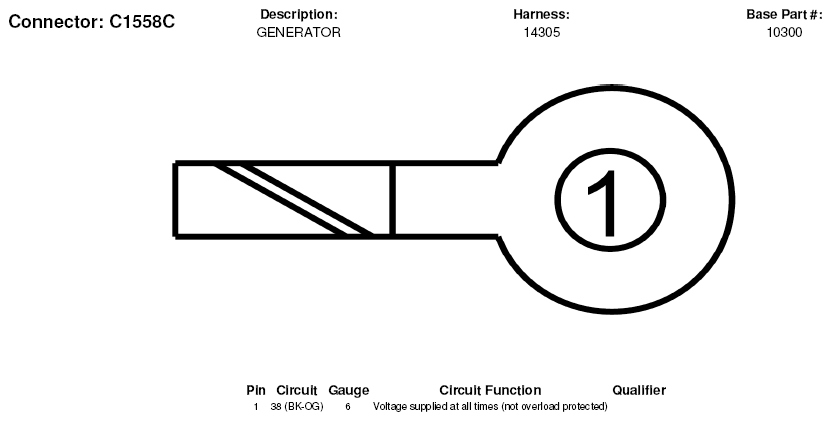

Fig 7: Generator Connector End View (C1558C)
G05181372Courtesy of FORD MOTOR CO.
