Engine Oil Temperature Sensor Connector

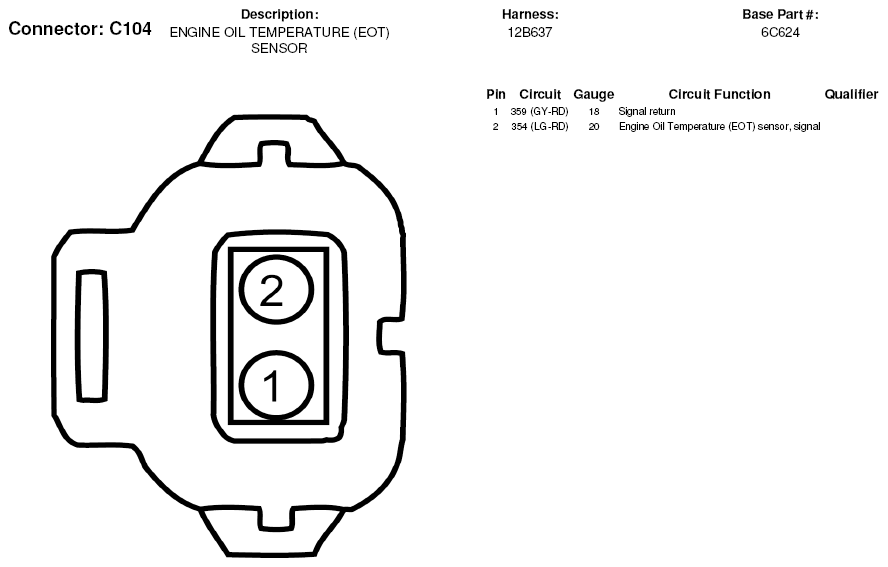

Fig 1: Engine Oil Temperature Sensor Connector End View (C104)

G05181123

Courtesy of FORD MOTOR CO.
