Daytime Running Lamps Module Connector

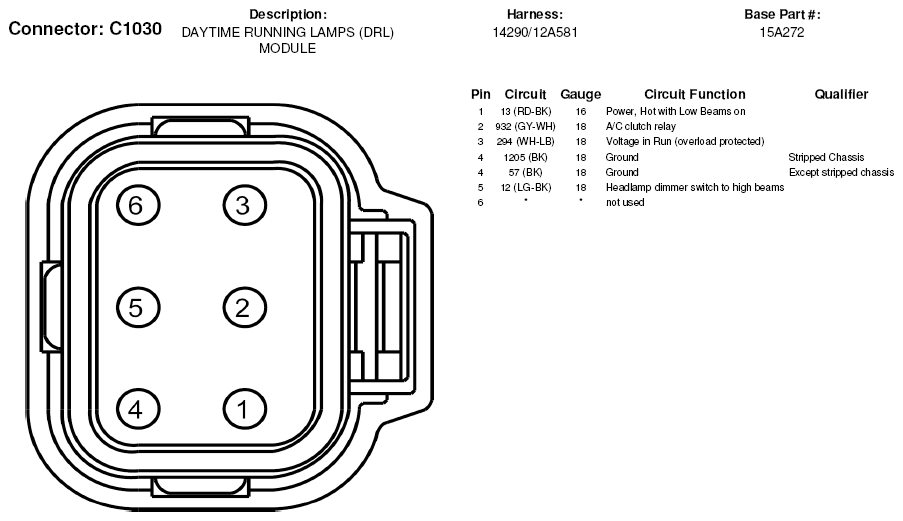

Fig 1: Daytime Running Lamps Module Connector End View (C1030)

G05181298

Courtesy of FORD MOTOR CO.
