Passenger Airbag Module Connector

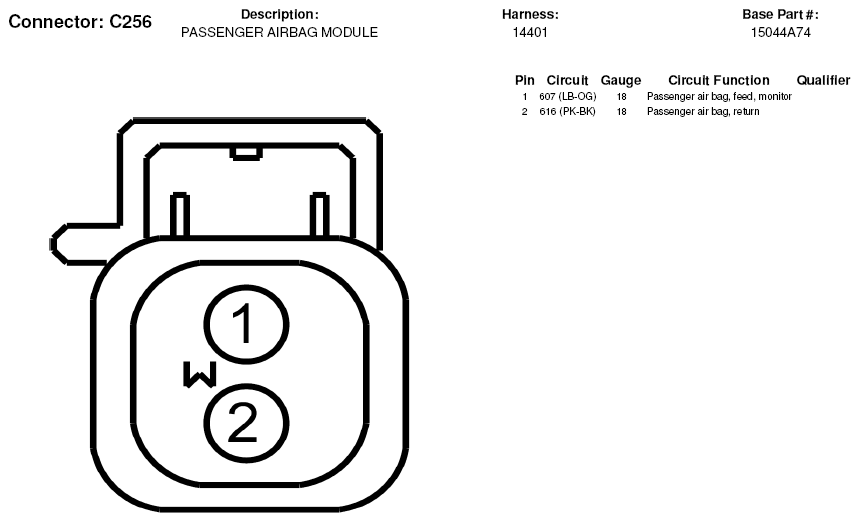

Fig 1: Passenger Airbag Module Connector End View (C256)

G05181213

Courtesy of FORD MOTOR CO.
