Left Front Strobe Assembly Connector

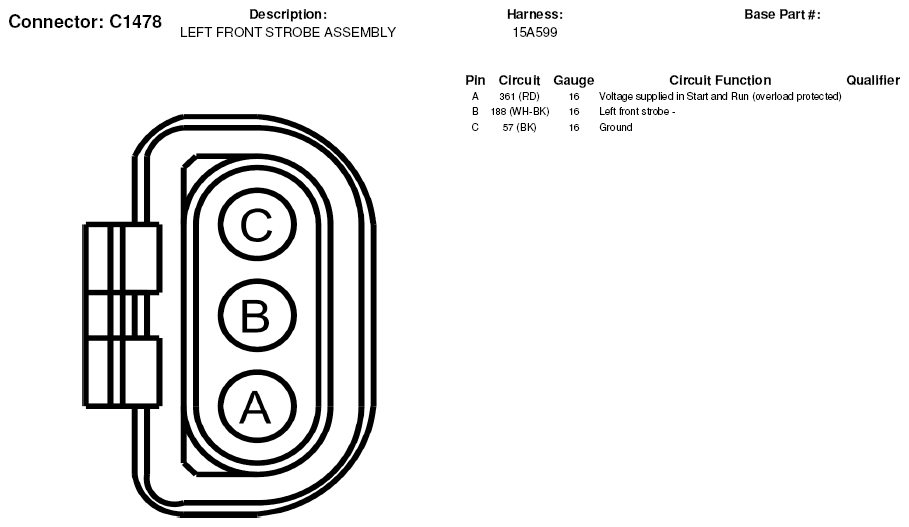

Fig 1: Left Front Strobe Assembly Connector End View (C1478)

G05178206

Courtesy of FORD MOTOR CO.
