Removal And Installation: Radiator: Notes

SPECIAL TOOLS DESCRIPTION

G04709584Courtesy of FORD MOTOR CO.
 Disconnect Tool, Spring Lock Coupling 310-S039 (T90T-9550-S)

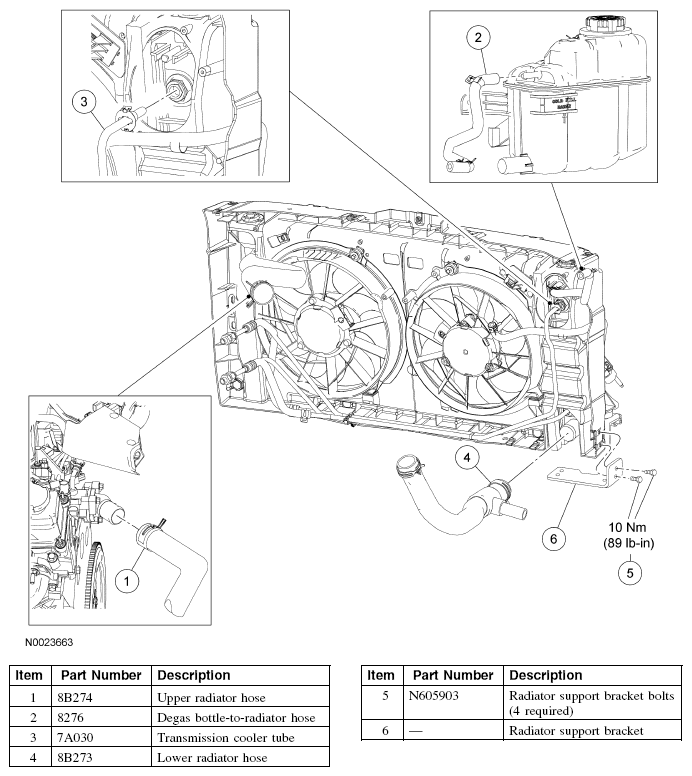

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)
G04709585Courtesy of FORD MOTOR CO.

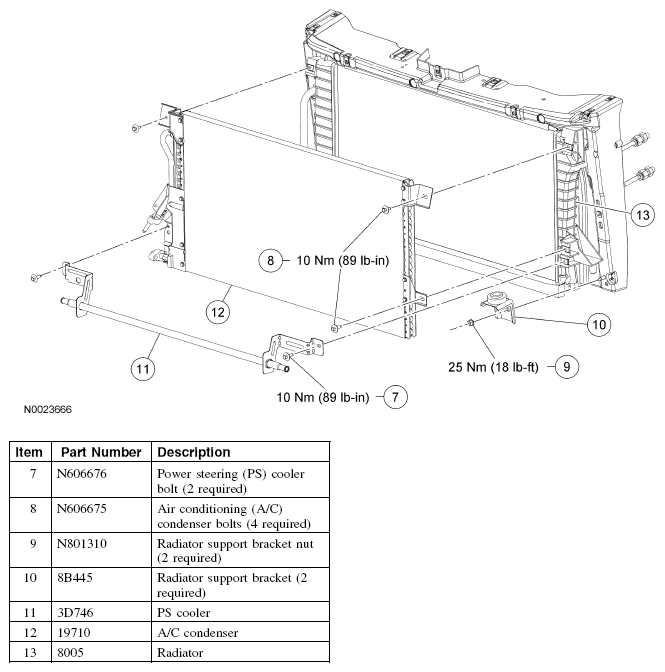

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 2)
G04709586Courtesy of FORD MOTOR CO.
