Exhaust System - Exploded View

2.3L

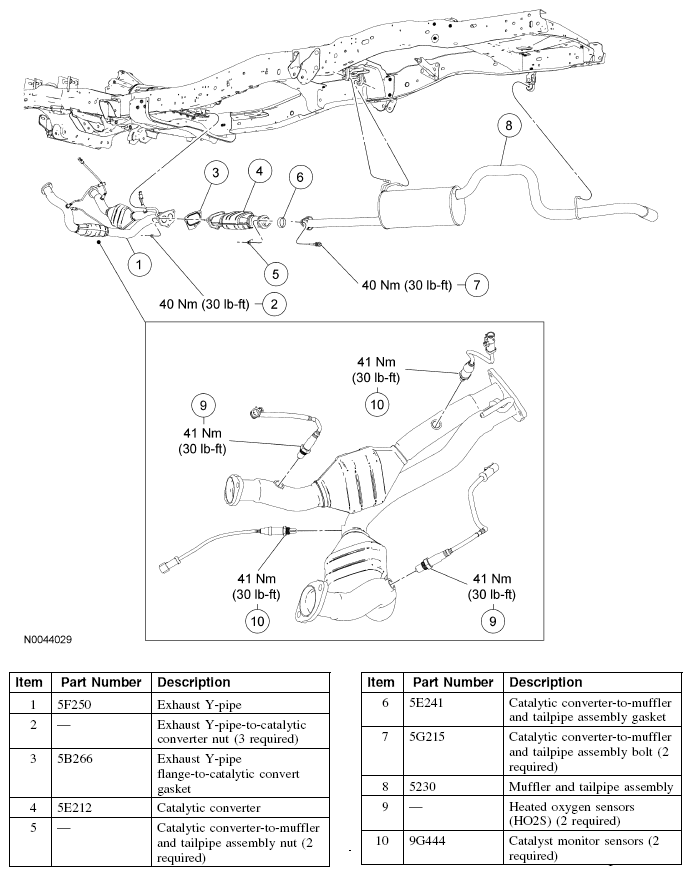

Fig 1: Exploded View Of Exhaust System Components 2.3L With Torque Specifications

Courtesy of FORD MOTOR CO.

3.0L

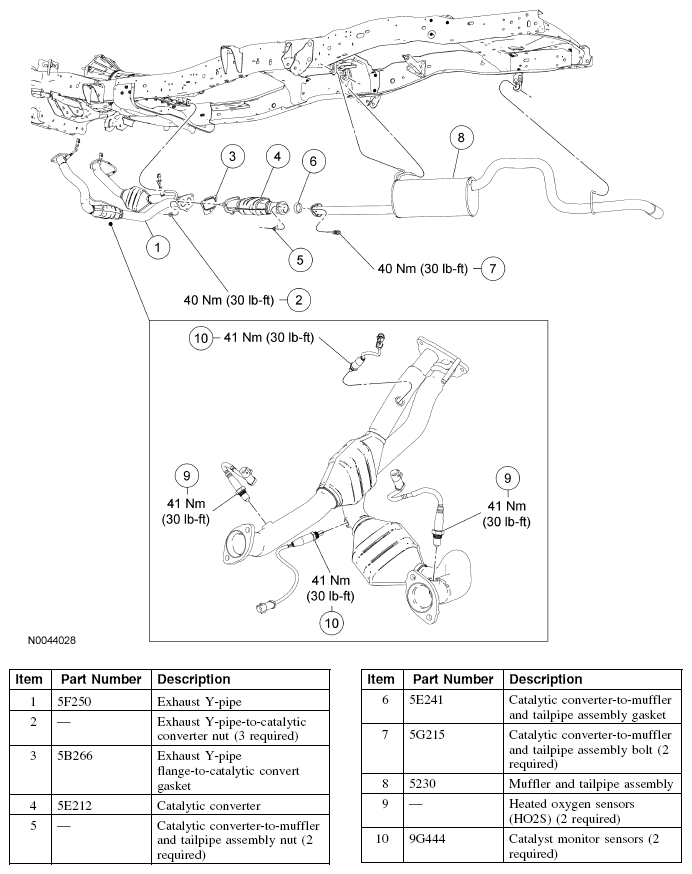

Fig 2: Exploded View Of Exhaust System Components 3.0L With Torque Specifications

Courtesy of FORD MOTOR CO.

4.0L

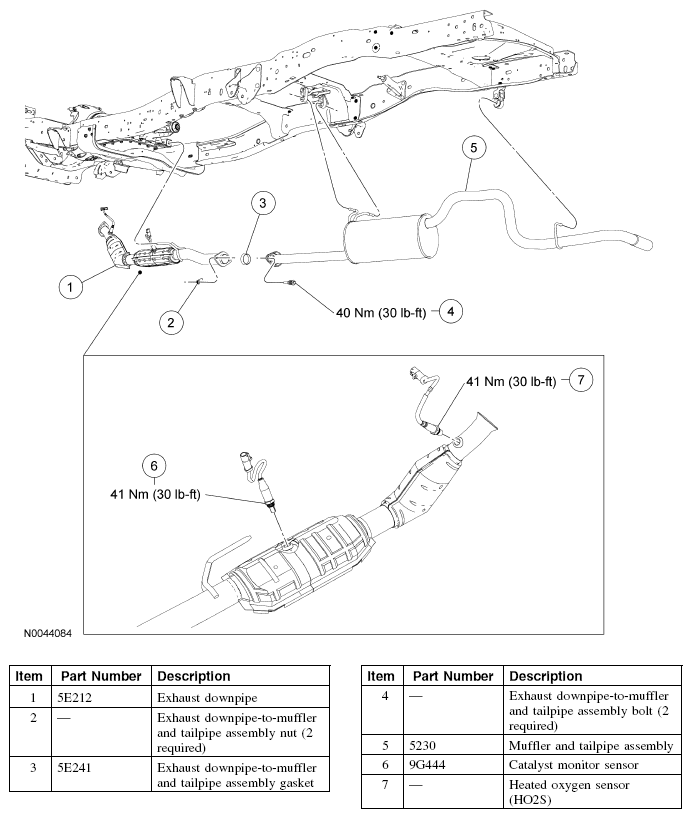

Fig 3: Exploded View Of Exhaust System Components 4.0L With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure.
