Automatic Transaxle/Transmission - FNR5
>>
In-Vehicle Repair
>>
Intermediate Shaft Speed Sensor
>>
Notes
Intermediate Shaft Speed Sensor: Notes
MATERIAL
Item
Specification
Thread Sealant with PTFE TA-24
WSK-M2G350-A2

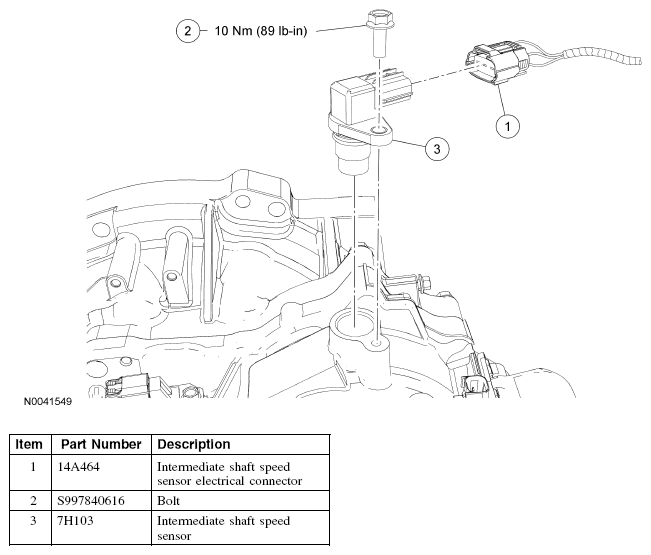

Fig 1: Intermediate Shaft Speed Sensor With Torque Specifications
Courtesy of FORD MOTOR CO.
