Speaker Enclosure
>>
Notes
Speaker Enclosure: Notes
NOTE:
4-door shown, all others similar.

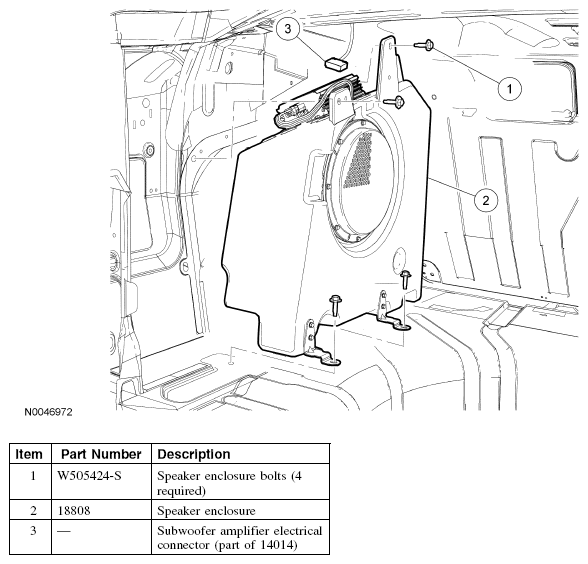

Fig 1: Identifying Speaker Enclosure
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
