Seat - Exploded View, Third Row

Third Row Seat Backrest

NOTE: RH backrest shown, LH similar.

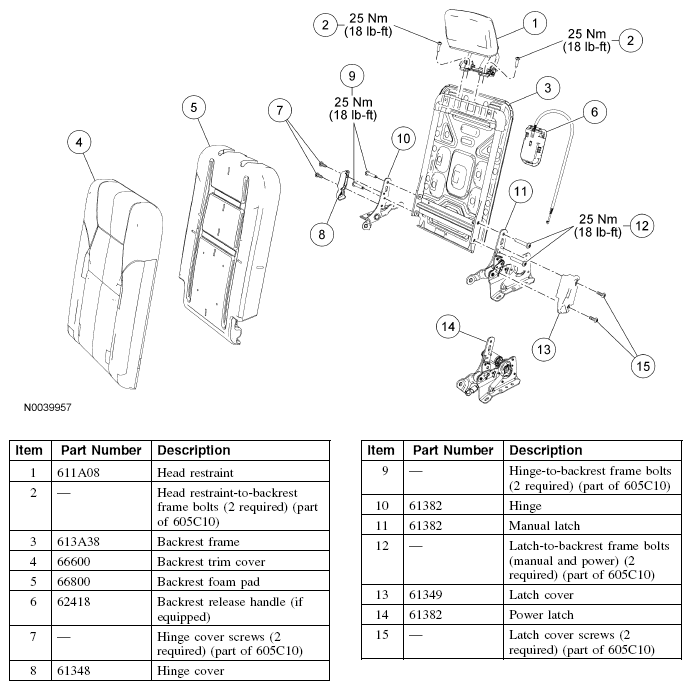

Fig 1: Exploded View Of Third Row Seat Backrest Components With Torque Specification

Courtesy of FORD MOTOR CO.

Third Row Seat Cushion

NOTE: RH cushion shown, LH similar.

NOTE: Power latch shown, manual latch similar.

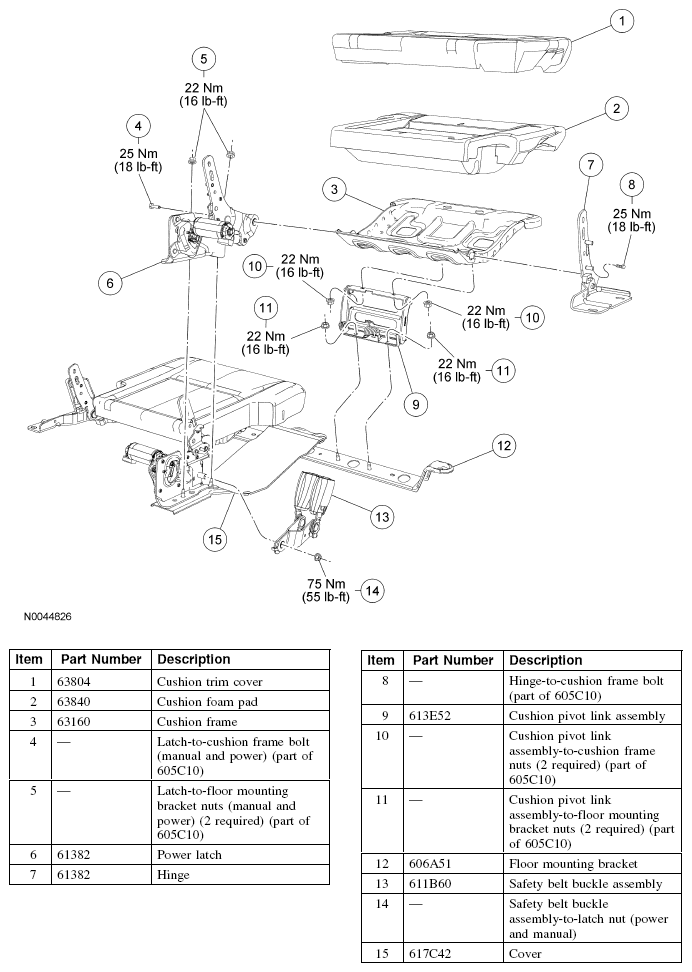

Fig 2: Exploded View Of Third Row Seat Cushion Components With Torque Specification

Courtesy of FORD MOTOR CO.
