Final Drive Carrier and Differential Assembly: Notes

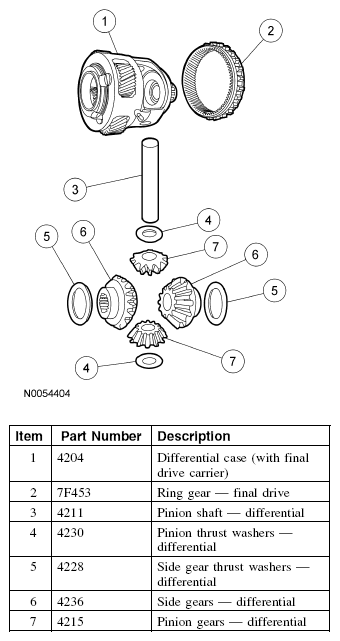

Fig 1: Identifying Final Drive Carrier & Differential Assembly Components
G04620185Courtesy of FORD MOTOR CO.
