Connector Circuit Reference

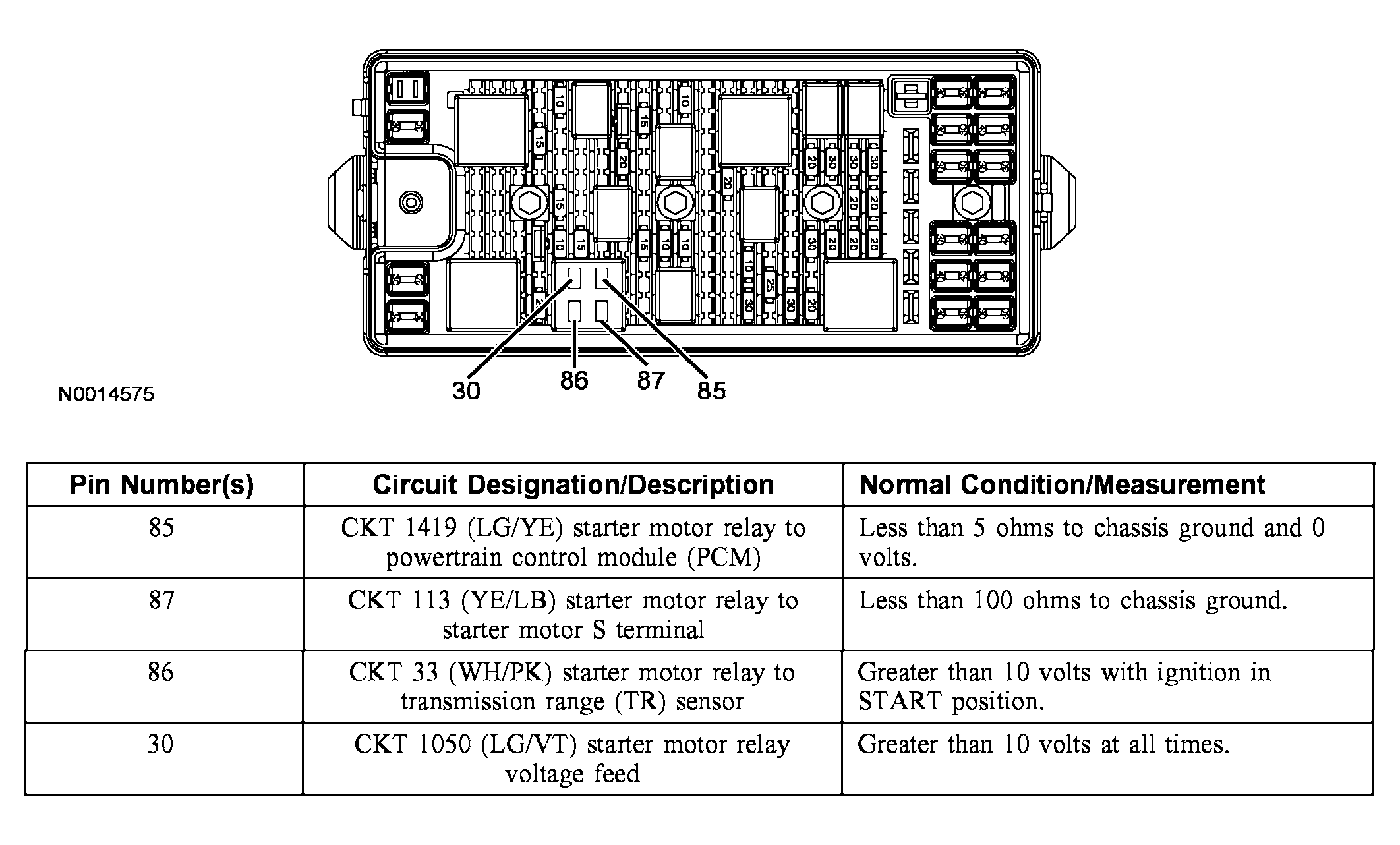

Fig 1: Identifying Starter Motor Relay
G04004453Courtesy of FORD MOTOR CO.

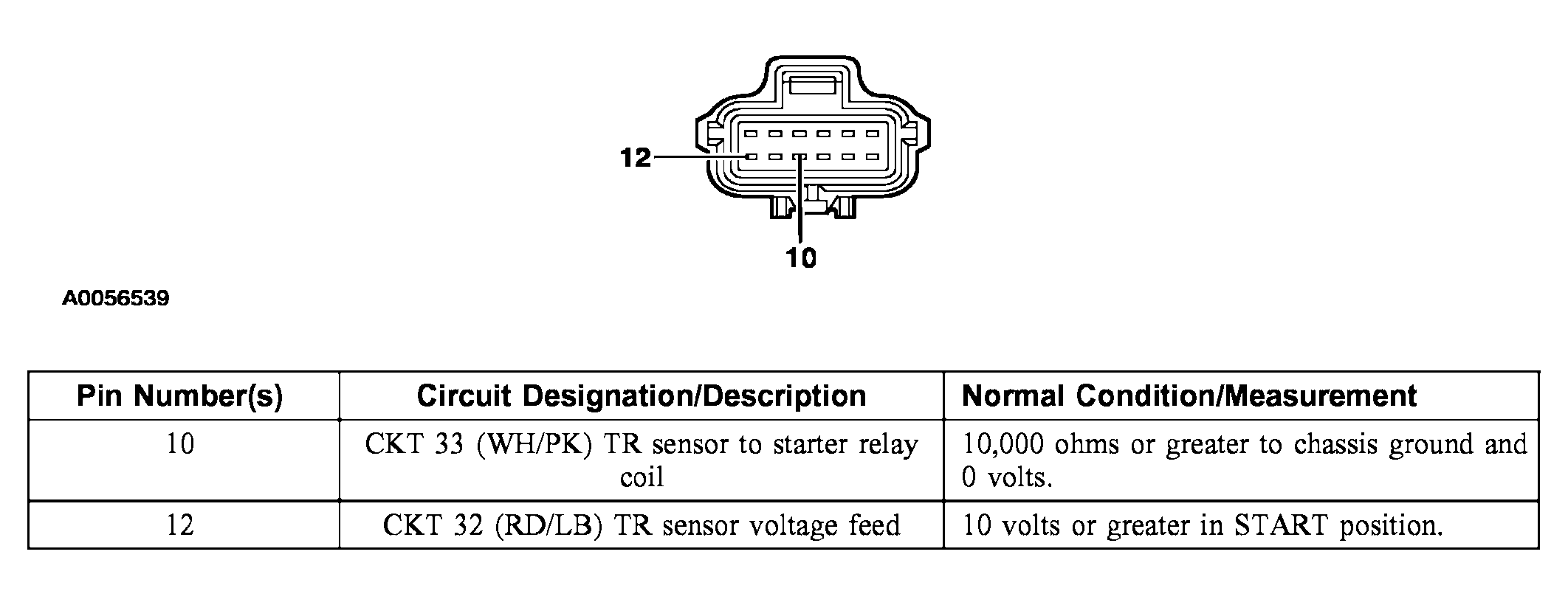

Fig 2: Identifying TR Sensor C167
G04004454Courtesy of FORD MOTOR CO.

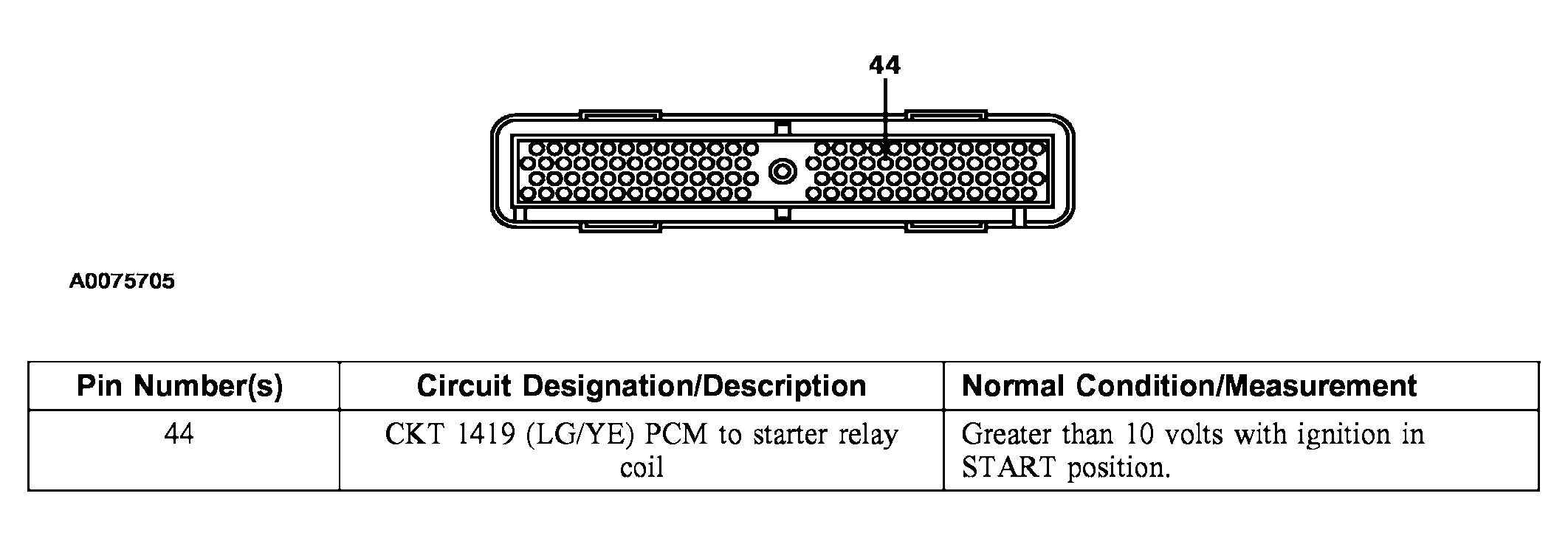

Fig 3: Identifying Powertrain Control Module (PCM) C175
G04004455Courtesy of FORD MOTOR CO.

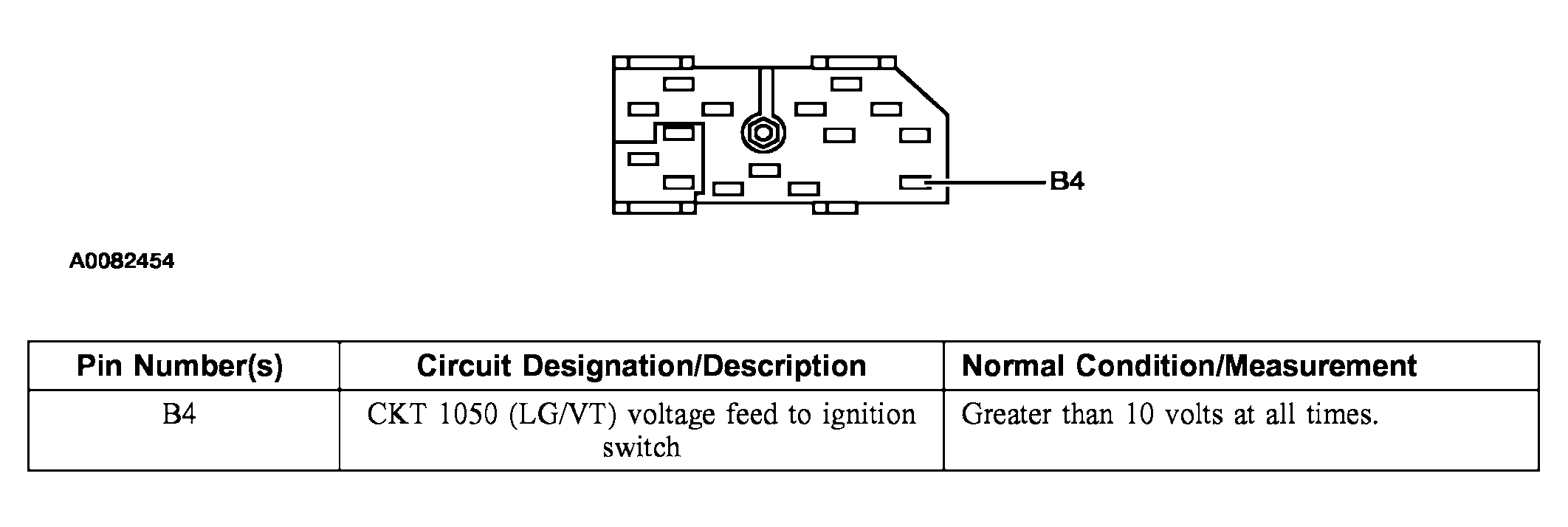

Fig 4: Identifying Ignition Switch C250
G04004456Courtesy of FORD MOTOR CO.
