Removal and Installation

  1. Remove the driver air bag. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  2. Disconnect the speed control switch electrical connector.

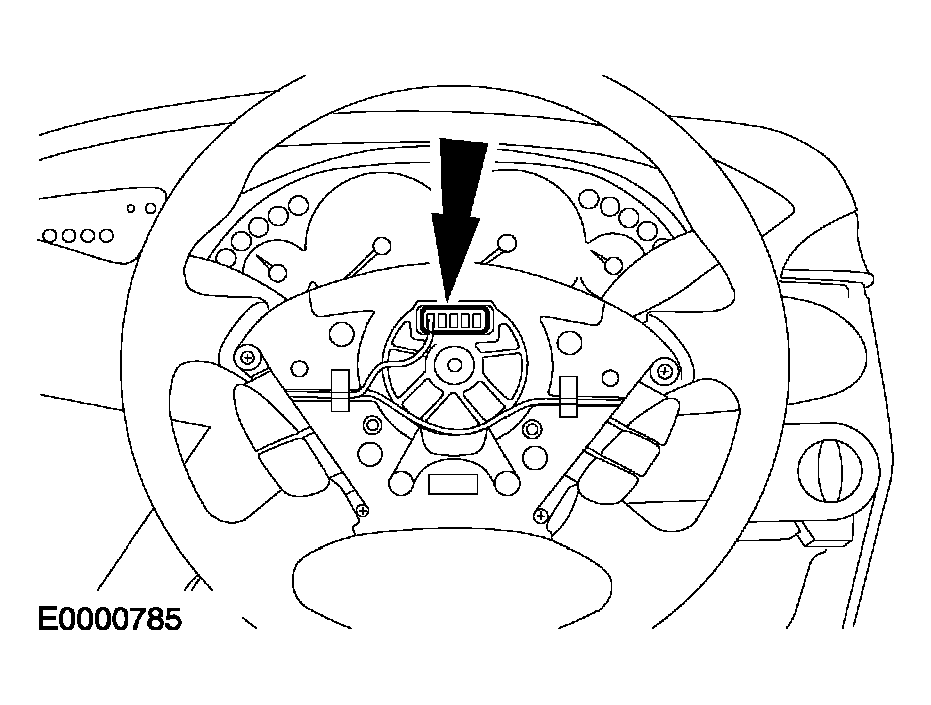

    Fig 1: Disconnecting Speed Control Switch Electrical Connector
    G03951935Courtesy of FORD MOTOR CO.
  3. Remove the speed control switches.

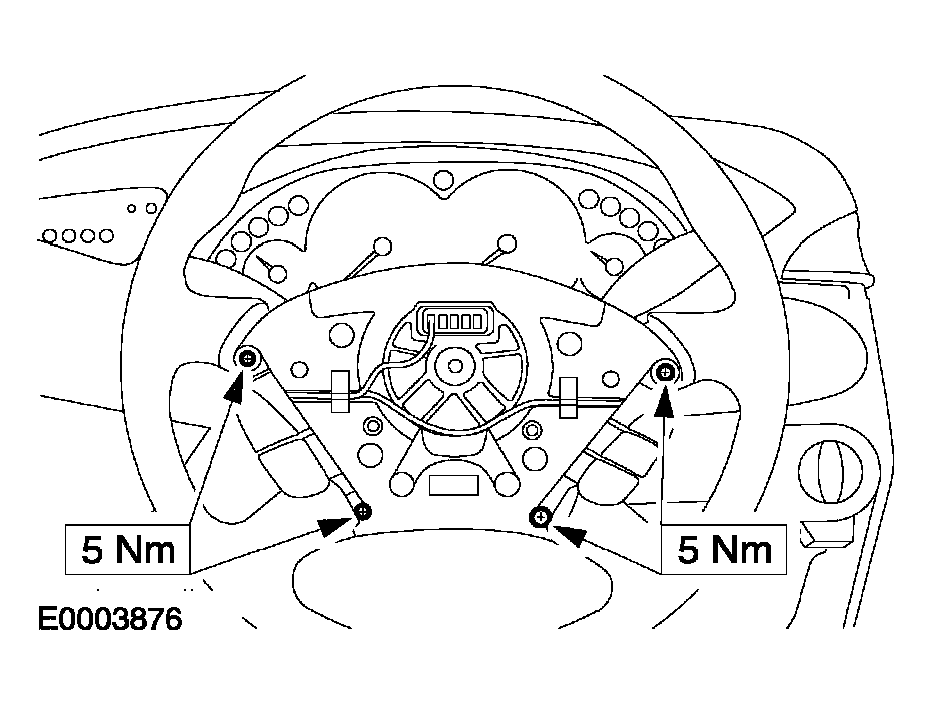

    Fig 2: Removing Speed Control Switches
    G03951936Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
