Vapor Tube Fittings: Connect

  1. Inspect the fitting and the tube for damage.

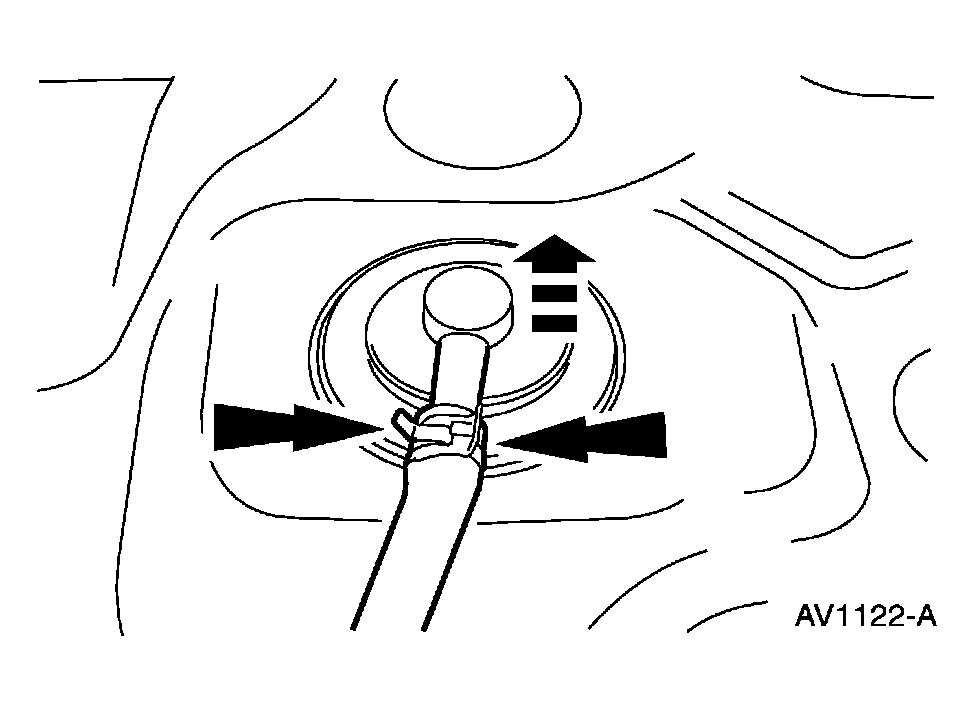

    Fig 1: Connecting Vapor Tube To Fitting
    G03909902Courtesy of FORD MOTOR CO.
  2. Remove any dirt or obstructions.
  3. Compress the tabs on the clamp and install the vapor tube on the fitting
