Safety Belt Shoulder Height Adjuster: Notes

NOTE: Passenger side safety belt shoulder height adjuster shown, driver side similar.

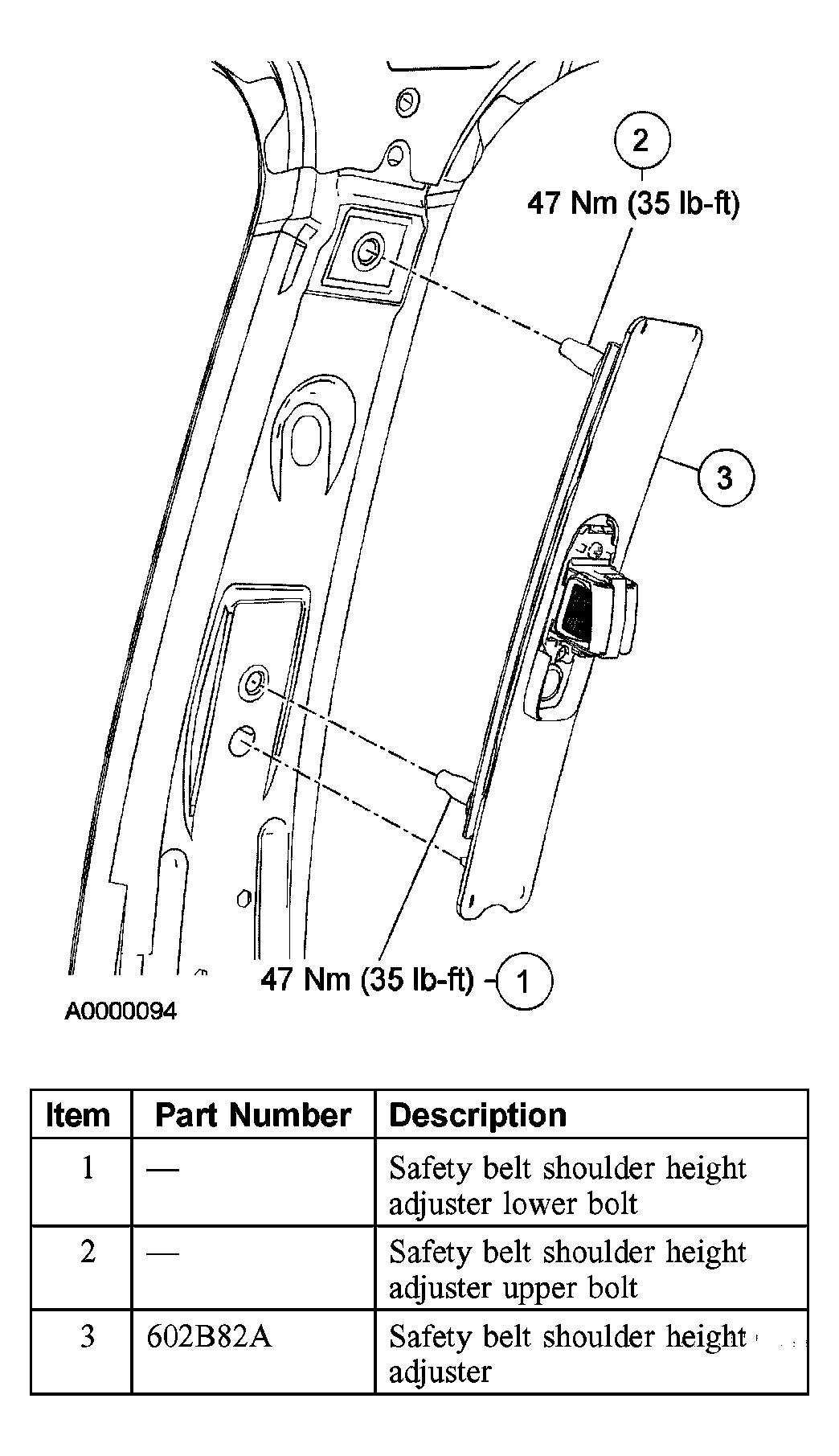

Fig 1: Displaying Safety Belt Shoulder Height Adjuster With Torque Specifications
G03903581Courtesy of FORD MOTOR CO.
