Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential case from the differential housing.
  2. Remove the components in the order indicated in the following illustration and table.
  3. To assemble, reverse the disassembly procedure.

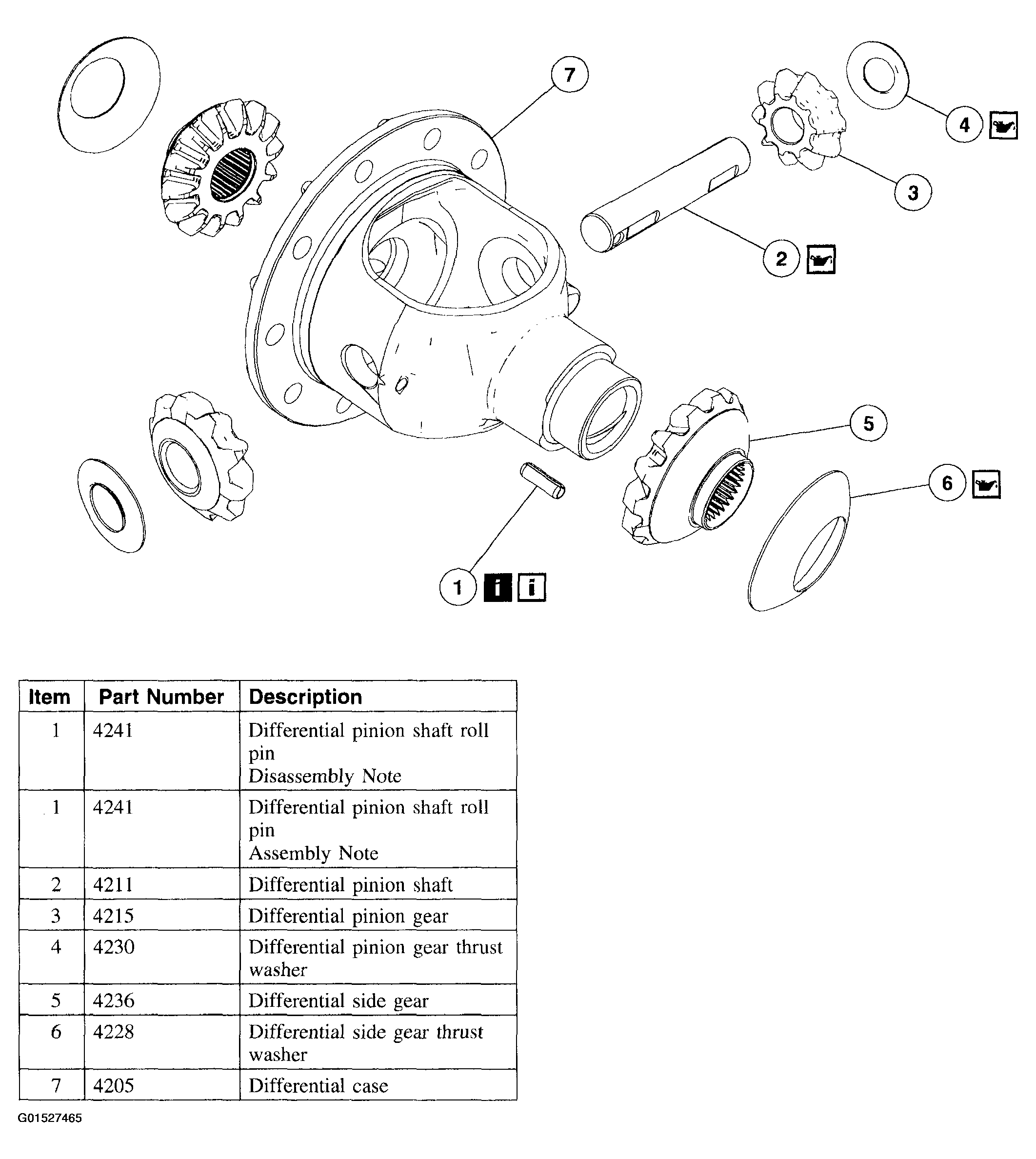

    Fig 1: Rear Axle Differential Case Component Locator
    G01527465Courtesy of FORD MOTOR CO.
