Speed Control Deactivator Switch: Installation

ALL VEHICLES

Release the plunger lock (if equipped).
- Turn the lock knob counterclockwise until first click is felt.

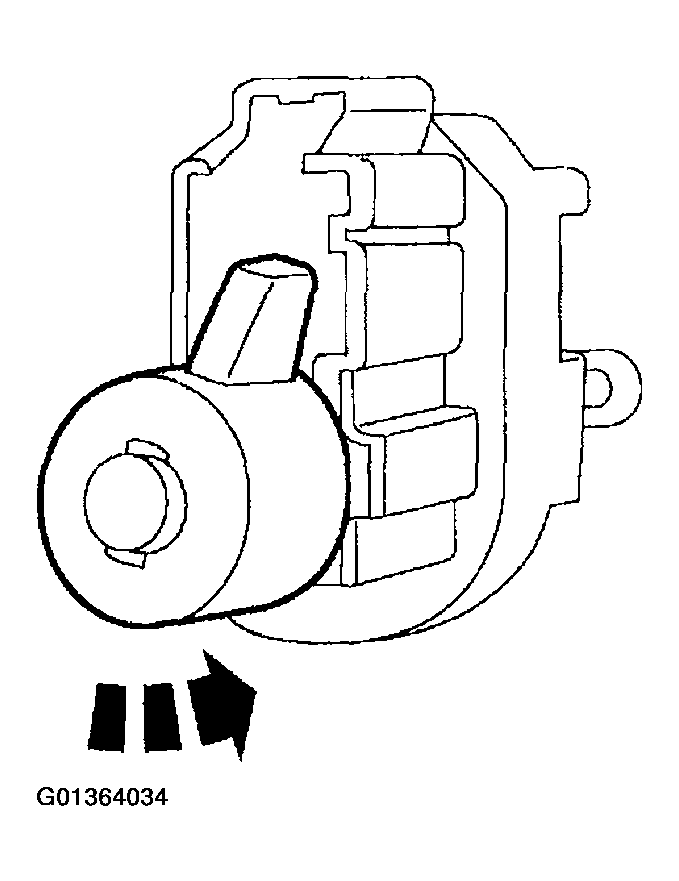

  Fig 1: Turning Lock Knob Counterclockwise
  Courtesy of FORD MOTOR CO.
Fully depress the brake pedal.
Install the deactivator switch.
1. Position the deactivator switch in the bracket and rotate clockwise 45 degrees.
2. Connect the electrical connector.

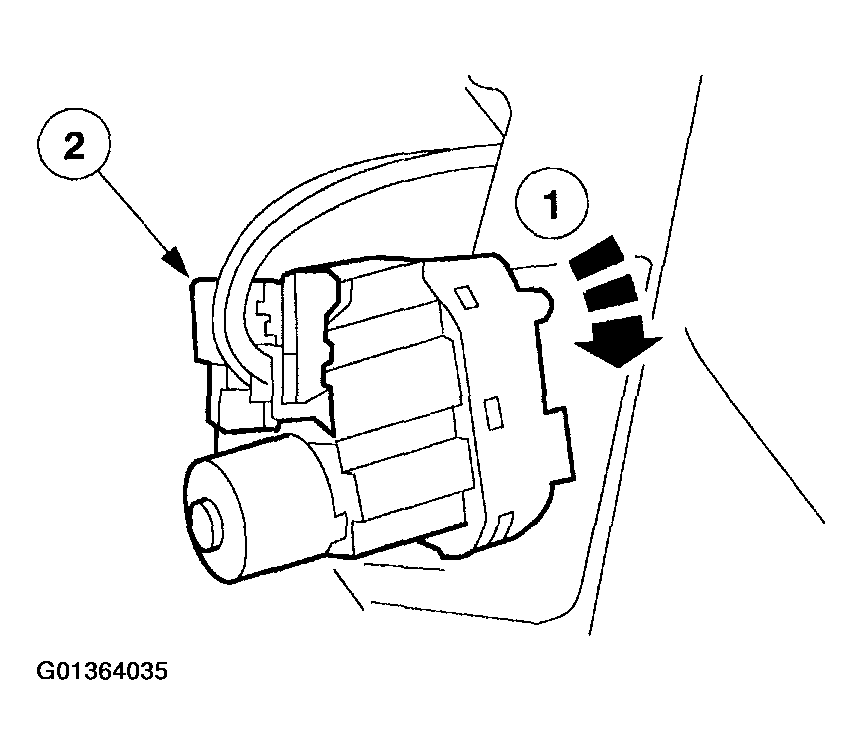

  Fig 2: Installing Deactivator Switch
  Courtesy of FORD MOTOR CO.
Vehicles equipped with locking tab
NOTE: There should be an extra click heard when tugging on the brake pedal.

Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.
