Power Steering Pump Identification

CAUTION: Always use the ID code when ordering service parts.

The pump identification code is located on a tag attached to the power steering pump.

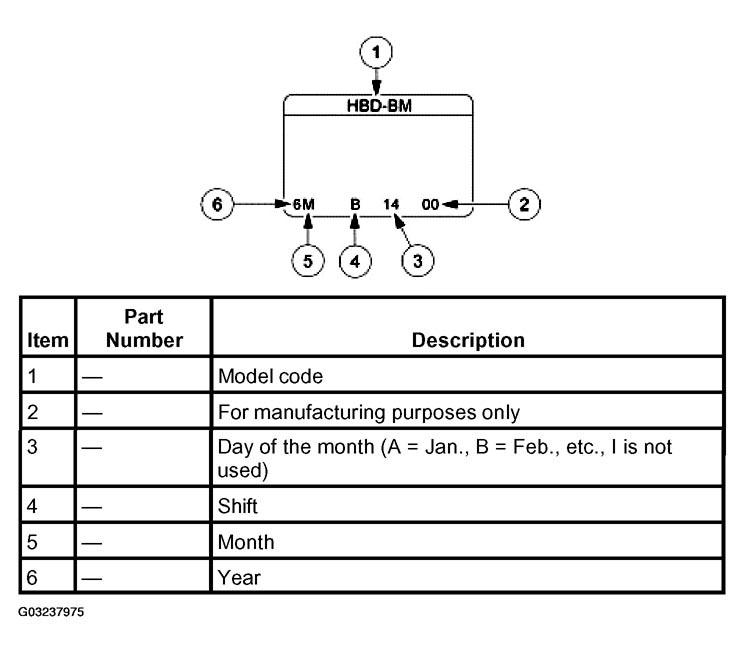

Fig 1: Identifying Power Steering Pump
G03237975Courtesy of FORD MOTOR CO.
