Steering System - General Information
>>
Diagnosis And Testing
>>
Steering System
>>
Symptom Chart
Symptom Chart

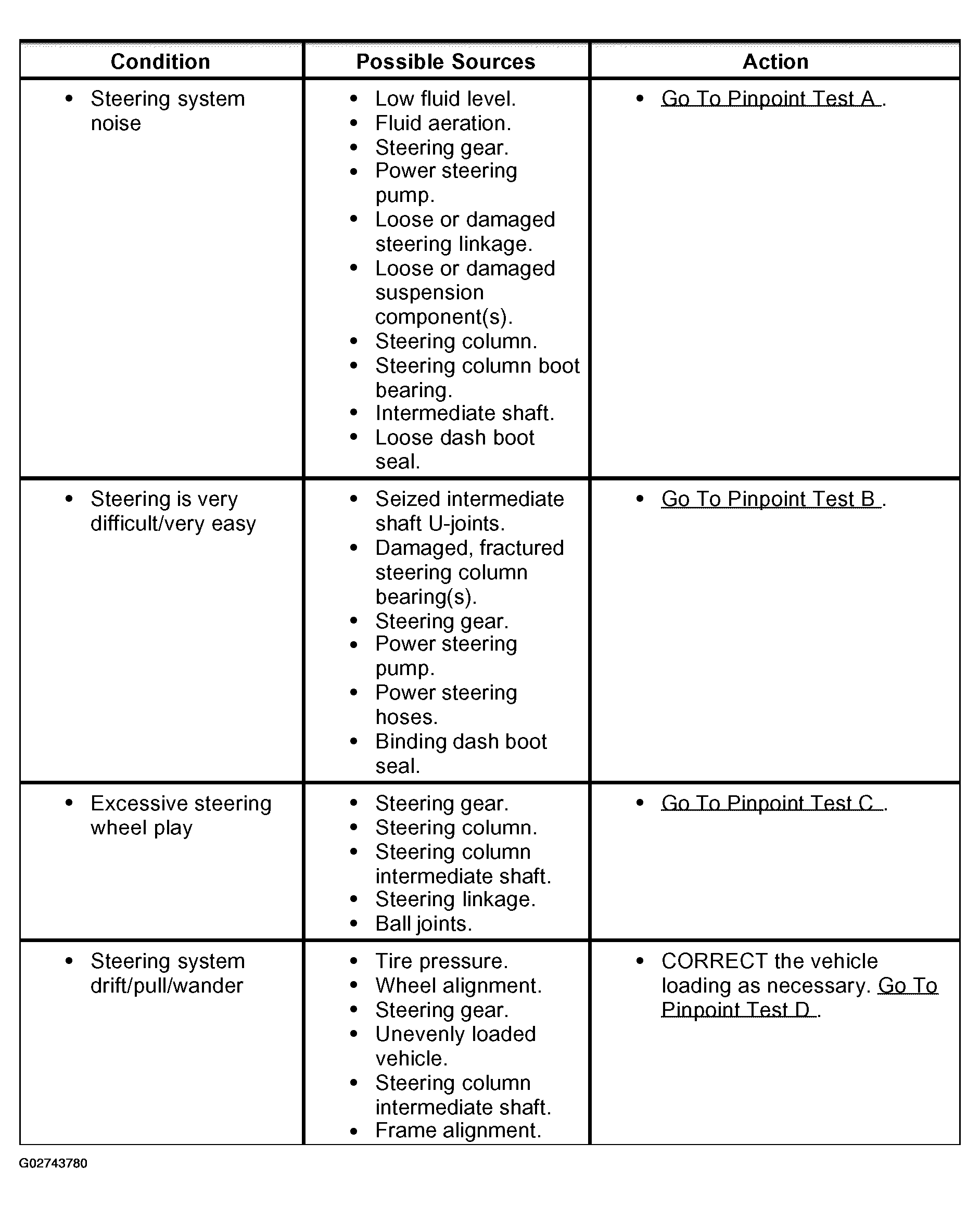

Fig 1: Identifying Symptom Specification Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

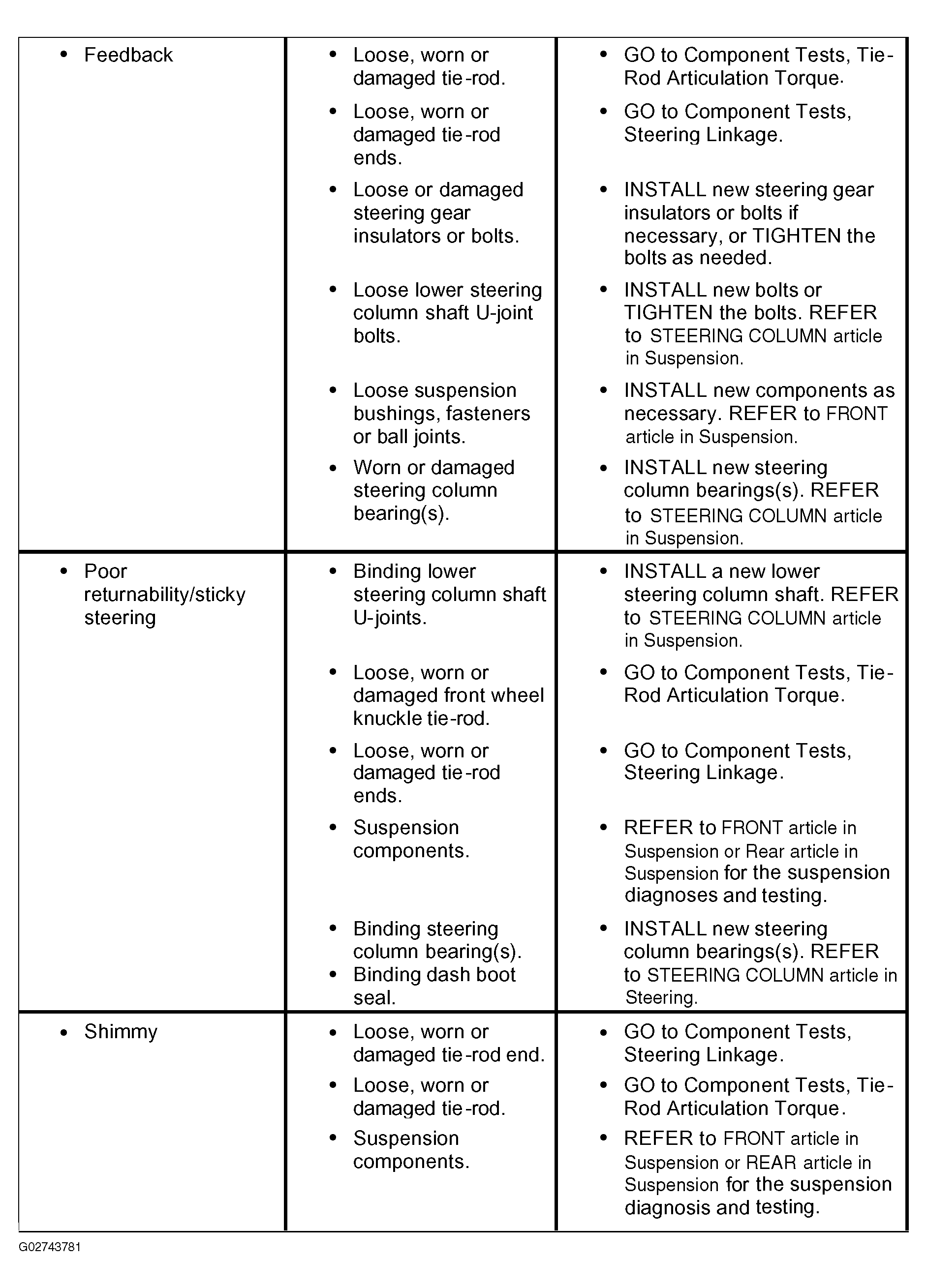

Fig 2: Identifying Symptom Specification Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
