Crown Victoria LX, 4.6 9
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing
>>
Component Testing
>>
Master window adjust switch
Master window adjust switch

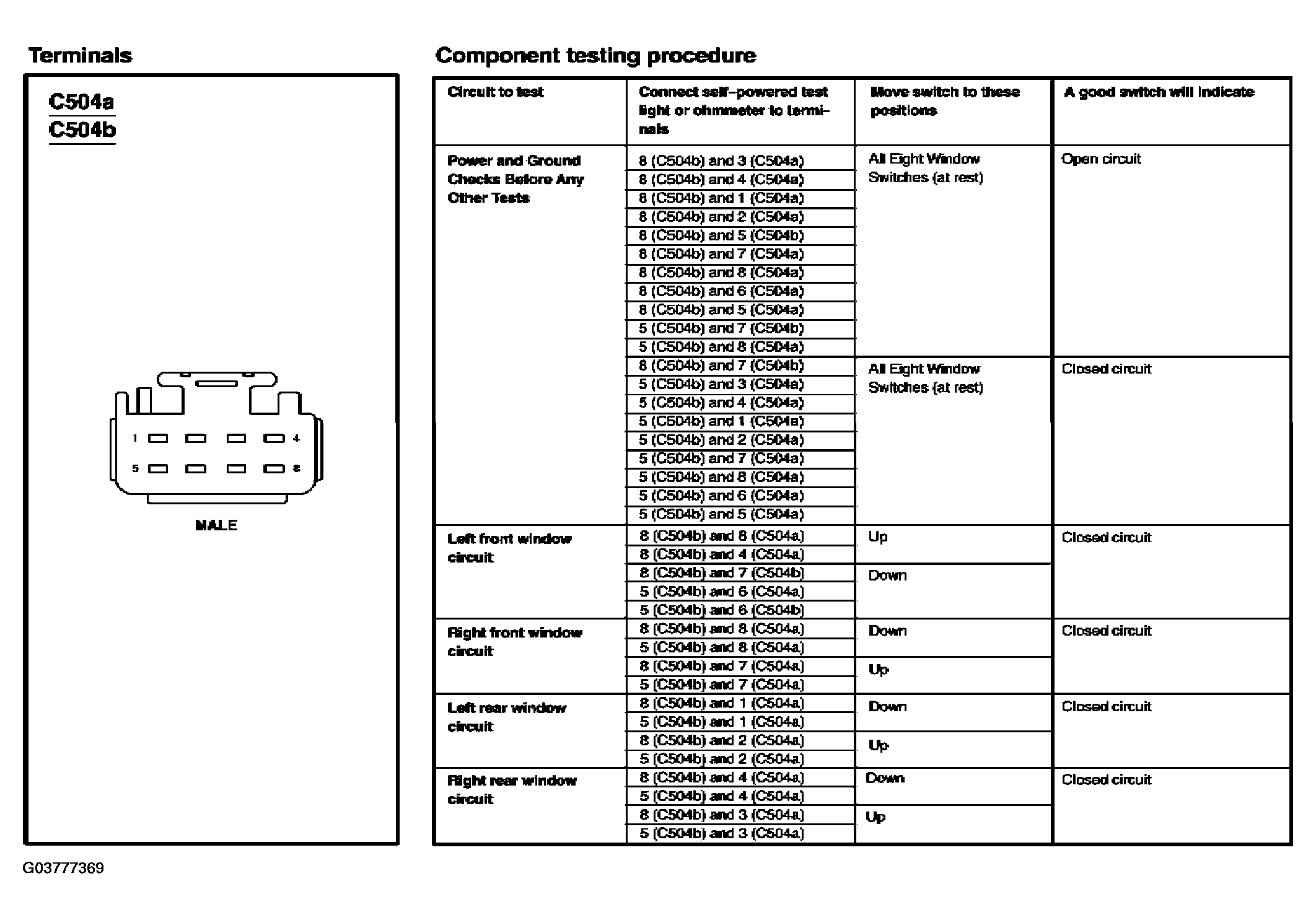

Fig 1: Testing Master Window Adjust Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

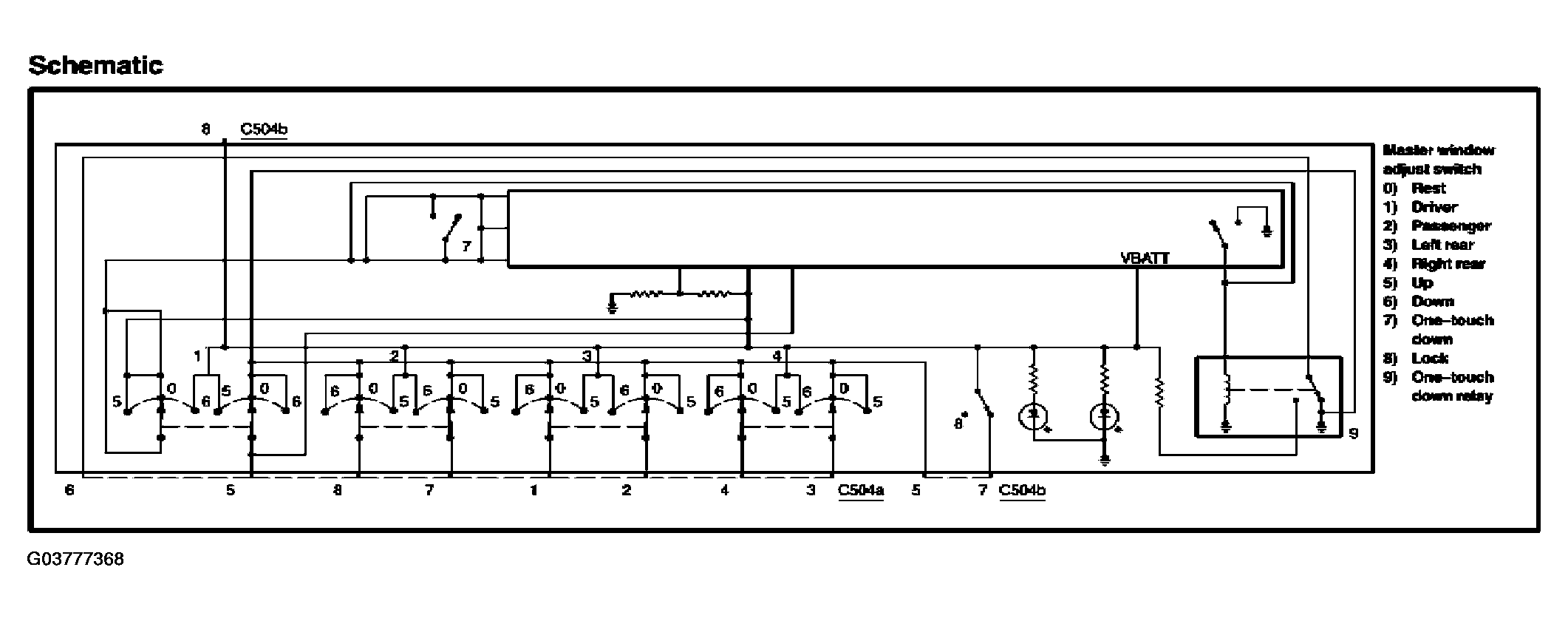

Fig 2: Testing Master Window Adjust Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
