Exhaust Manifold Cleaning And Inspection

Special Tool(s)

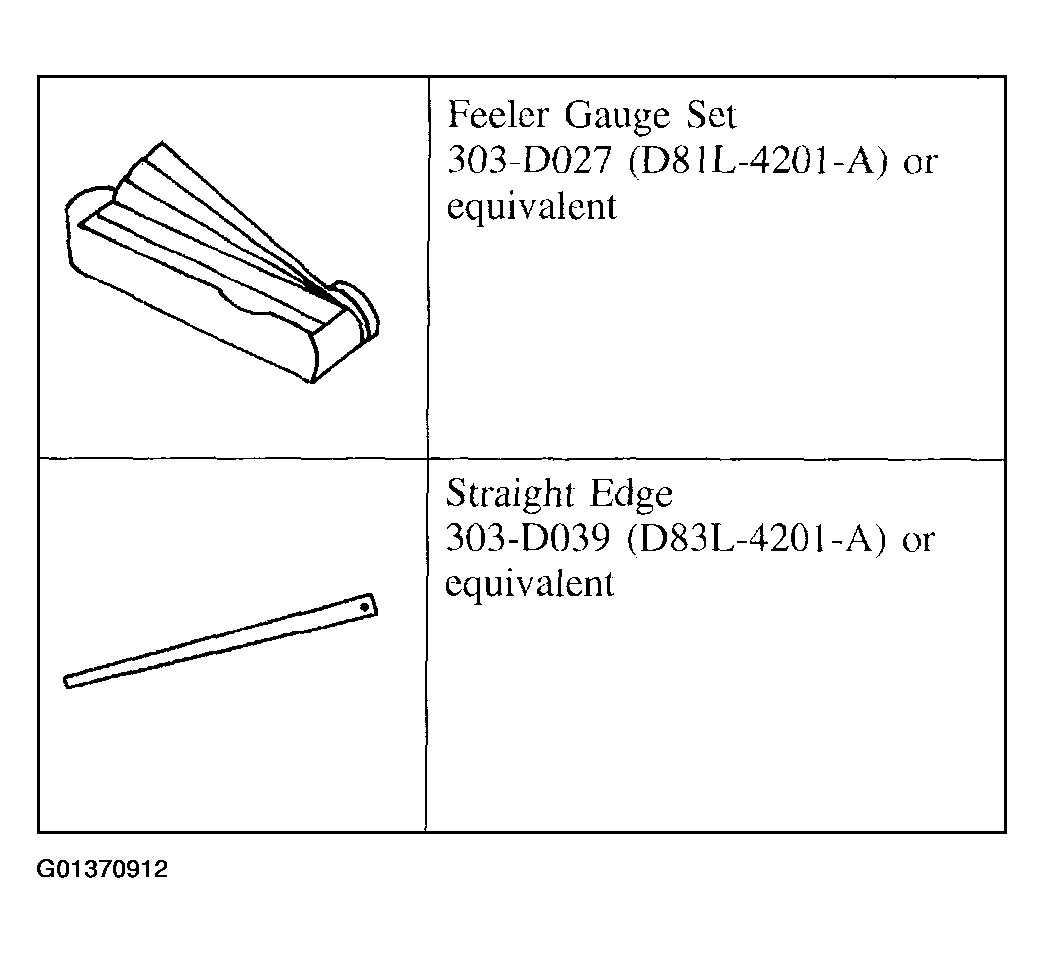

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Clean the exhaust manifold using a suitable solvent. Inspect the manifold for cracks or broken flanges.
2. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

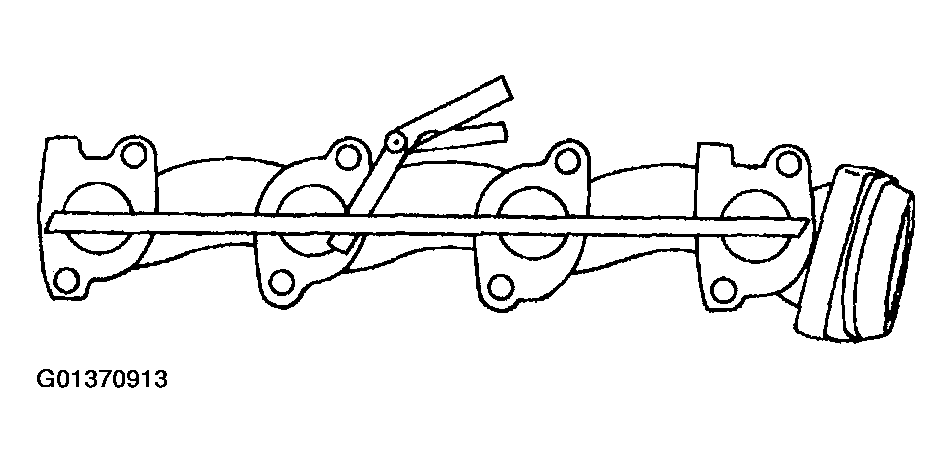

   Fig 2: Checking Exhaust Manifold Warpage

   Courtesy of FORD MOTOR CO.
