Clutch Start Switch (M/T)

Disconnect the battery ground cable. Disconnect the Clutch Start Switch (CSS) connector. Remove the two nuts and the CSS. See Fig 1 . To install, reverse the removal procedure. Tighten nuts to specification. See TORQUE SPECIFICATIONS  .

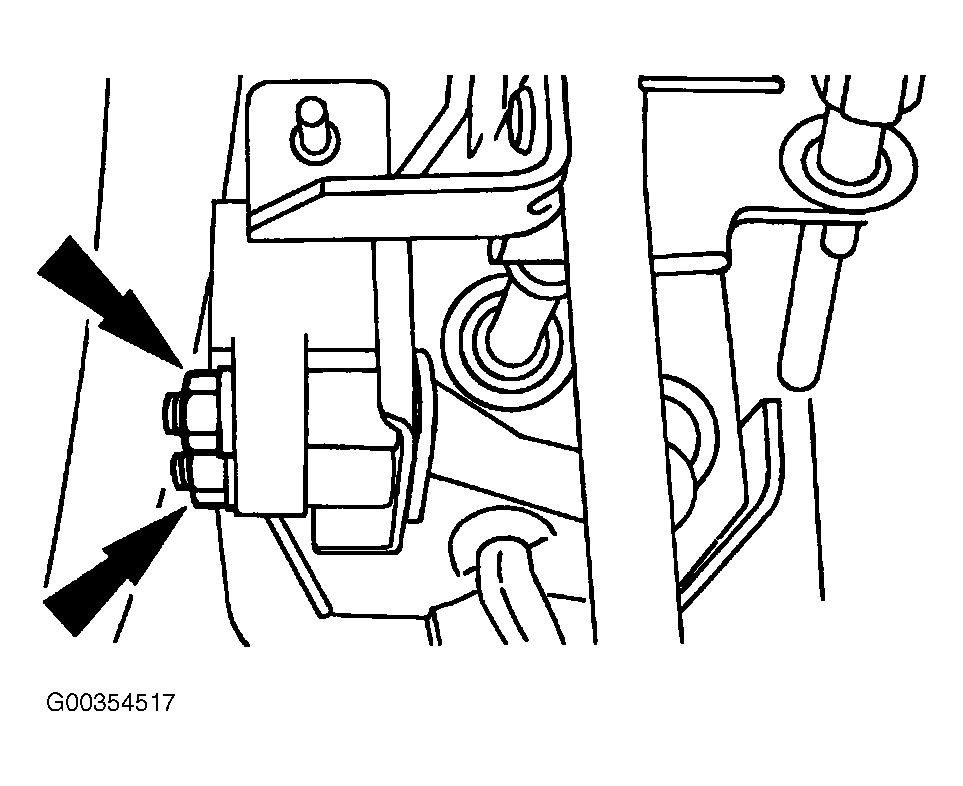

Fig 1: Identifying Clutch Start Switch Nuts
G00354517Courtesy of FORD MOTOR CO.
