Window Regulator - Front: Removal

  1. Remove the front door window glass (21410); refer to WINDOW GLASS-FRONT AND REAR DOOR .
  2. Remove the (A) five nuts and (B) one bolt to remove the front door window regulator (23200).

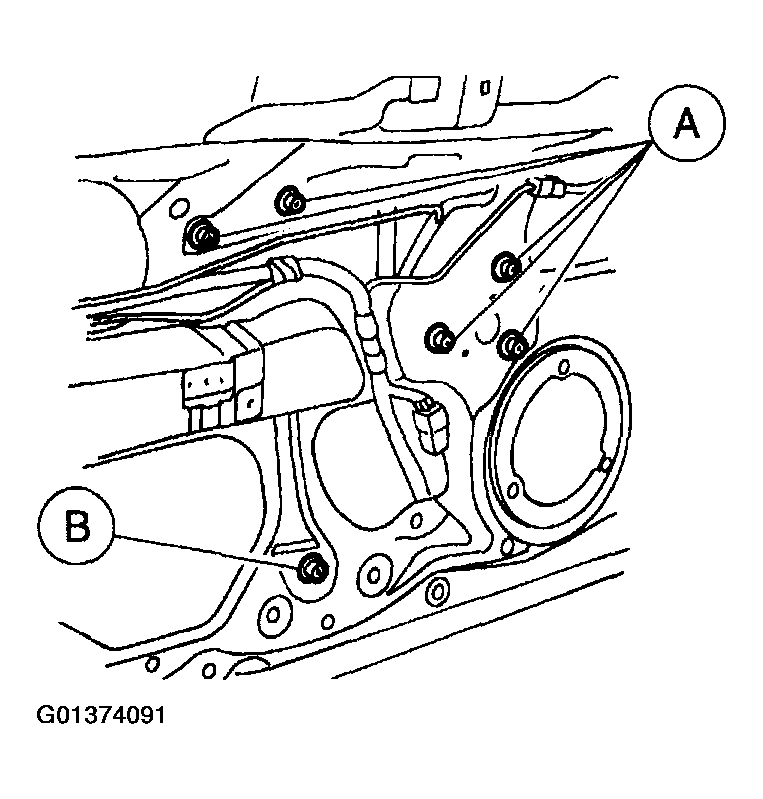

    Fig 1: Removing Front Door Window Regulator
    G01374091Courtesy of FORD MOTOR CO.
