Window Regulator Control Switch

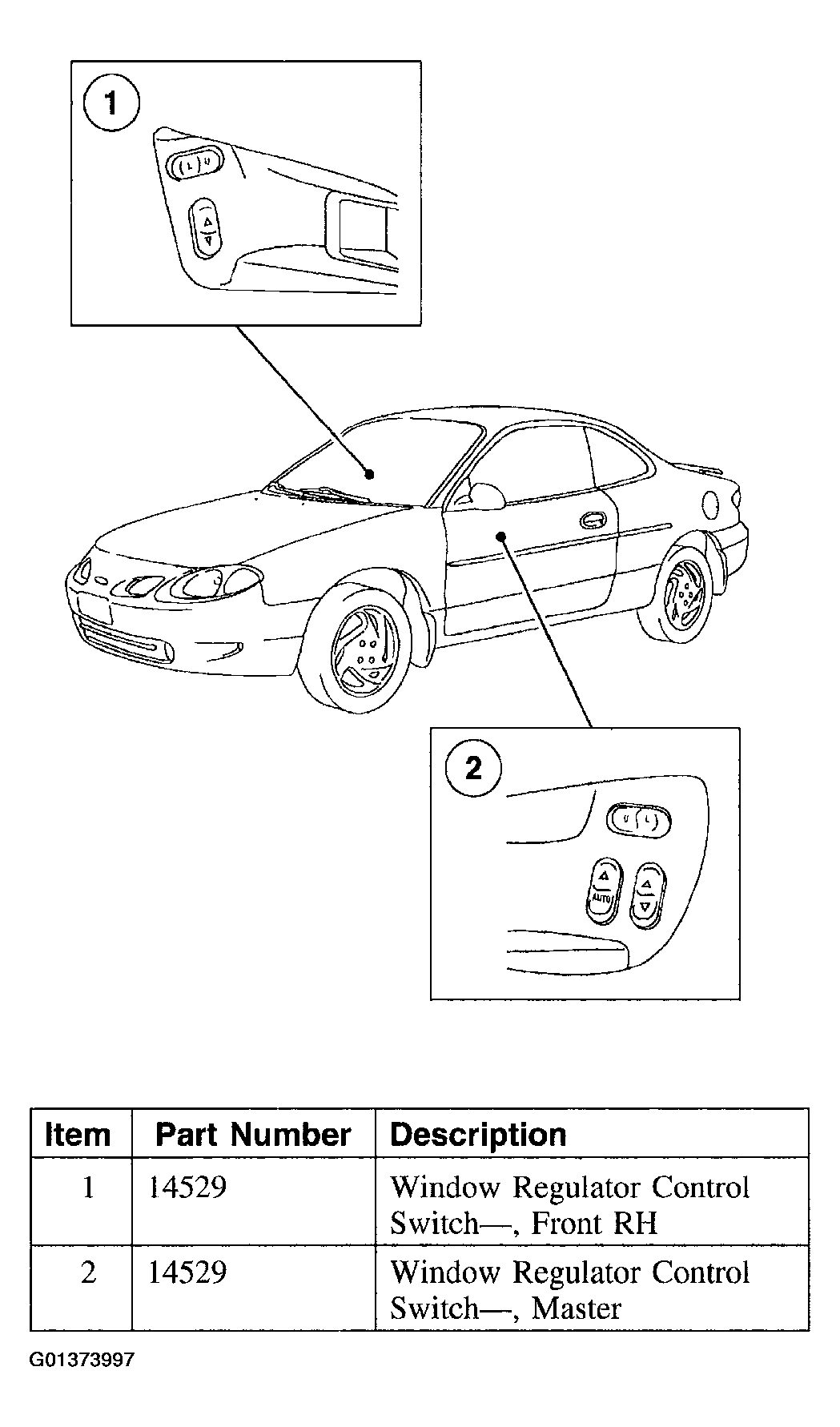

Fig 1: Identifying Window Regulator Control Switches - Coupe
G01373997Courtesy of FORD MOTOR CO.

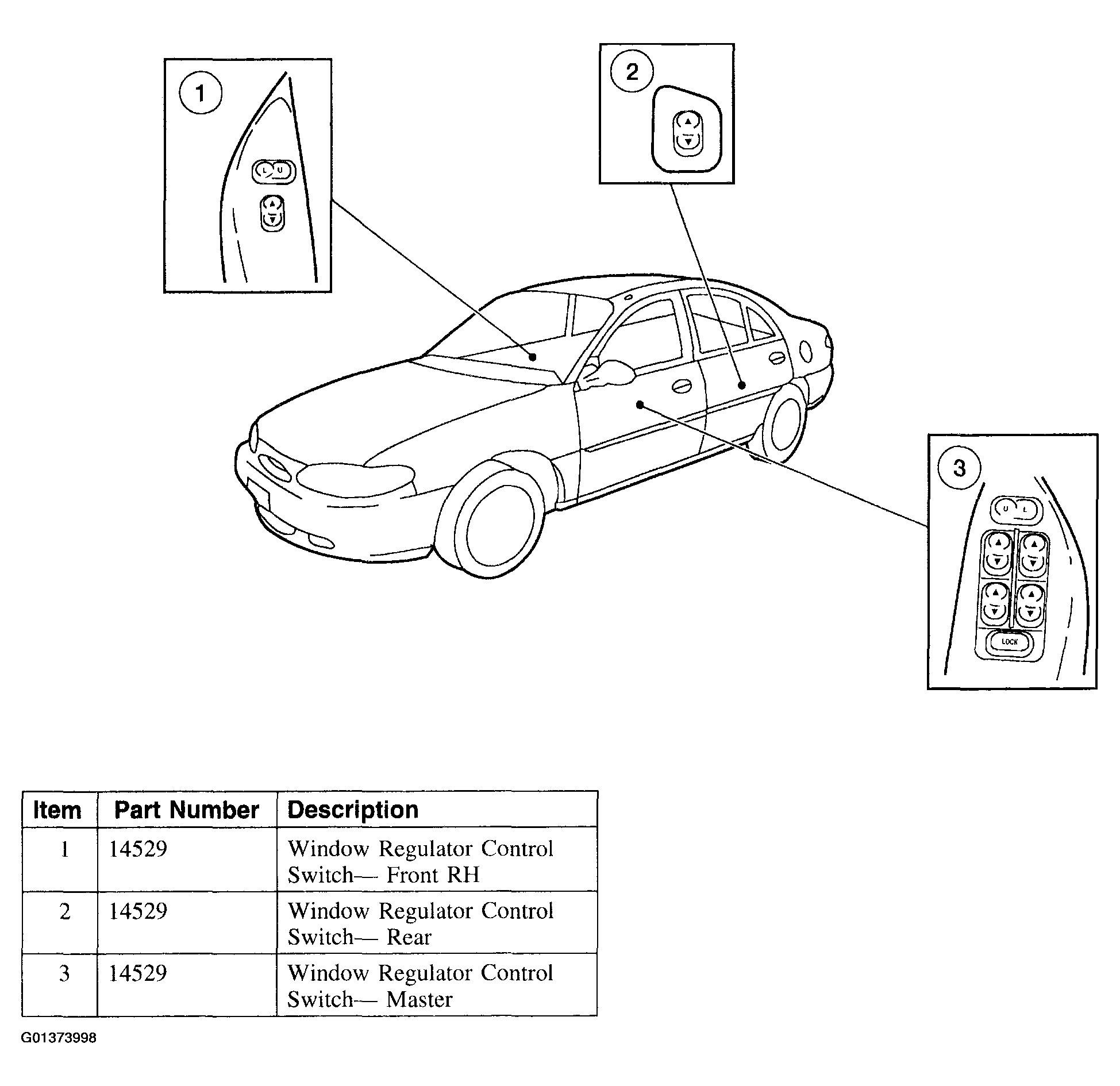

Fig 2: Identifying Window Regulator Control Switches - Sedan
G01373998Courtesy of FORD MOTOR CO.

The master window regulator control switch is located on the driver door armrest and can activate all power windows. The master window regulator control switch also features one-touch down (OTD) mode (driver power window only).
