Special Tool(s)

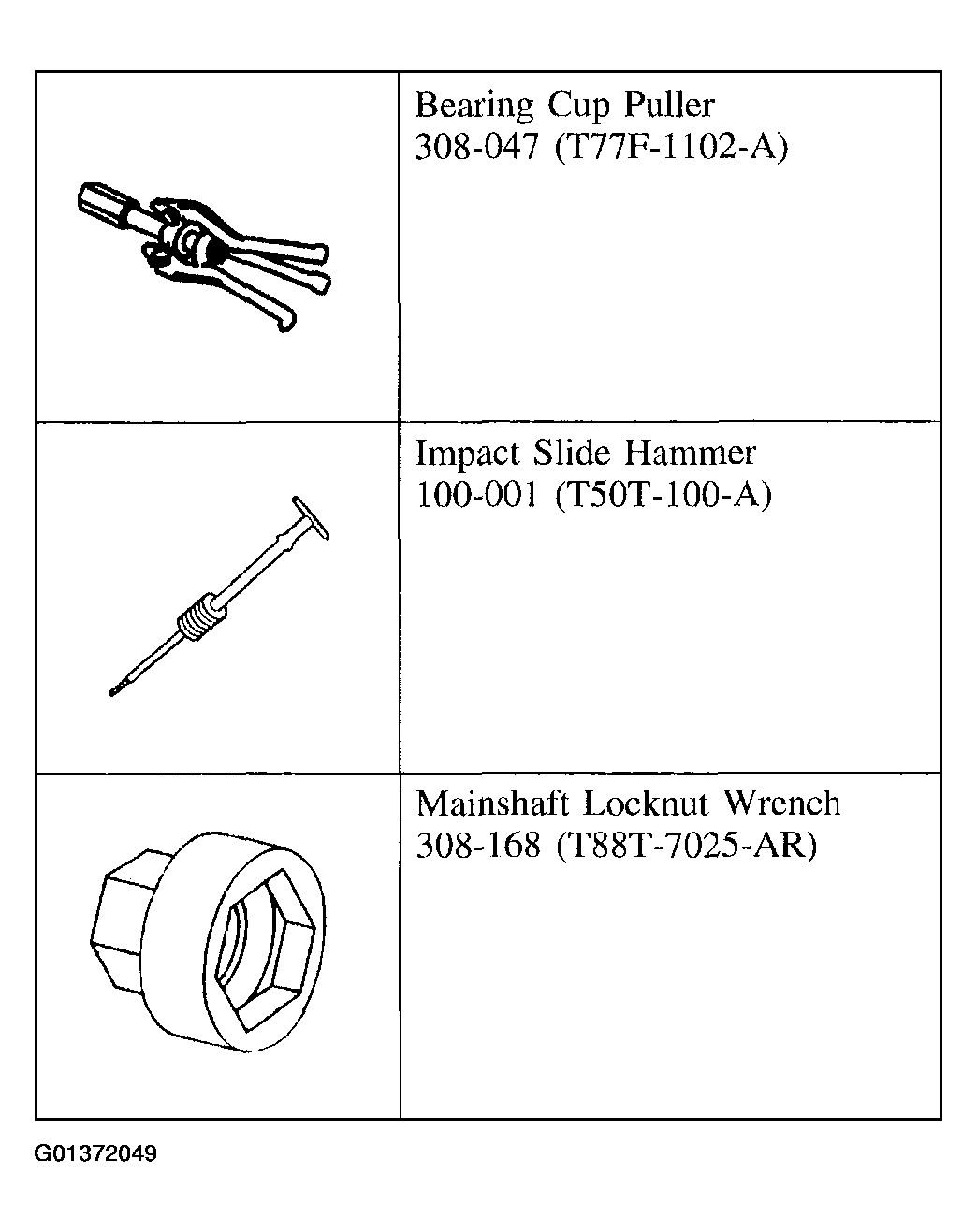

Fig 1: Identifying Special Tool(s) (1 Of 2)
G01372049Courtesy of FORD MOTOR CO.

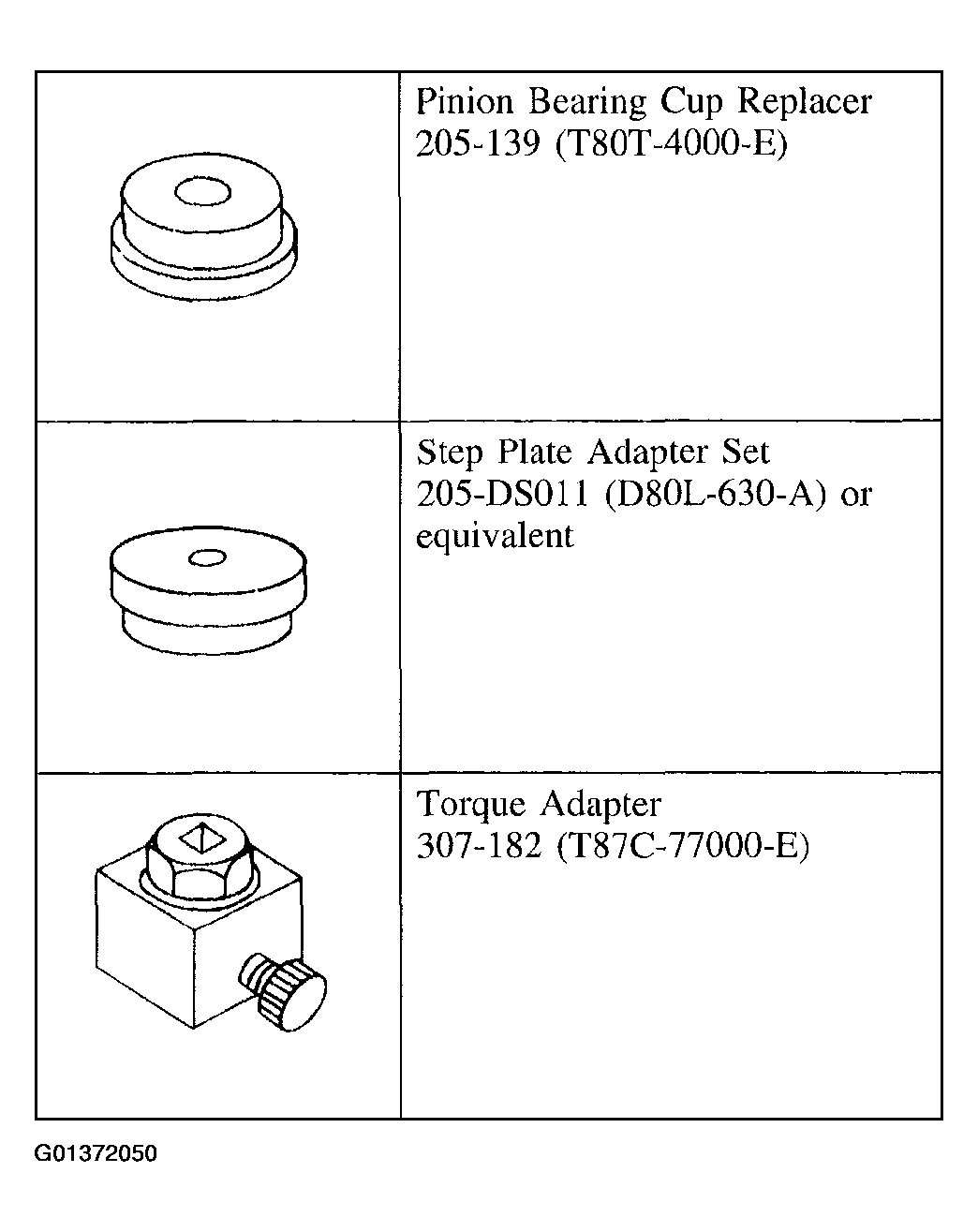

Fig 2: Identifying Special Tool(s) (2 Of 2)
G01372050Courtesy of FORD MOTOR CO.

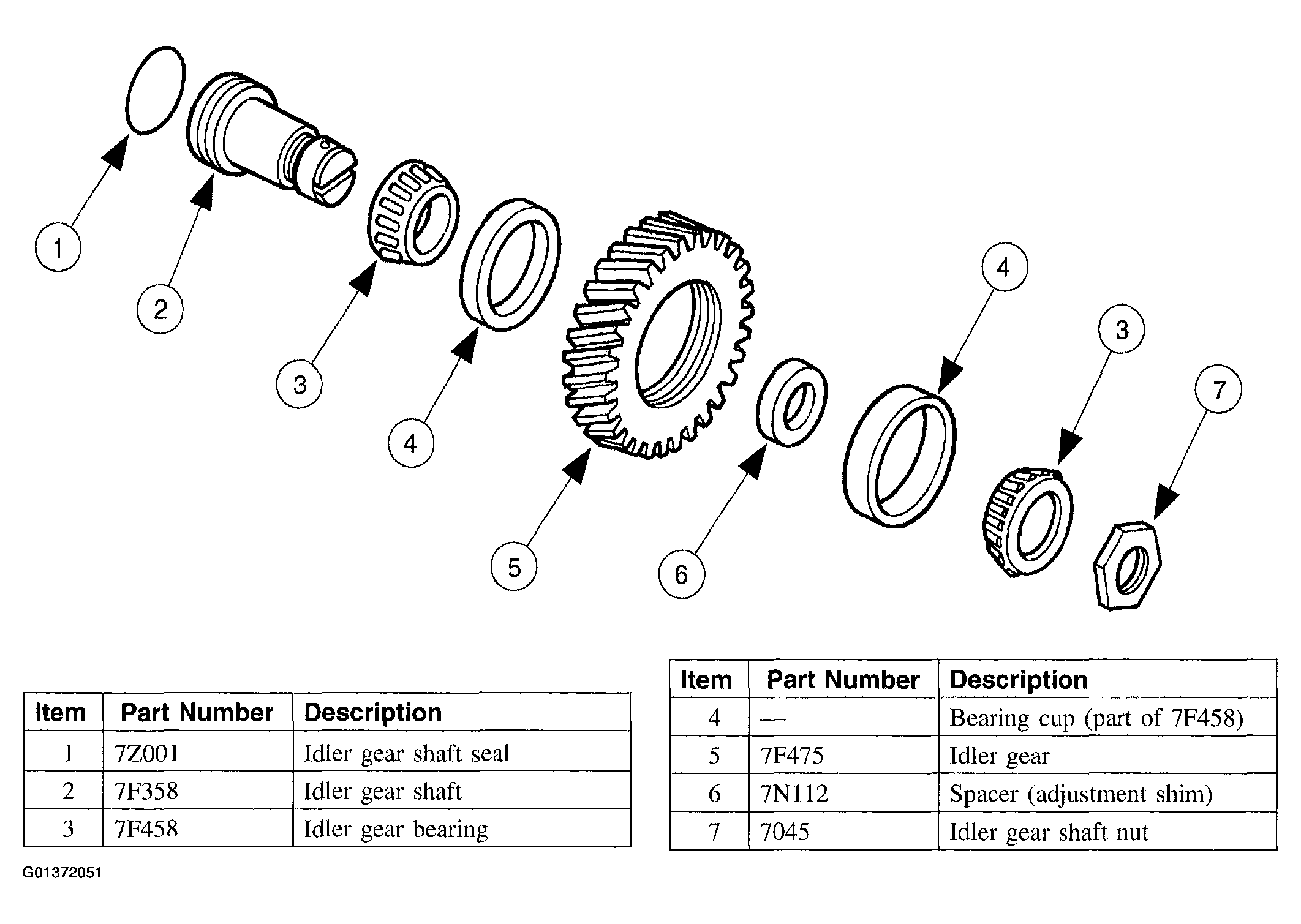

Fig 3: Exploded View Of Idler Gear
G01372051Courtesy of FORD MOTOR CO.
