Pulley - CII Pump: Installation

  1. Using the special tool, install the power steering pump pulley.

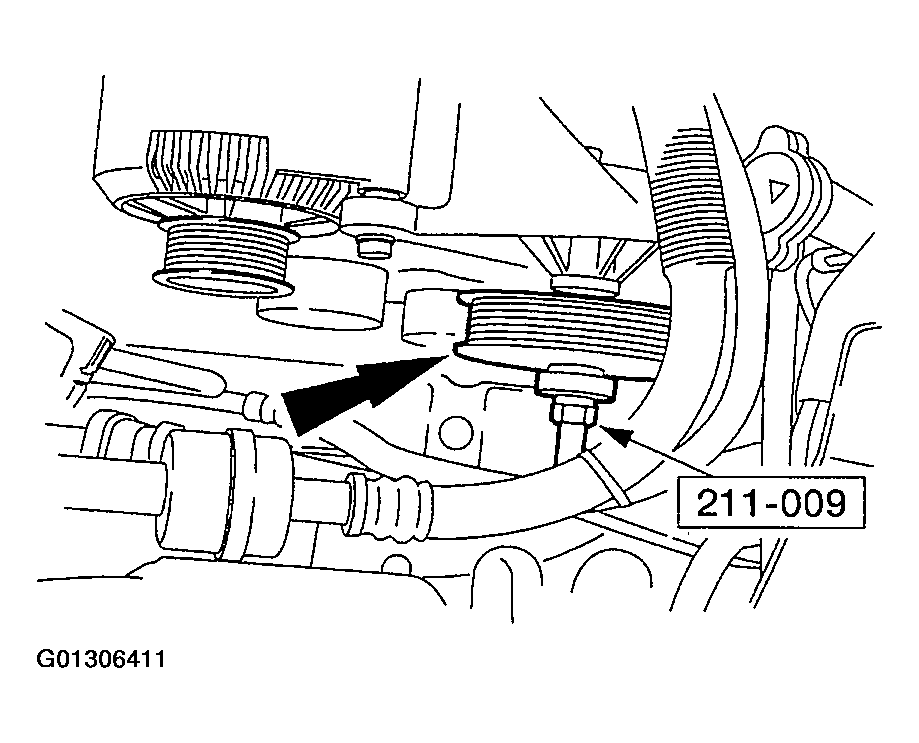

    Fig 1: Installing Power Steering Pump Pulley
    G01306411Courtesy of FORD MOTOR CO.
  2. Install the drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
