Removal and Installation

CAUTION: While servicing the power steering system, make sure to plug all open hoses, line fittings, and fluid ports to prevent the entry of contaminants or premature failure of the power steering components can result.

Refer to the System View illustration in Description and Operation for the hose routing and retention points.
When connecting a fitting with a seal ring, a new seal ring must be installed.
- The special tool is used to install the return line connector seal and the pressure line connector seal.

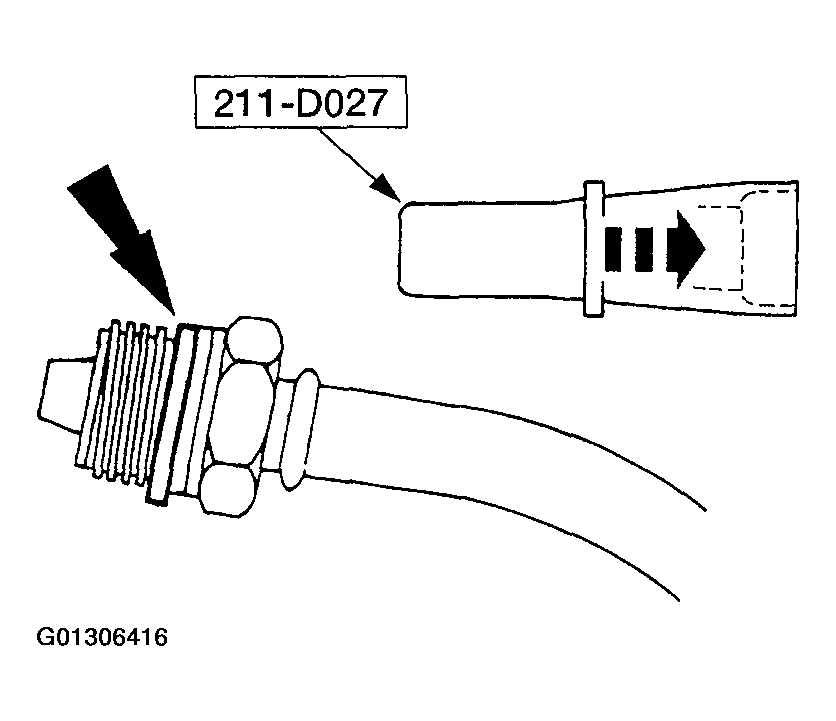

  Fig 1: Installing Return Line Connector Seal
  Courtesy of FORD MOTOR CO.
Fill, purge and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
