Home >> Ford >> 2003 >> Thunderbird >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle/Transmission >> Assembly >> Transmission >> Item 3: Manual Control Lever Seal Assembly Note

Item 3: Manual Control Lever Seal Assembly Note

  1. Using the special tool, install the manual control lever shaft seal and lubricate it with petroleum jelly.

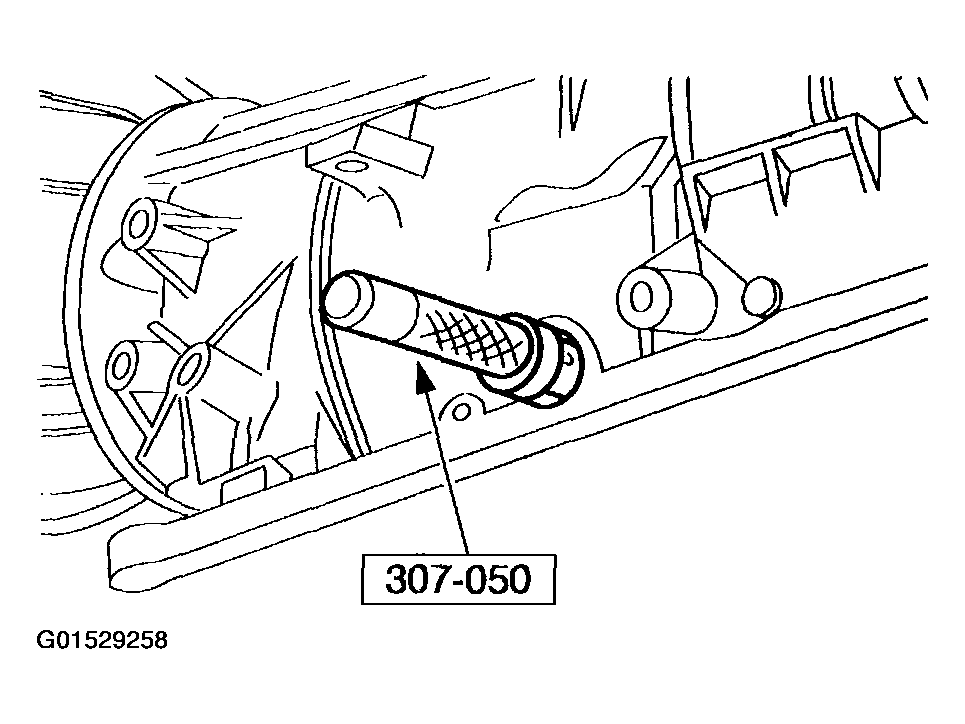

    Fig 1: Installing Manual Control Lever Shaft Seal
    G01529258Courtesy of FORD MOTOR CO.
