Exterior Rear View Mirror Switch
Exterior Rear View Mirror Switch

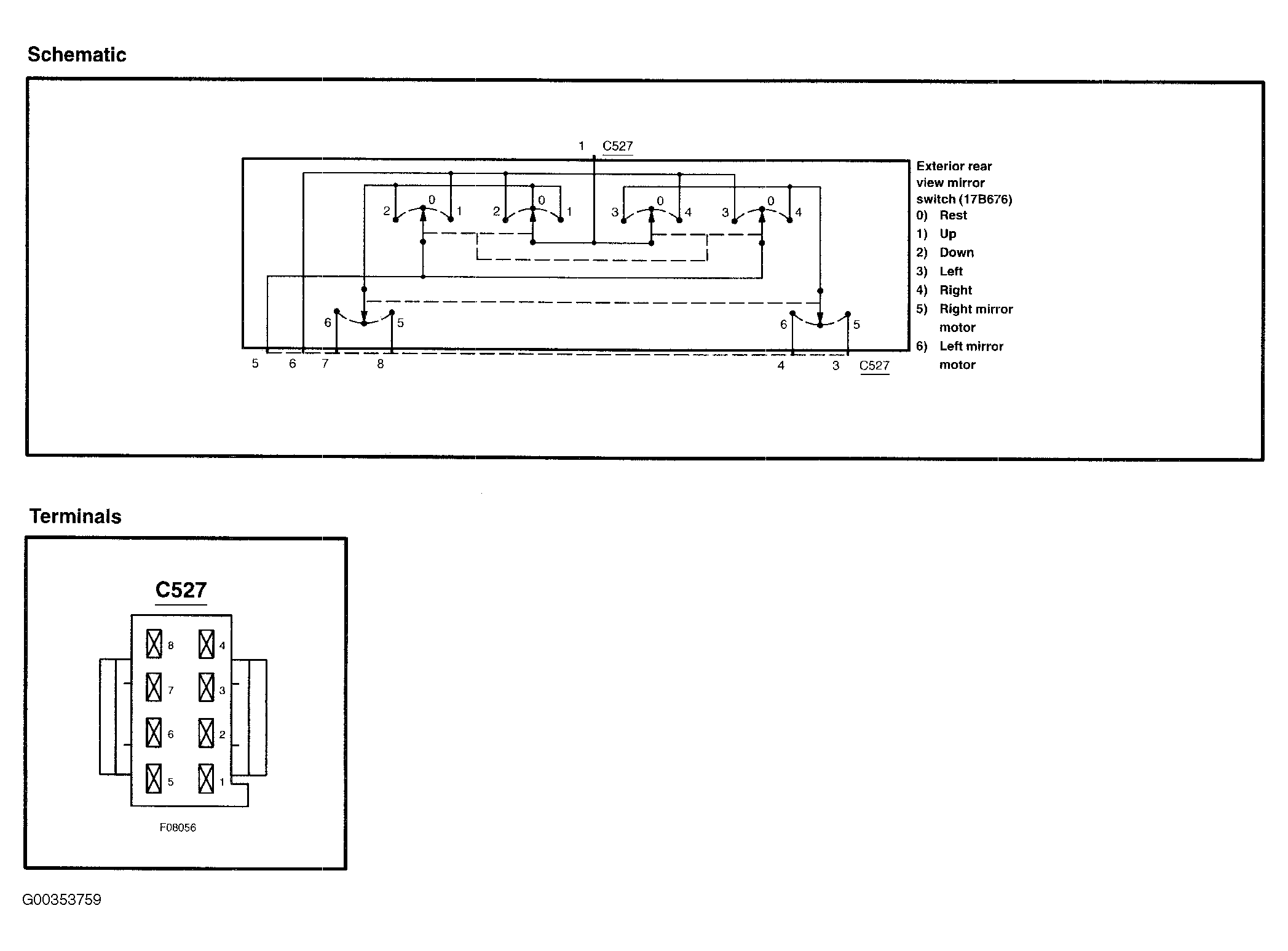

Fig 1: Testing Exterior Rear View Mirror Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

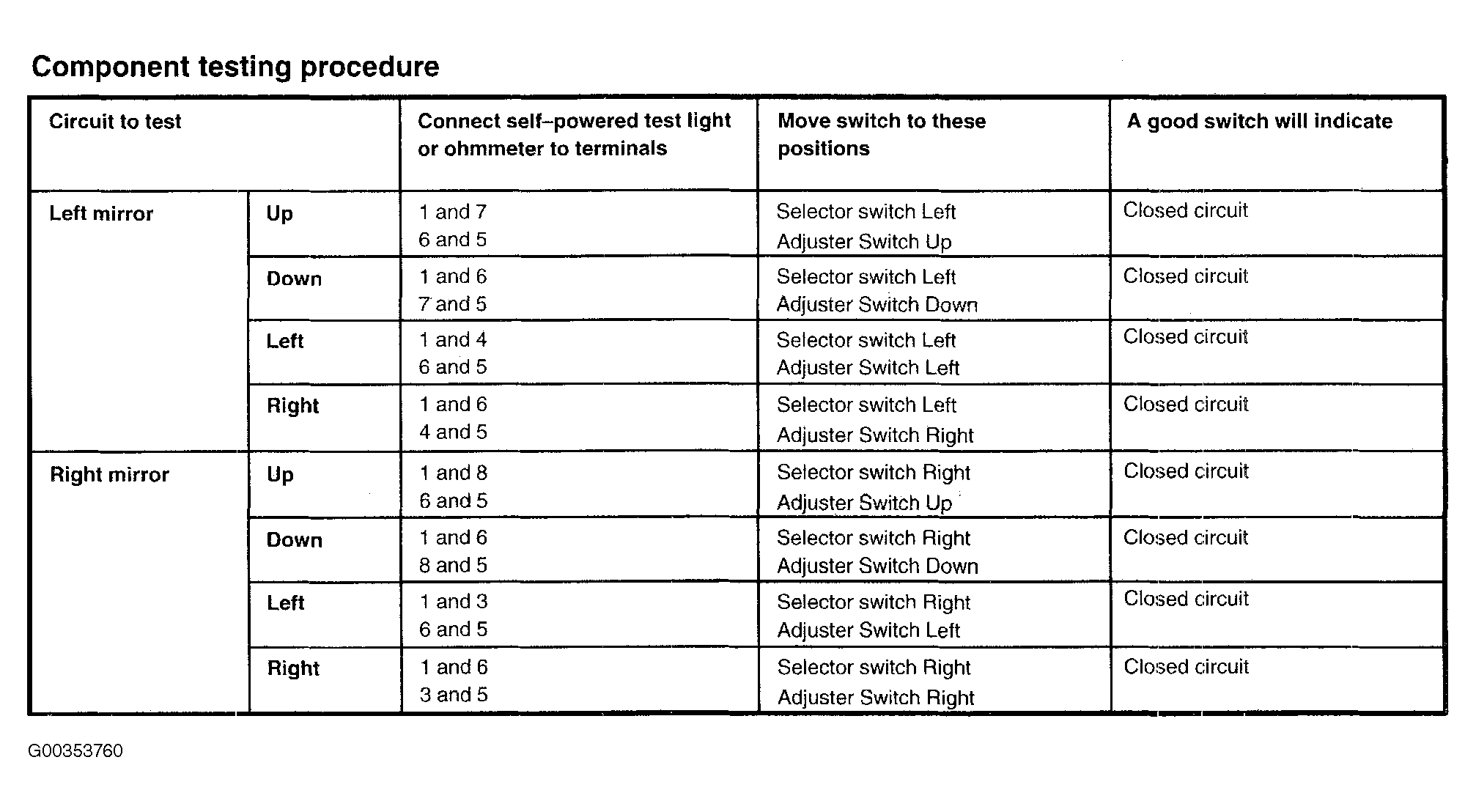

Fig 2: Testing Exterior Rear View Mirror Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
