Connecting Rod - Side Clearance

  1. Measure the clearance between the connecting rod and the crankshaft. Verify the measurement is within specification.
    • If out of specification, install new components as necessary.

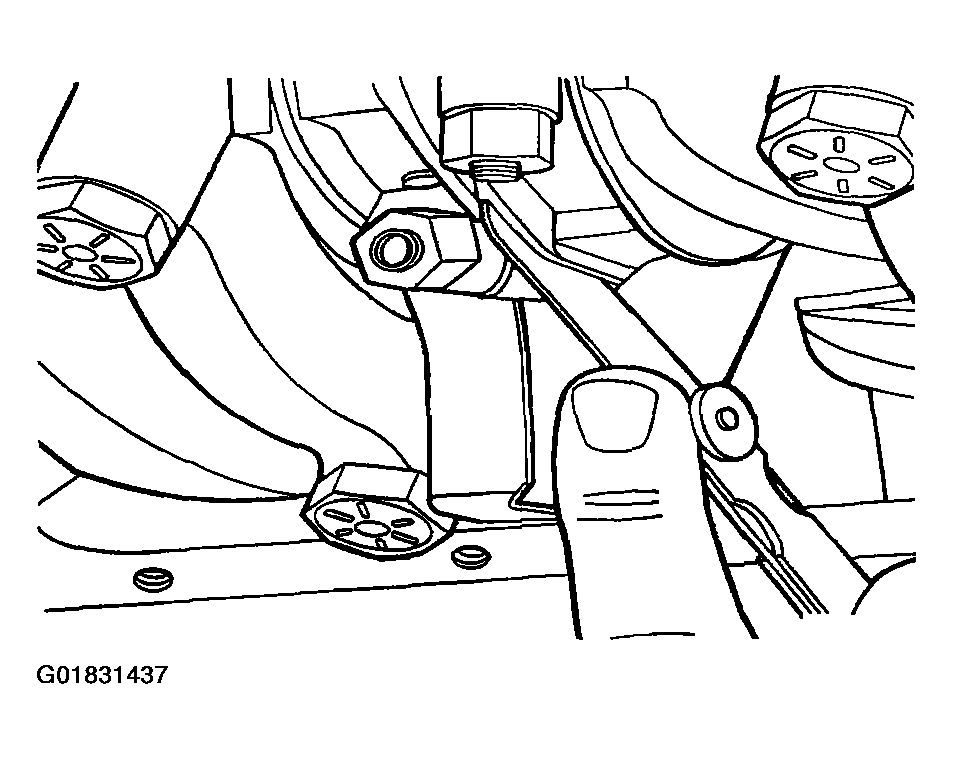

    Fig 1: Measuring Connecting Rod Side Clearance
    G01831437Courtesy of FORD MOTOR CO.
