Connecting Rod - Bushing Diameter

  1. Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
    • If out of specification, install new components as necessary.

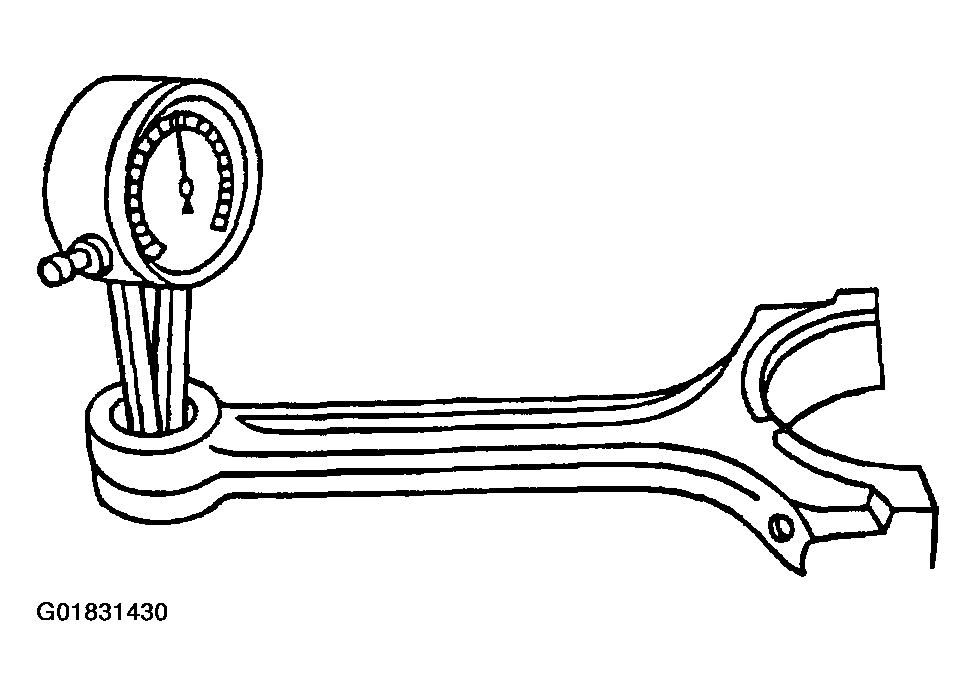

    Fig 1: Measuring Inner Diameter Of Connecting Rod Bushing
    G01831430Courtesy of FORD MOTOR CO.
