Intermediate Clutch Disassembled View

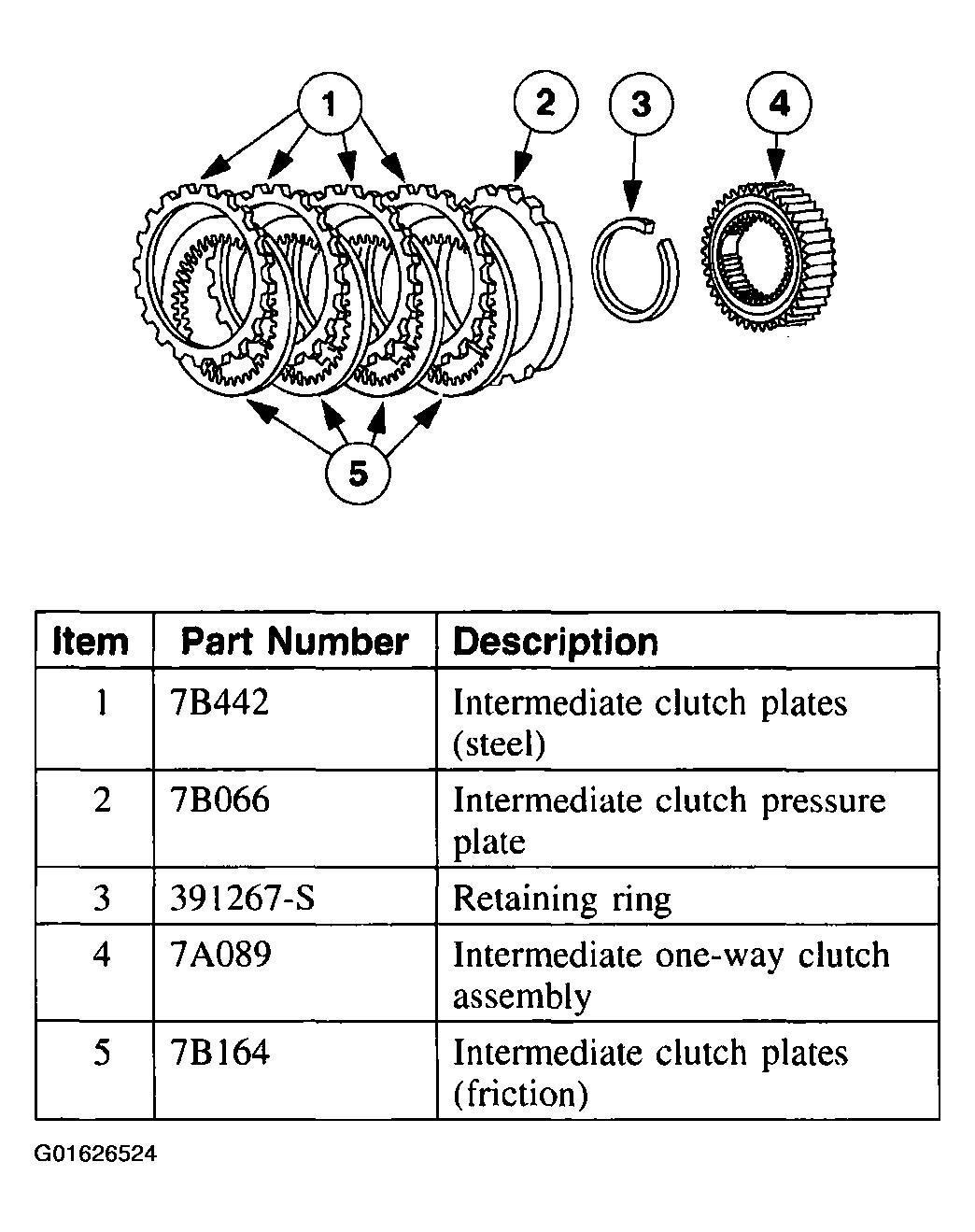

Fig 1: Exploded View Of Intermediate Clutch

Courtesy of FORD MOTOR CO.

The intermediate clutch works with the intermediate one-way clutch to hold the reverse sun gear stationary in second gear. The intermediate clutch remains applied in third and fourth gears, but does not transmit power.
