Valve Springs: Installation

    NOTE: Lubricate the parts with clean engine oil

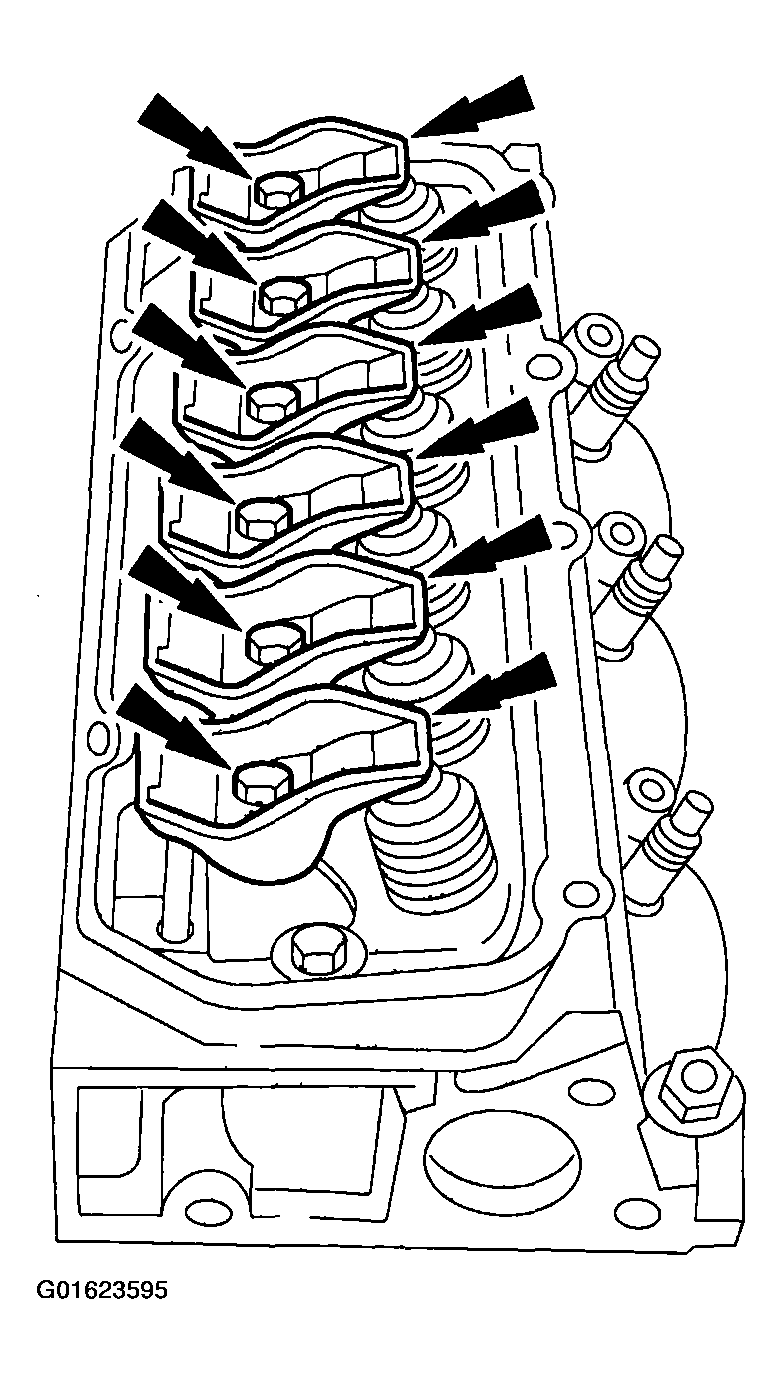

    Fig 1: Installing Rocker Arm Assembly
    G01623595Courtesy of FORD MOTOR CO.
  1. To install reverse the removal procedure. Tighten the rocker arm bolts in two stages.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten to 35 Nm (26 lb-ft).
