Section 4 (Automatic Transmission)
>>
Description And Operation
>>
Transaxle Description
>>
Case Assembly
Case Assembly
WARNING:
This page is about a different variant/trim than selected.

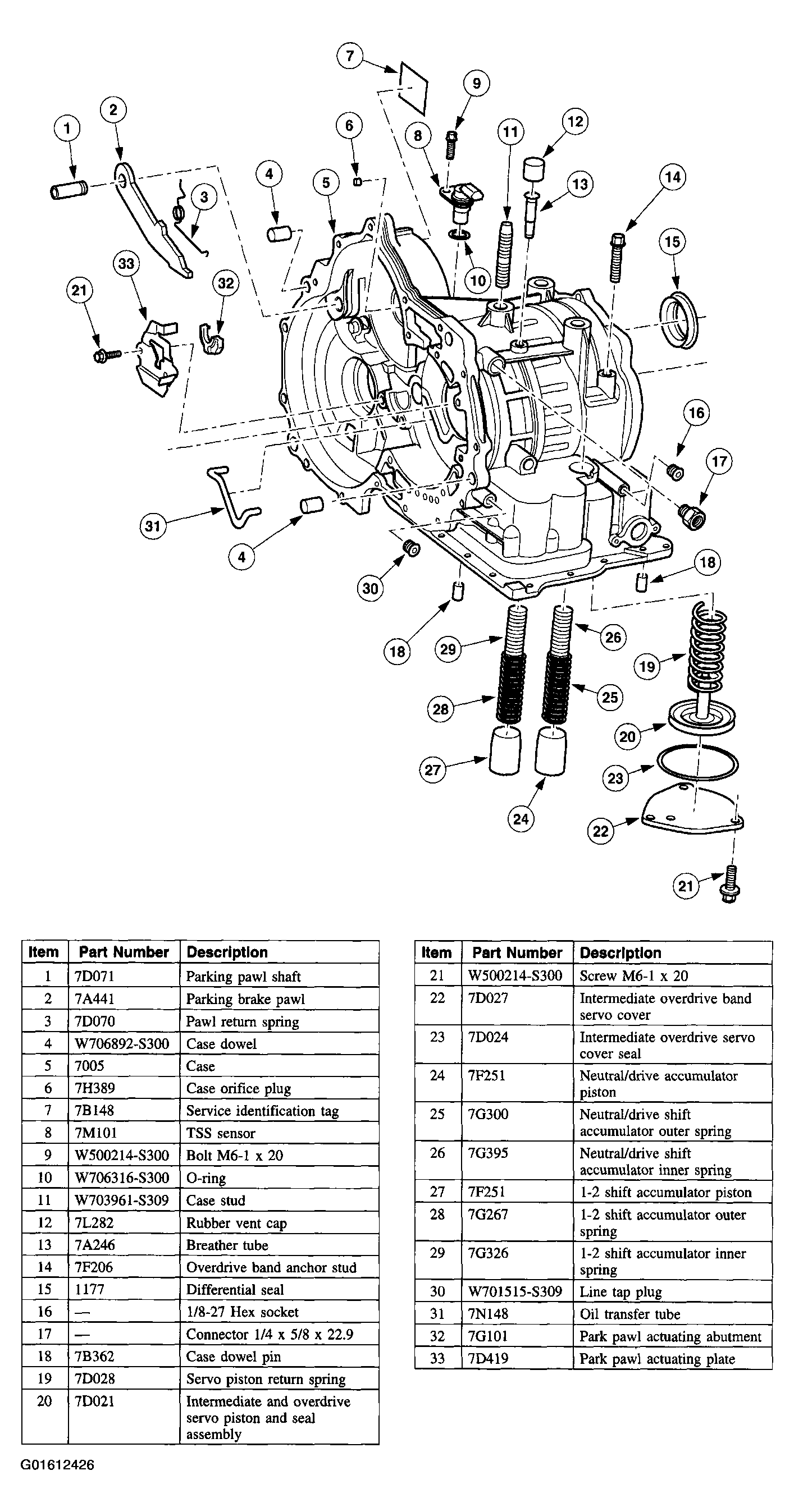

Fig 1: Identifying Components Of Case Assembly
Courtesy of FORD MOTOR CO.
