Fill Procedure: Procedure

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Remove the fill plug.

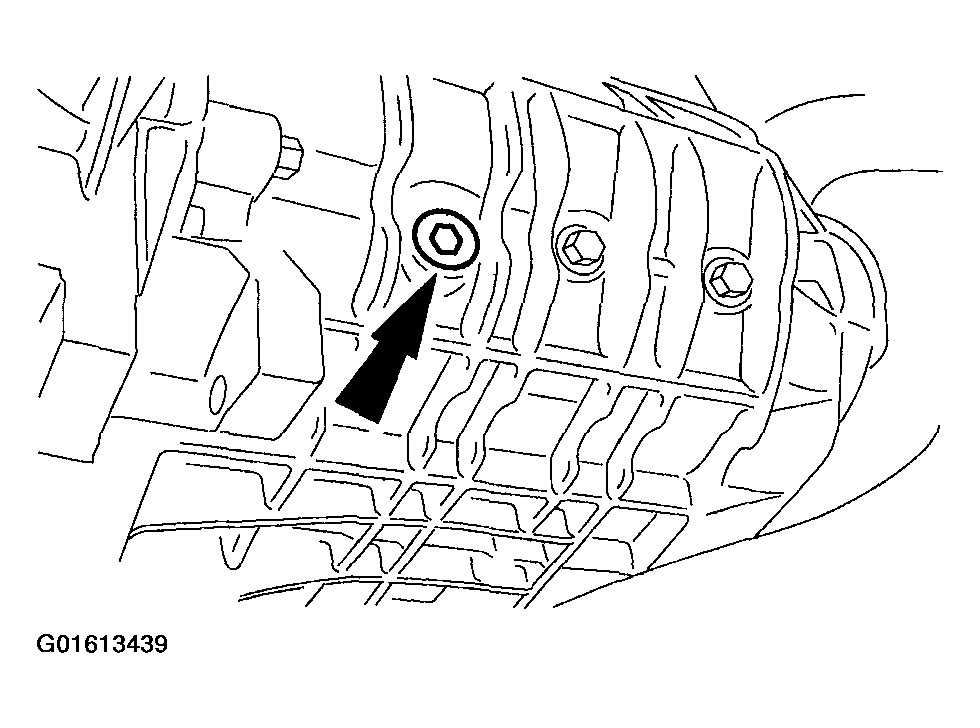

Fig 1: Removing Fill Plug
Courtesy of FORD MOTOR CO.
Fill the transaxle to 0-5mm below the lower edge of the filler plug bore.
- Fill with manual transmission fluid.

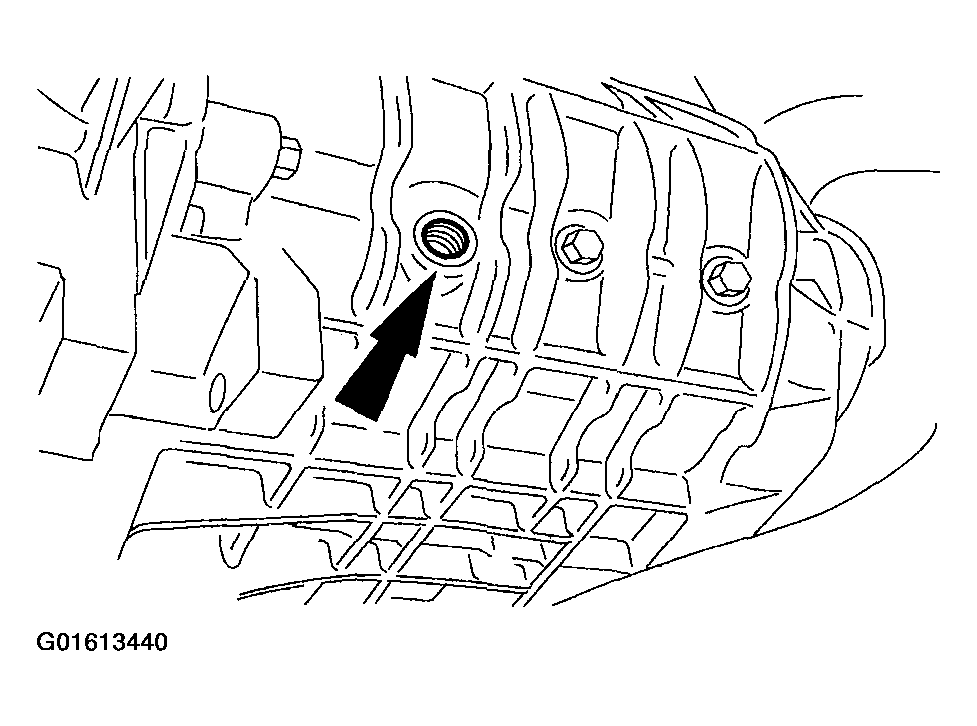

  Fig 2: Identifying Fill Level
  Courtesy of FORD MOTOR CO.
Install the fill plug.

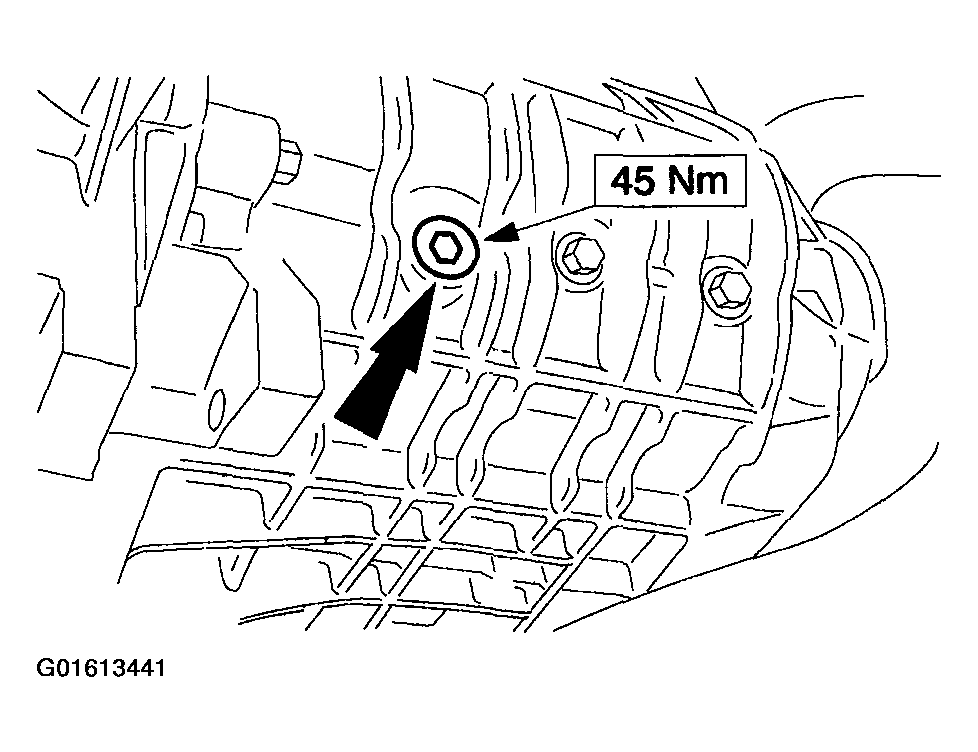

Fig 3: Installing Fill Plug
Courtesy of FORD MOTOR CO.
Lower the vehicle.
