Disassembly And Assembly Of Subassemblies: Differential: Disassembly

WARNING: This page is about a different variant/trim than selected.

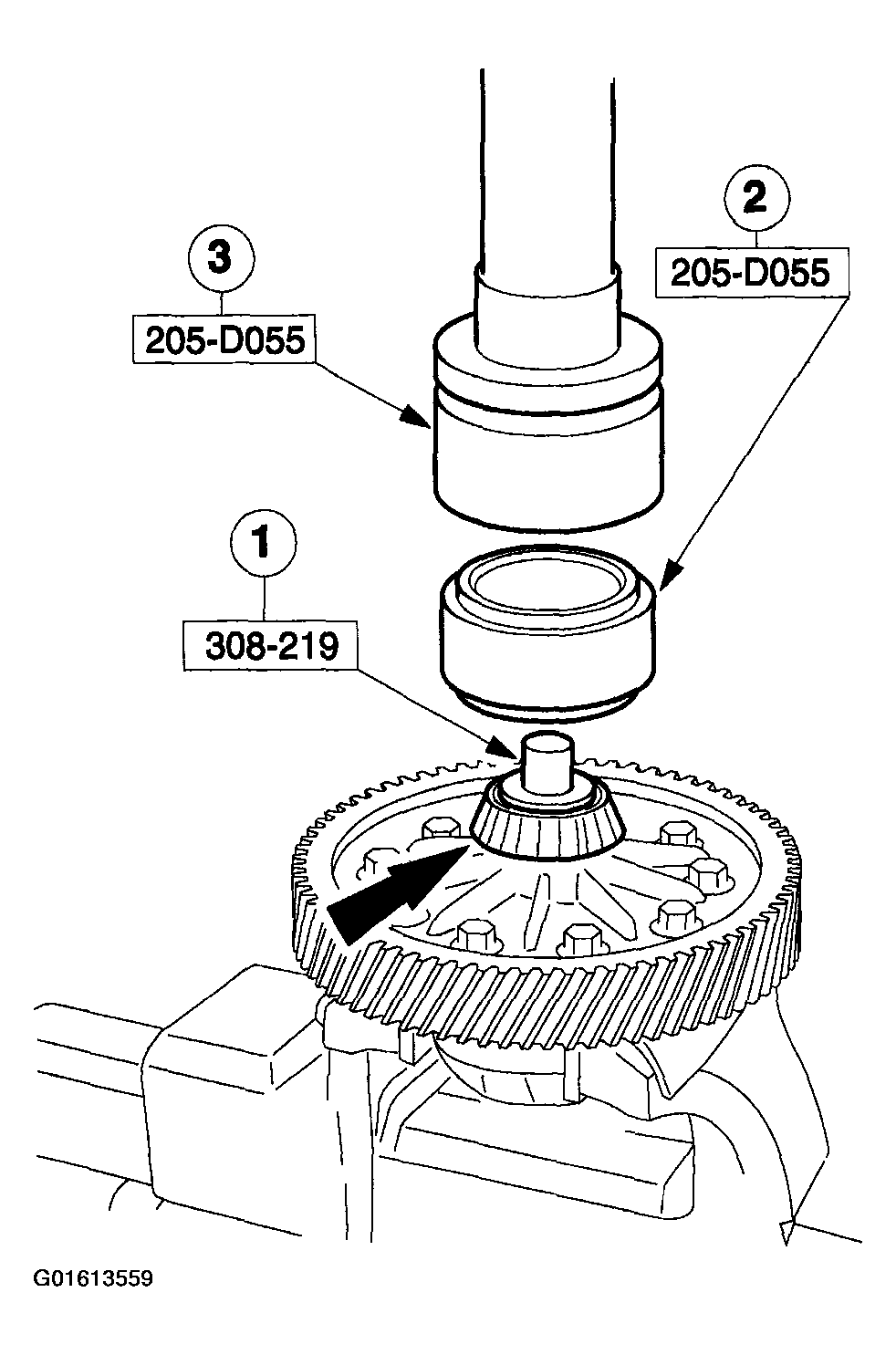

Install the special tools.
1. Install the thrust element.
2. Insert the tapered insert
3. Install the basic tool.
Fig 1: Installing Special Tools
Courtesy of FORD MOTOR CO.

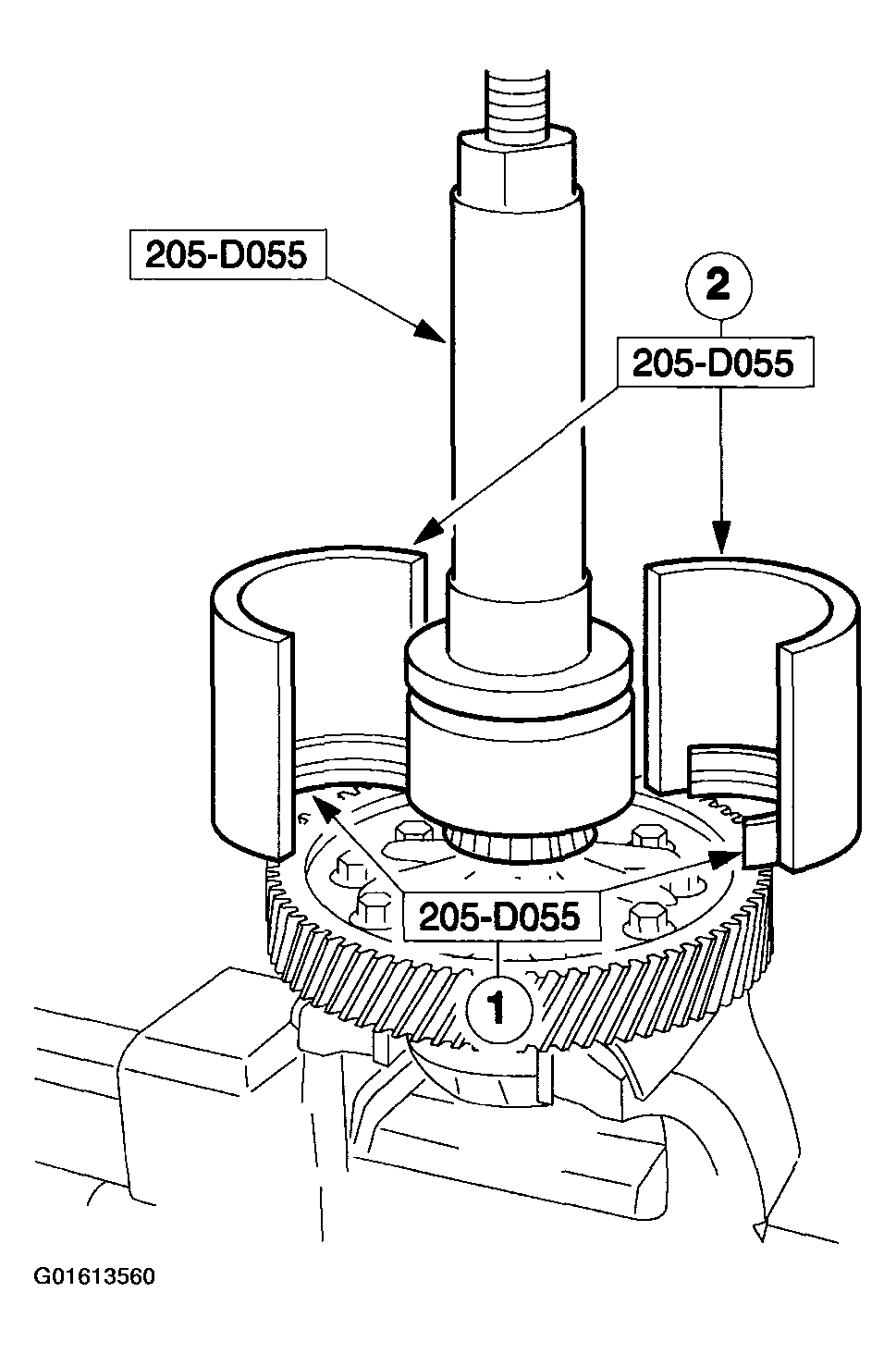

Install the special tools.
- Install the half shells of the insert.
- Install the half shells to the basic tool.

  Fig 2: Installing Half Shells To Basic Tool
  Courtesy of FORD MOTOR CO.

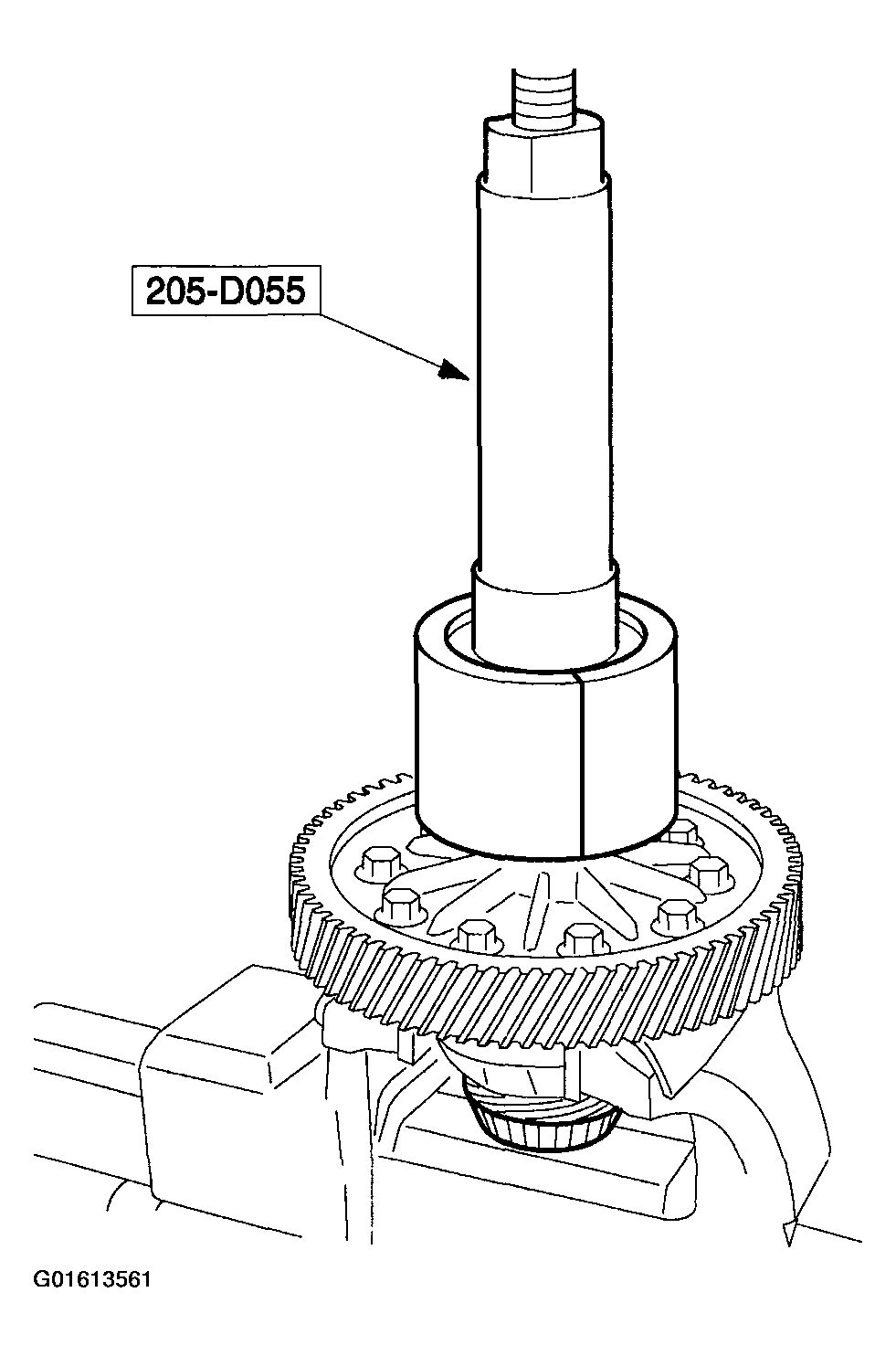

Using the special tools, preload the bearing and remove it.

Fig 3: Preloading/Removing Bearing
Courtesy of FORD MOTOR CO.
Repeat sub-operations to for the other taper roller bearing.

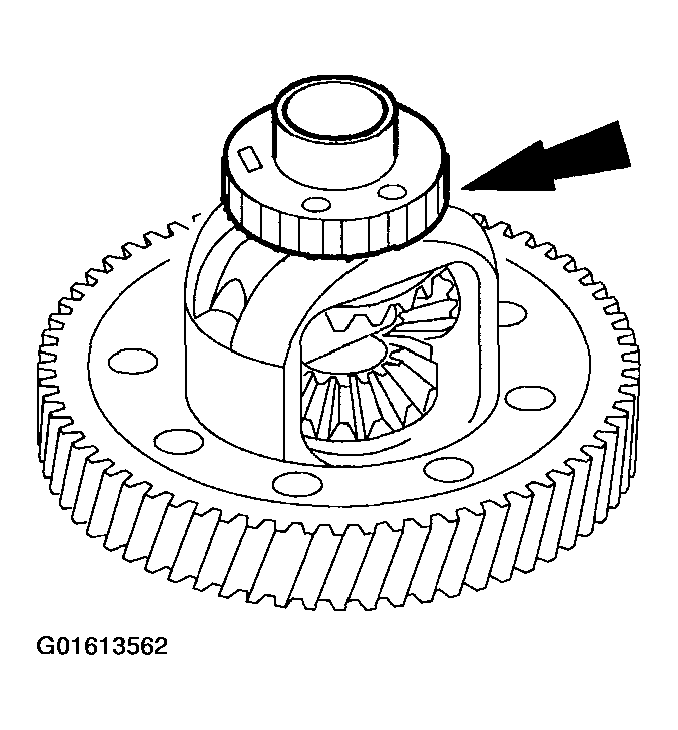

Remove the trigger wheel.

Fig 4: Removing Trigger Wheel
Courtesy of FORD MOTOR CO.

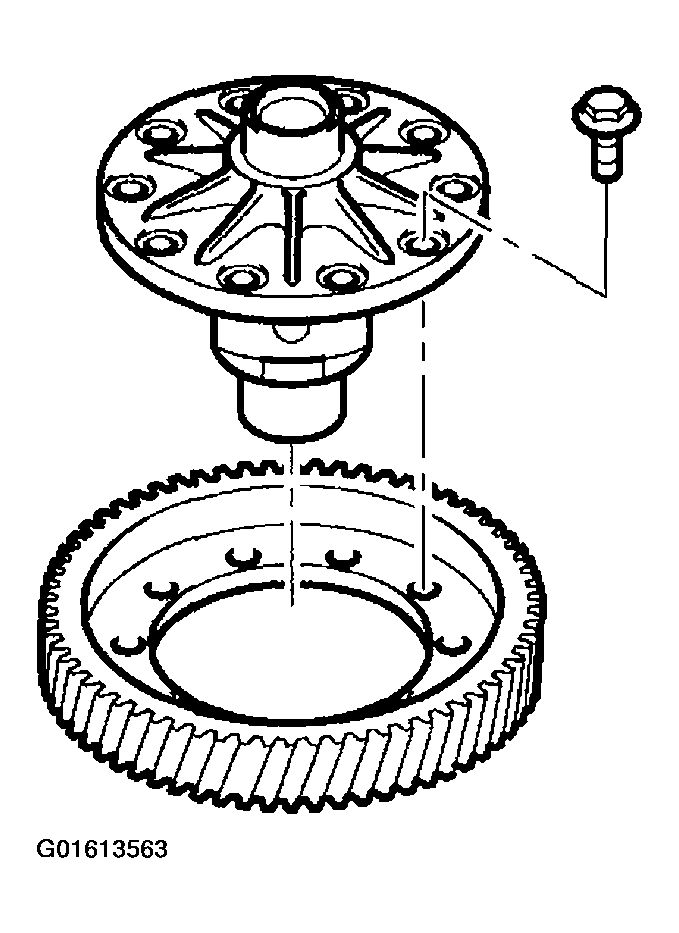

Remove the gear.
- Unscrew the bolts.
- Remove the gear by tapping lightly on it.

  Fig 5: Removing Gear
  Courtesy of FORD MOTOR CO.
