Camshaft Lobe Lift

  1. Determine the cam lift.
    • Using a micrometer measure the cam in two directions.
    • The difference between the two measurements is the cam lift.

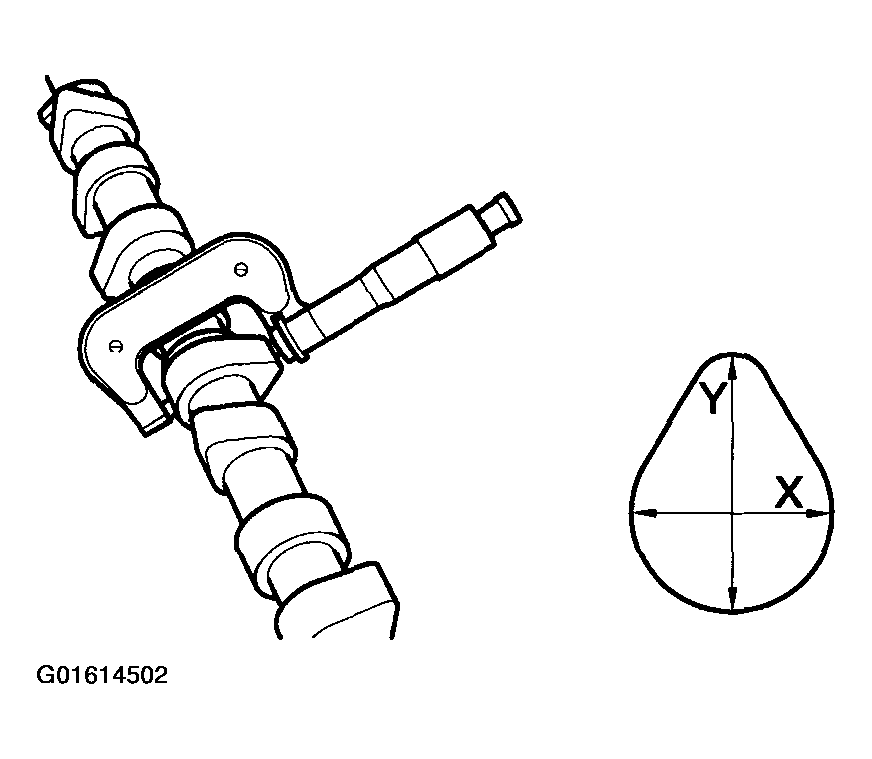

      Fig 1: Determining Cam Lift
      G01614502Courtesy of FORD MOTOR CO.
