Rear Seat Backrest: Assembly

  1. To assemble, reverse the disassembly procedure.

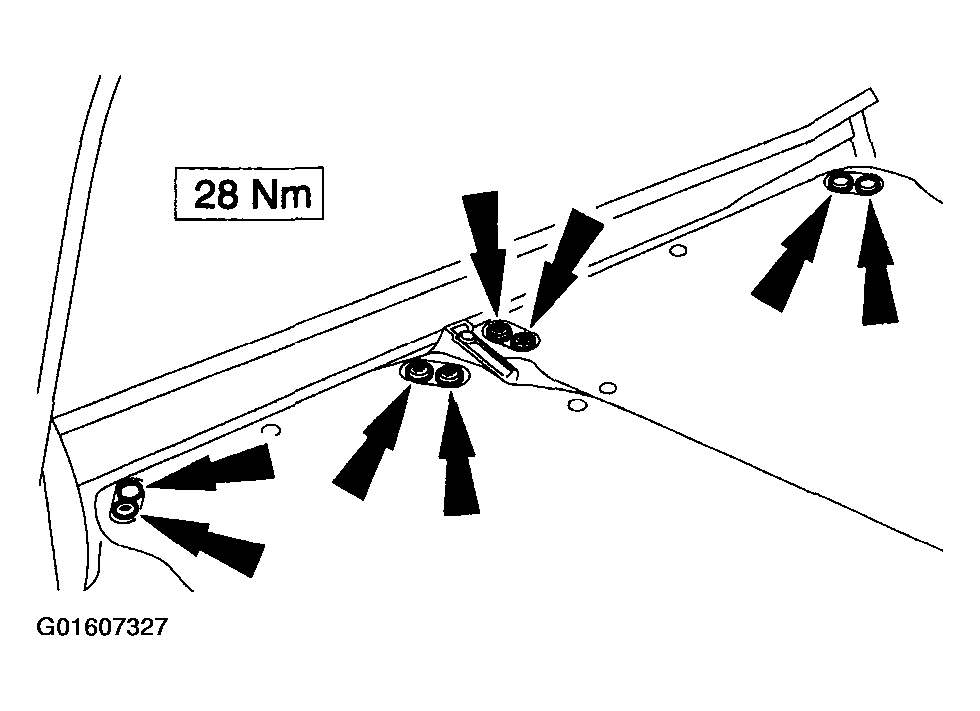

    Fig 1: Identifying Rear Seat Backrest
    G01607327Courtesy of FORD MOTOR CO.

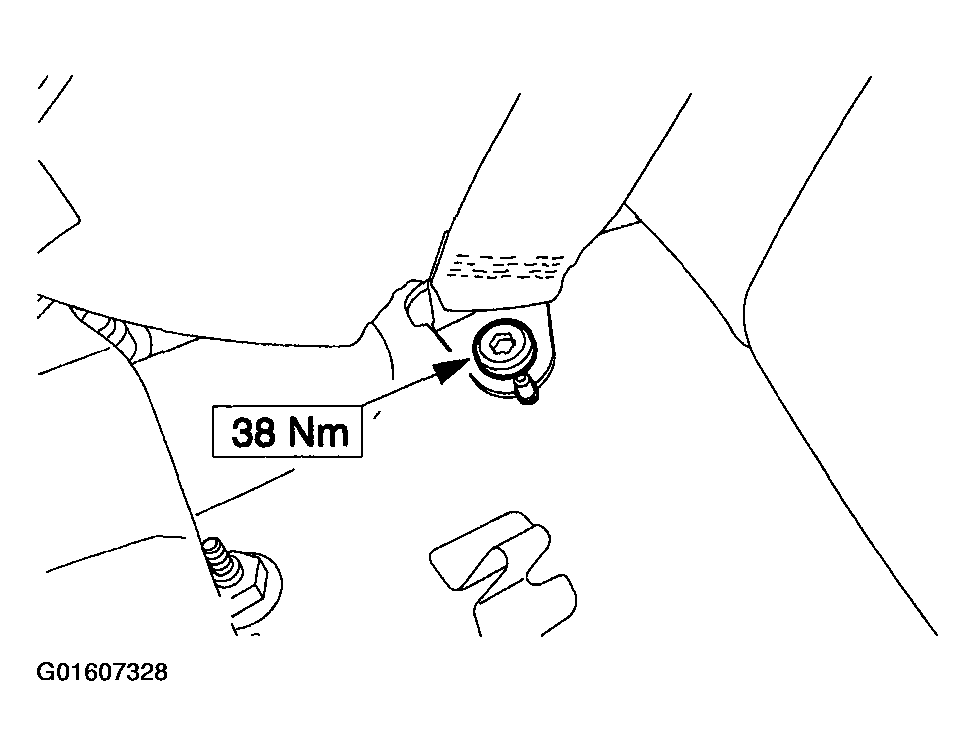

    Fig 2: Installing Outer Safety Belt Anchor
    G01607328Courtesy of FORD MOTOR CO.

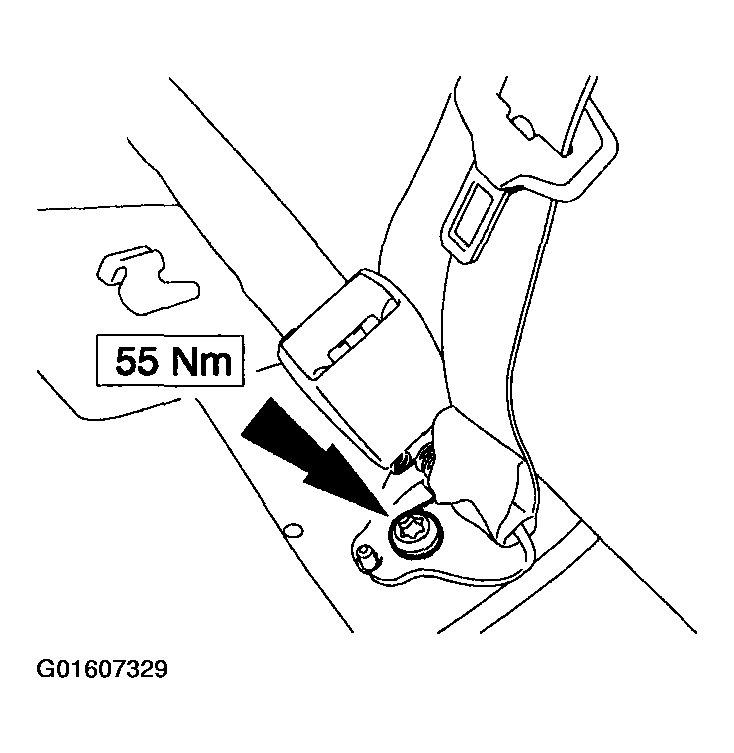

    Fig 3: Installing Center Rear Safety Belt Lower Anchor
    G01607329Courtesy of FORD MOTOR CO.
