Disassembled Views

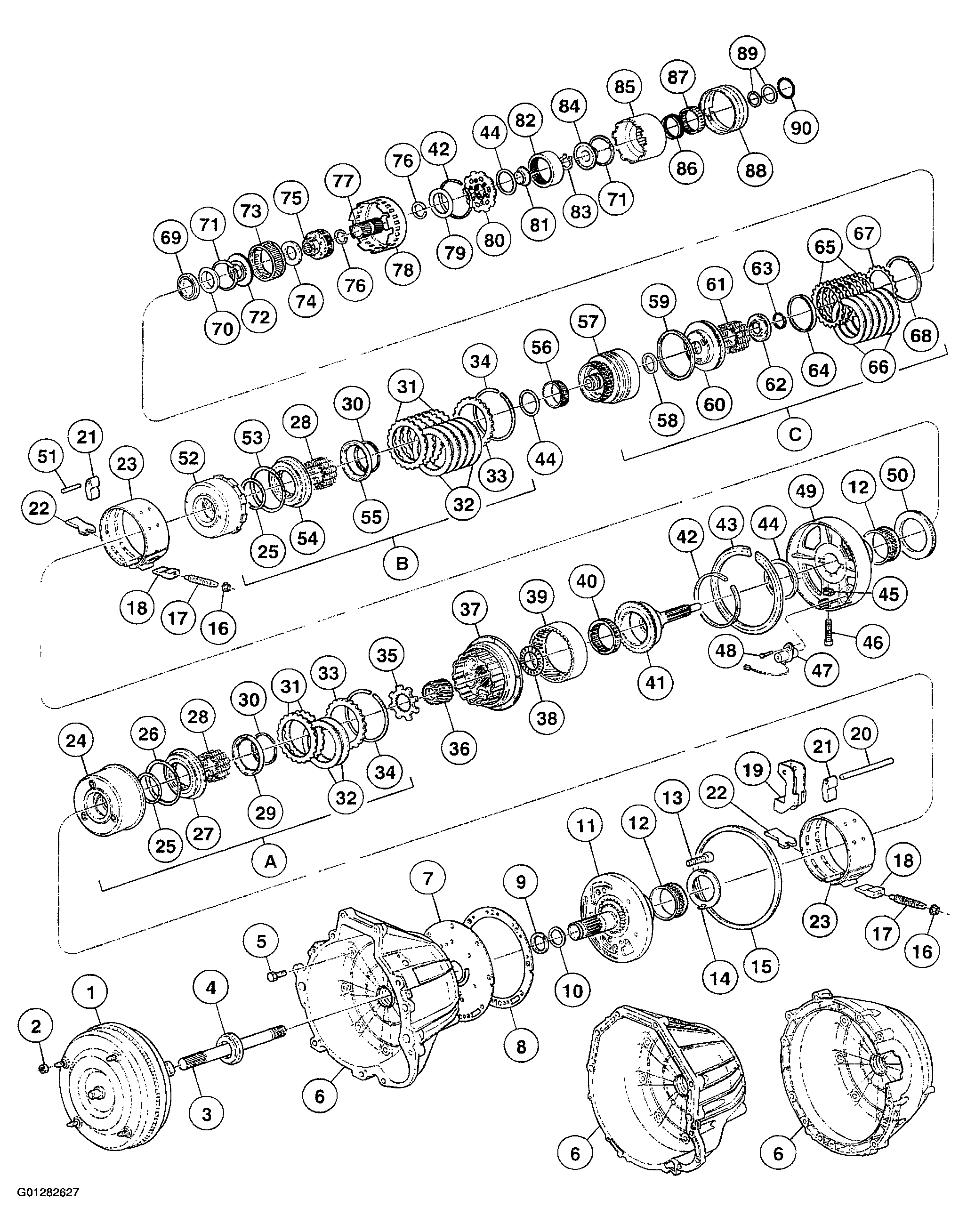

Fig 1: Exploded View Of Automatic Transmission (1 Of 2)

Courtesy of FORD MOTOR CO.

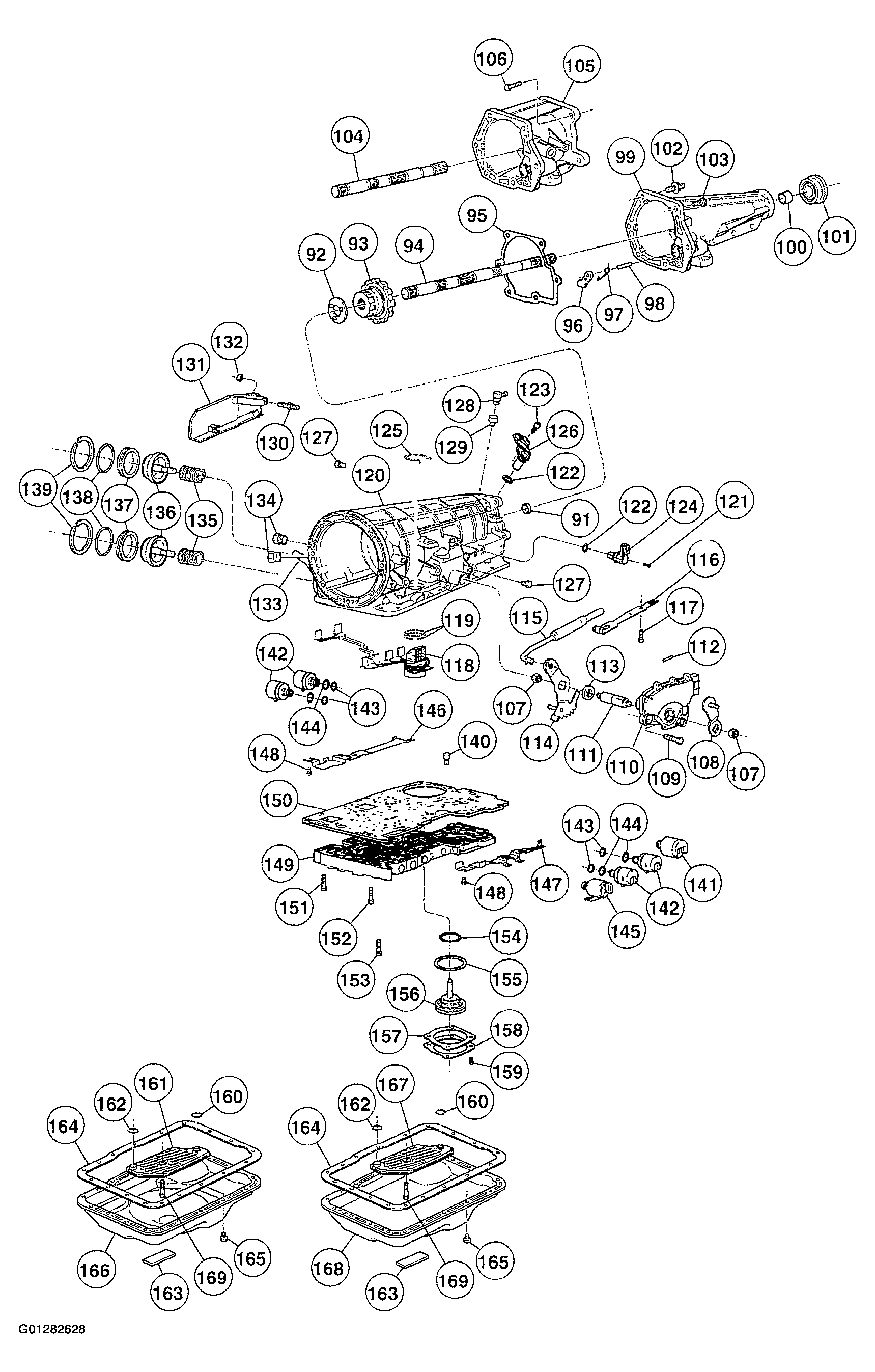

Fig 2: Exploded View Of Automatic Transmission (2 Of 2)

Courtesy of FORD MOTOR CO.

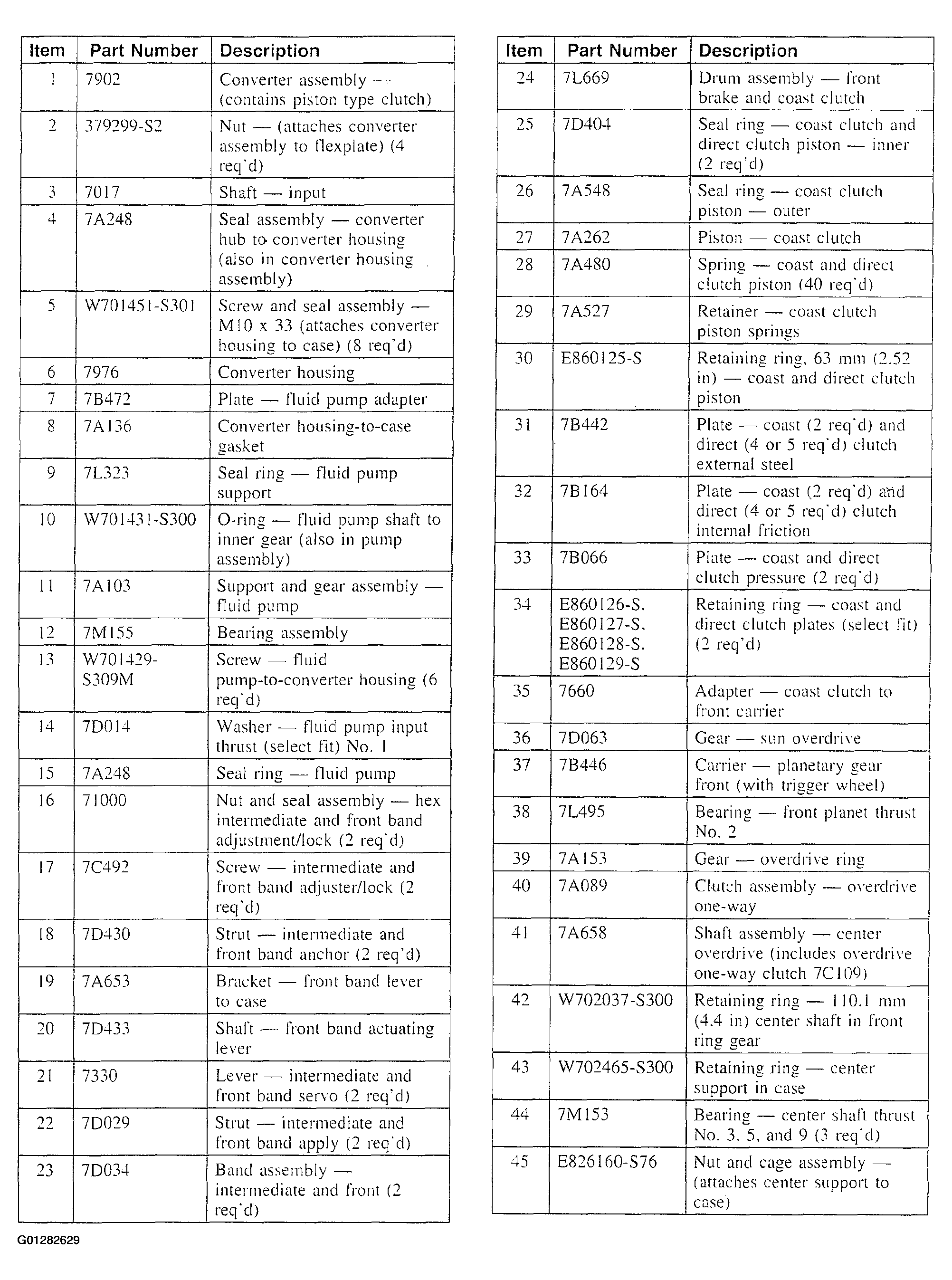

Fig 3: Description Table (1 Of 4)

Courtesy of FORD MOTOR CO.

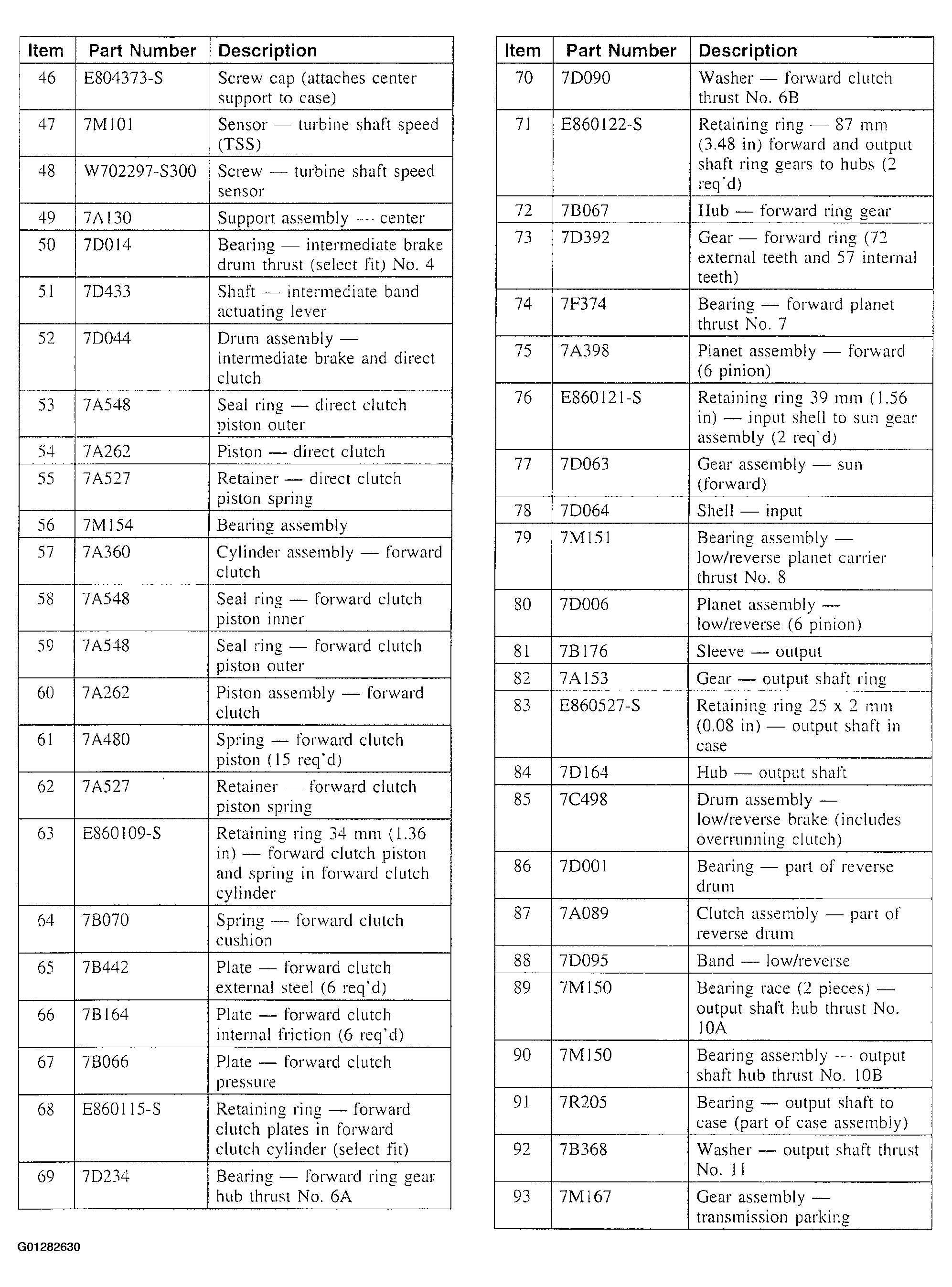

Fig 4: Description Table (2 Of 4)

Courtesy of FORD MOTOR CO.

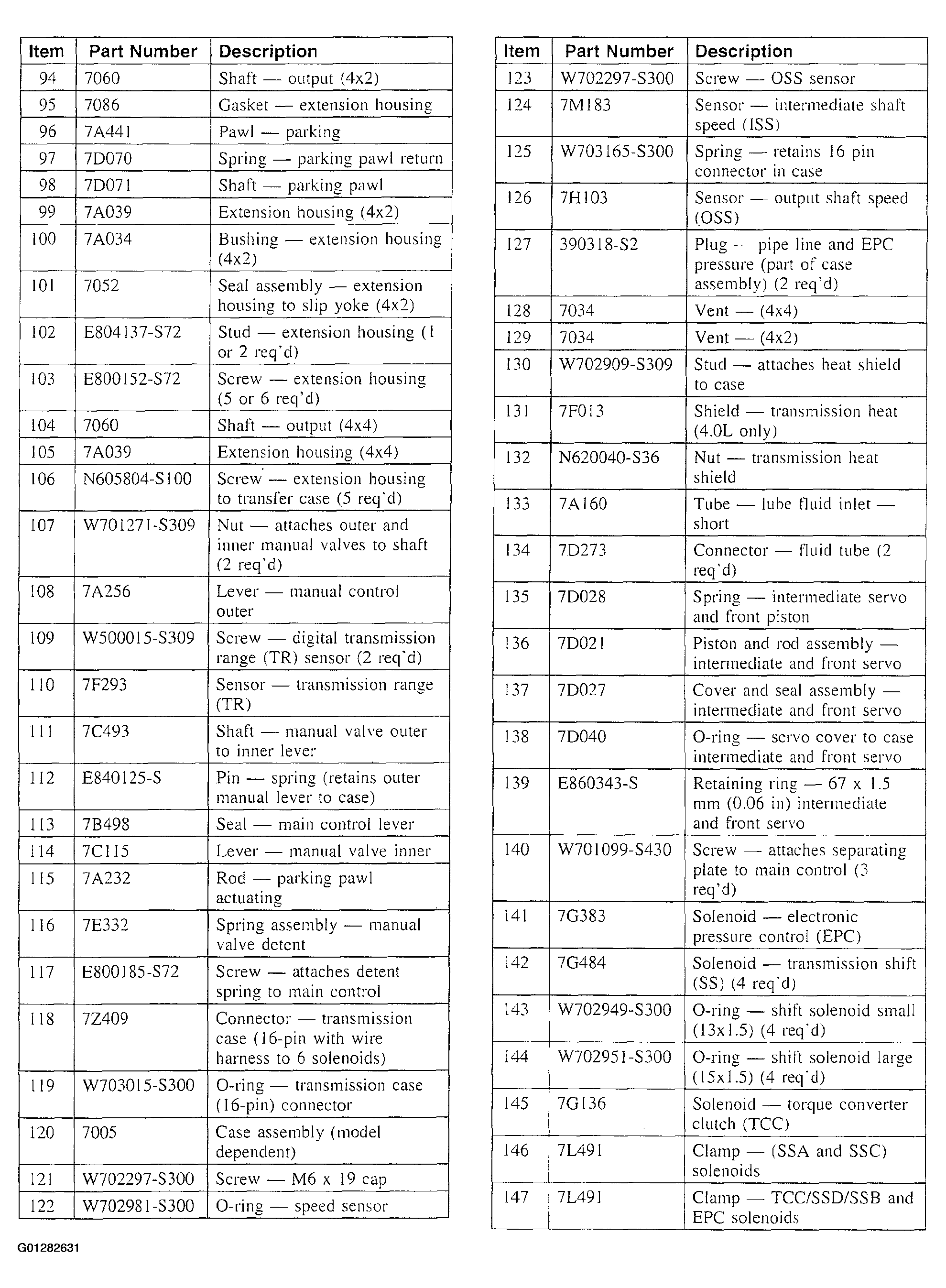

Fig 5: Description Table (3 Of 4)

Courtesy of FORD MOTOR CO.

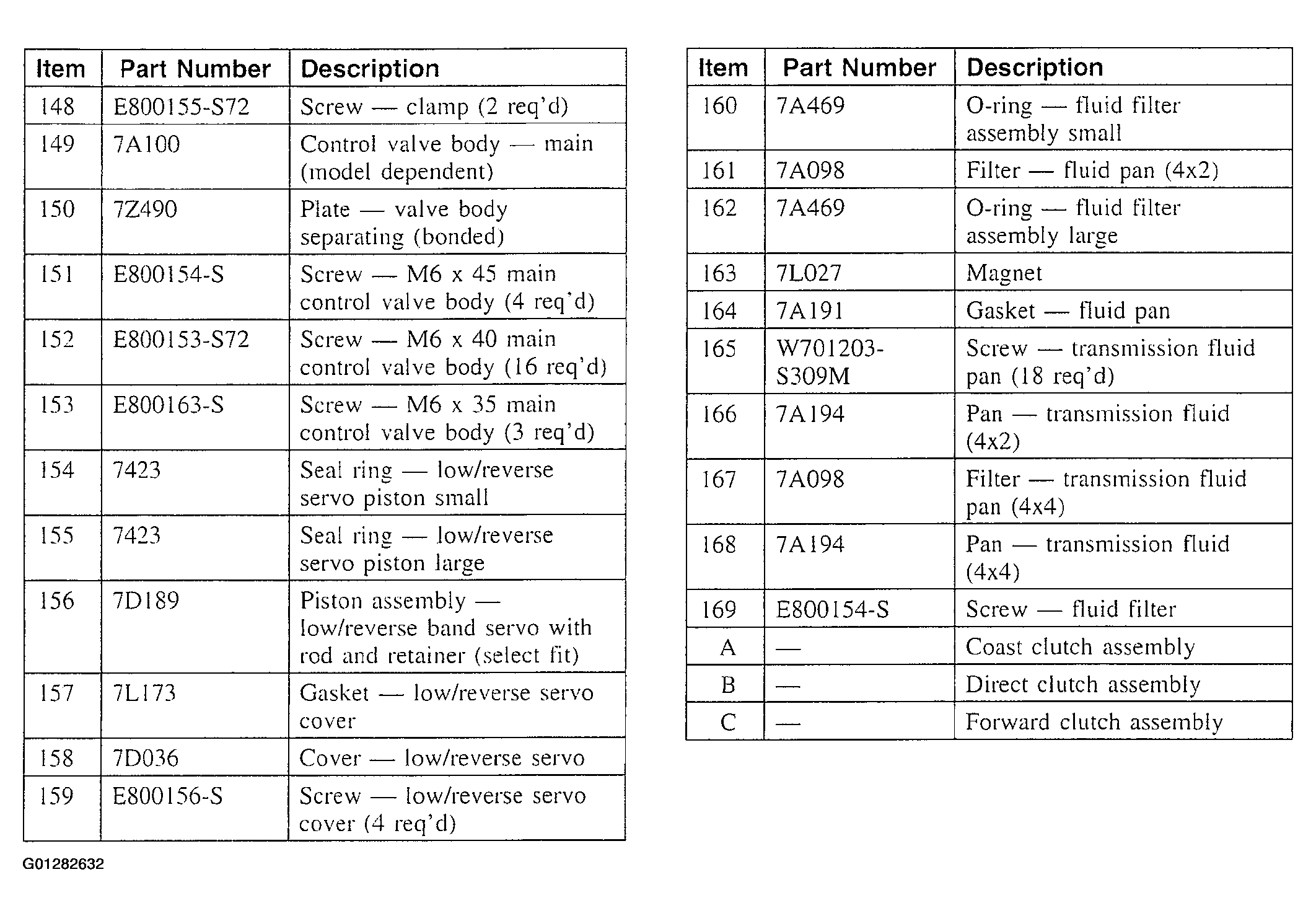

Fig 6: Description Table (4 Of 4)

Courtesy of FORD MOTOR CO.
