| Band Adjustment Screw Lock Nut |
40 (54) |
| Drive Shaft Bolts & Nuts |
76 (103) |
| Exhaust Flange Nuts |
30 (40) |
| Extension Housing Screws |
18 (24) |
| Fill Plug |
15 (20) |
| Fluid Pan Drain Plug |
19 (26) |
| Fluid Pump Housing Screws |
18 (25) |
| Front Crossmember Bolts |
62 (70) |
| Heat Shield Screws |
15 (20) |
| Inspection Cover Screws |
26 (34) |
| Lower & Upper Crossmember Screws |
62 (70) |
| Manual Control Lever Shaft Nut |
35 (48) |
| Rear Transmission Support Nuts |
66 (90) |
| Shift Cable Bracket Bolts |
30 (40) |
| Shift Cable Screws |
35 (40) |

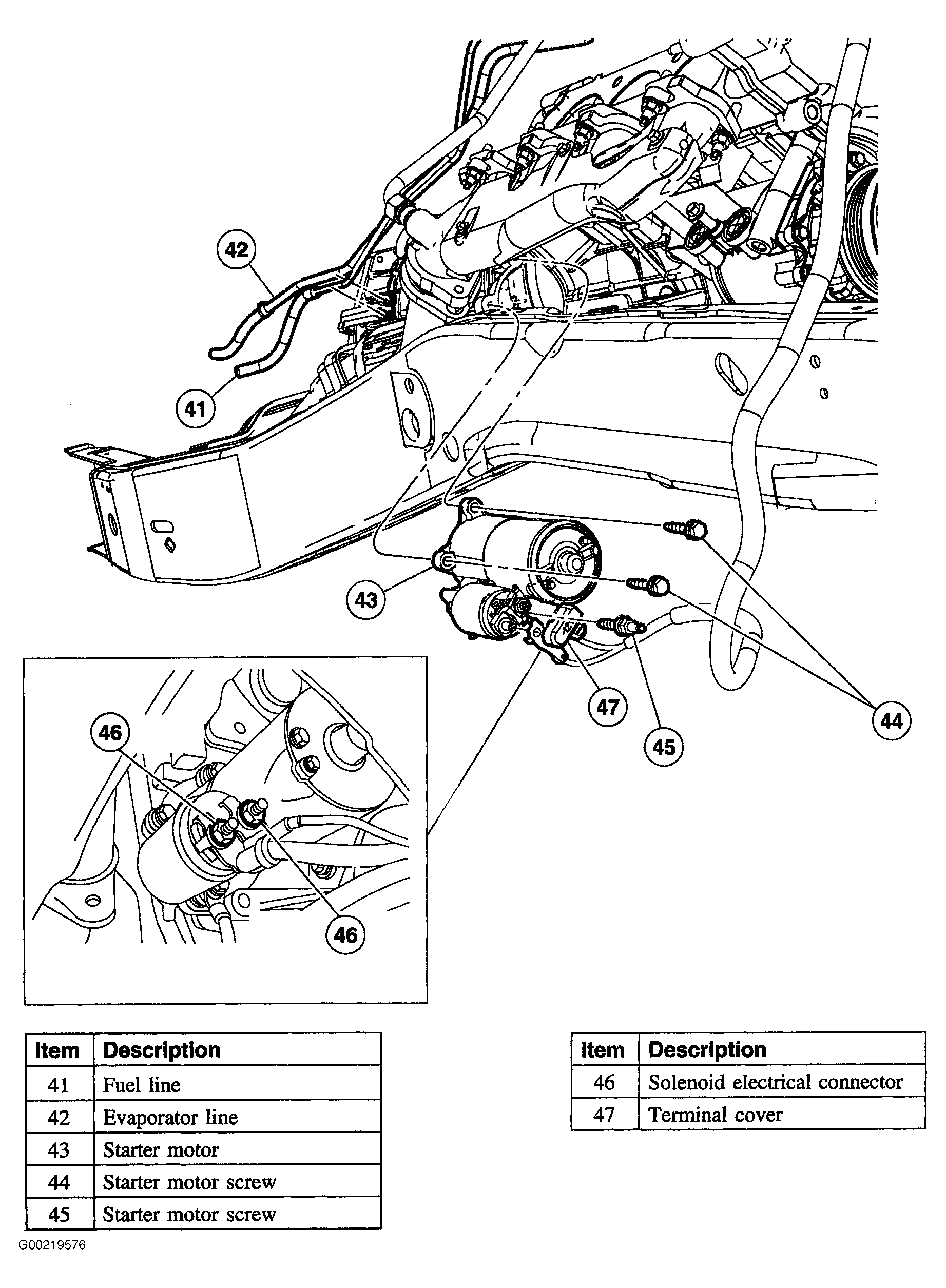

| Starter Motor Screw |
18 (24) |
| Torque Converter Adapter Plate-To-Converter Nuts |
28 (38) |
| Torque Converter Adapter Plate-To-Flexplate Nuts |
28 (38) |
| Transmission Cooler Fitting-To-Case Retainer |
35 (47) |
| Transmission Cooler Tube Nut-To-Case Fitting |
22 (30) |
| Transmission Mount-To-Crossmember Nuts |
66 (90) |
| Transmission Mount-To-Extension Housing Screws |
66 (90) |
| Transmission-To-Engine Bolts |
35 (48) |
| INCH Lbs. (N.m) |
| Band Adjustment Screw |
124 (14) |
| Case-To-Center Support Screw |
97 (11) |
| Converter Drain Plug |
89 (10) |
| Digital Transmission Range Sensor Screws |
89 (10) |
| Fluid Level Indicator Plug-To-Drain Pipe Assembly Retainer |
89 (10) |
| Fuel Tank Shield Nuts |
80 (9) |
| Main Control-To-Case Screws |
89 (10) |
| Manual Control Valve Detent Spring Screw |
89 (10) |
| Pressure Tap Plug-To-Case Retainer |
124 (14) |
| Reverse Servo Assembly Bolts |
97 (11) |
| Separator-To-Main Control Bolts |
89 (10) |
| Solenoid Body Bolts |
71 (8) |
| Solenoid Electrical Connector Left Bolt |
115 (13) |
| Solenoid Electrical Connector Right Bolt |
44 (5) |
| Speed Sensor Screws |
124 (14) |
| Transmission Fluid Filter Bolts |
89 (10) |
| Transmission Fluid Pan-To-Case Screws |
97 (11) |
| Vehicle Harness-To-Solenoid Body Screw |
44 (5) |
