Cylinder Head - Distortion

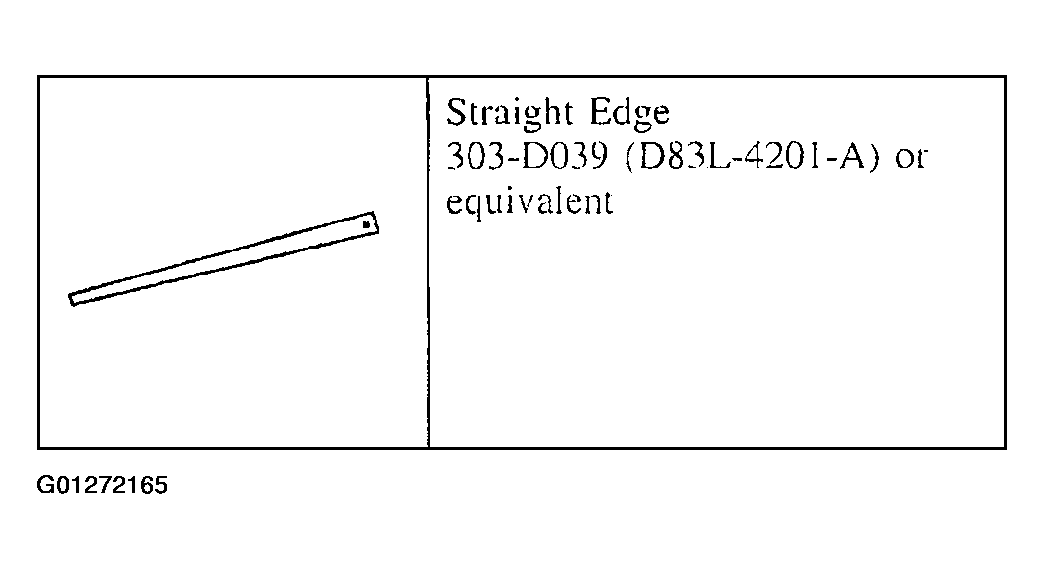

Fig 1: Identifying Special Tool - Cylinder Head (Distortion)
G01272165Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

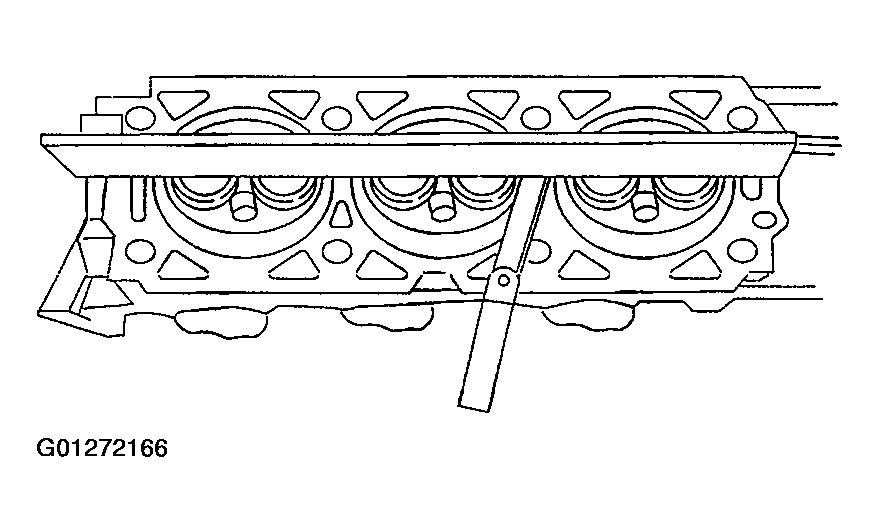

Fig 2: Inspecting Cylinder Head For Flatness
G01272166Courtesy of FORD MOTOR CO.
