General Procedures: Bearings

CAUTION: If any of the following conditions exist, install a new bearing

Inspect the bearing for a bent cage.

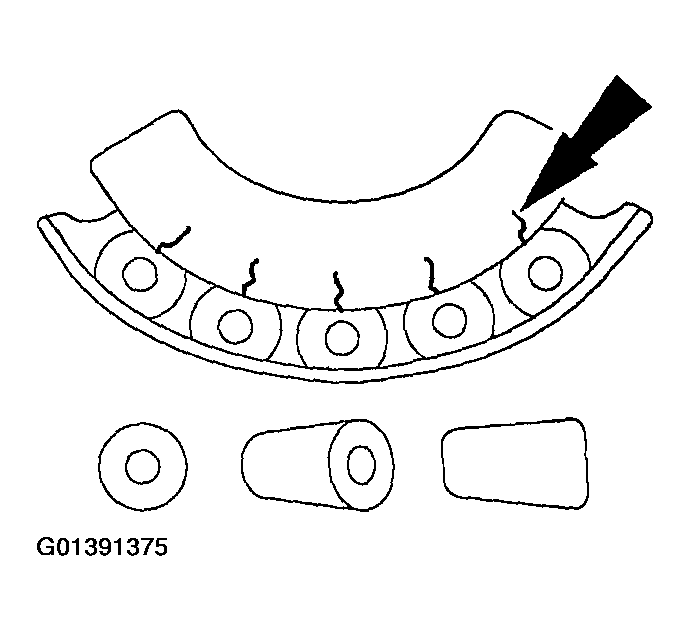

Fig 1: Inspecting Bearing For A Bent Cage
Courtesy of FORD MOTOR CO.
Inspect the bearings for galling (metal smears on the roller ends).

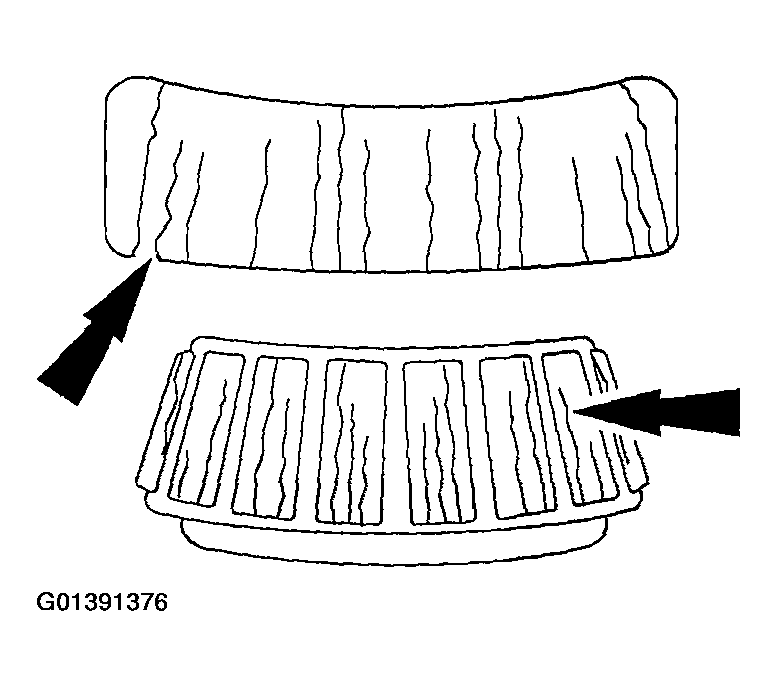

Fig 2: Inspecting Bearings For Galling
Courtesy of FORD MOTOR CO.
Inspect the bearings for brinelling (surface indentation in the race).

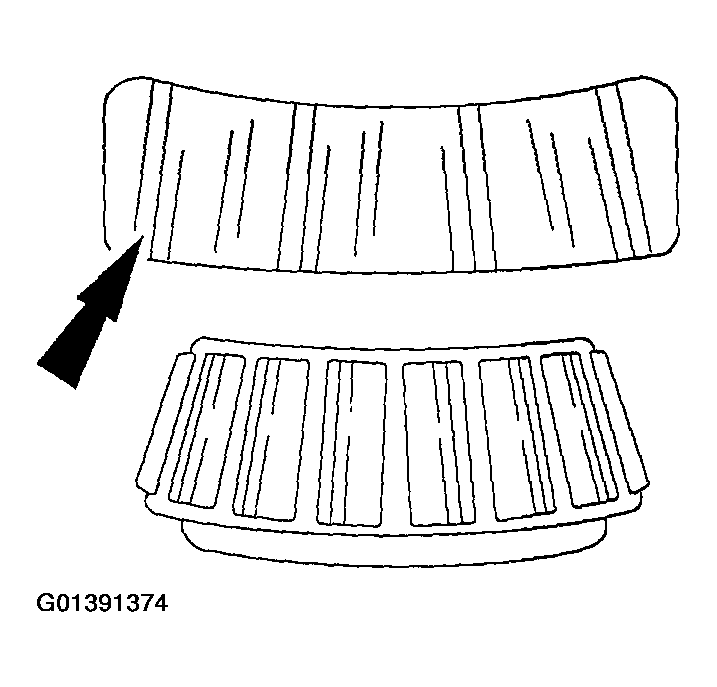

Fig 3: Inspecting Bearings For Brinelling
Courtesy of FORD MOTOR CO.
Inspect the bearing for a cracked inner race.

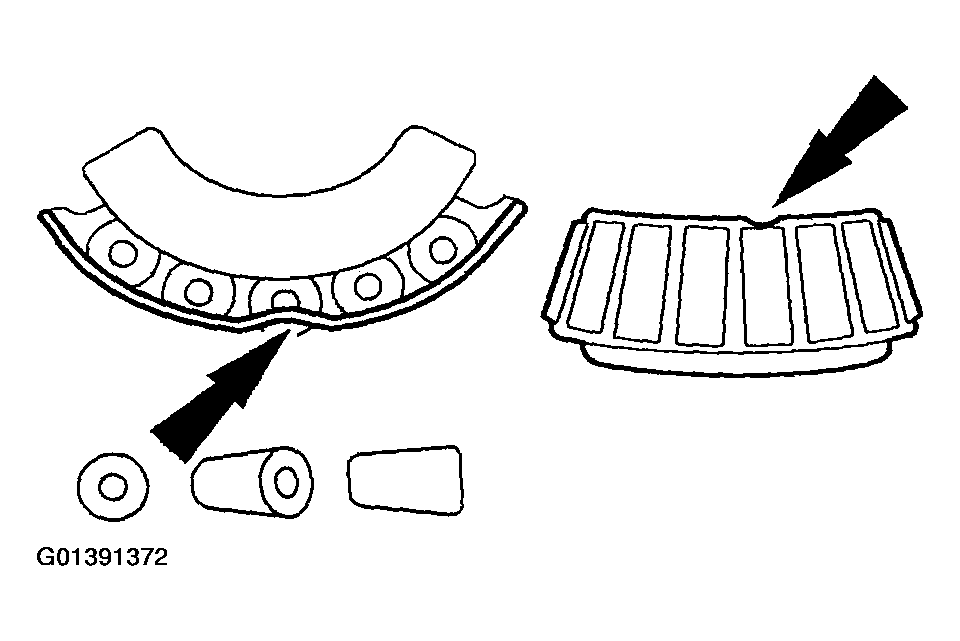

Fig 4: Inspecting Bearing For Cracked Inner Race
Courtesy of FORD MOTOR CO.

CAUTION: If etching is present, inspect the seals.

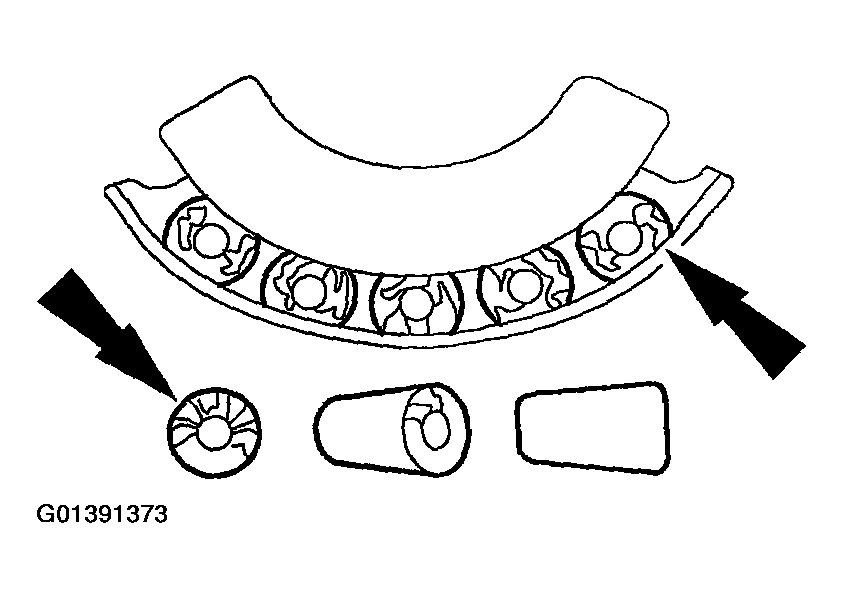

Fig 5: Inspecting Bearing And Race For Etching

Courtesy of FORD MOTOR CO.

Inspect the bearing and race for etching.
Inspect the bearing for heat discoloration (dark blue).

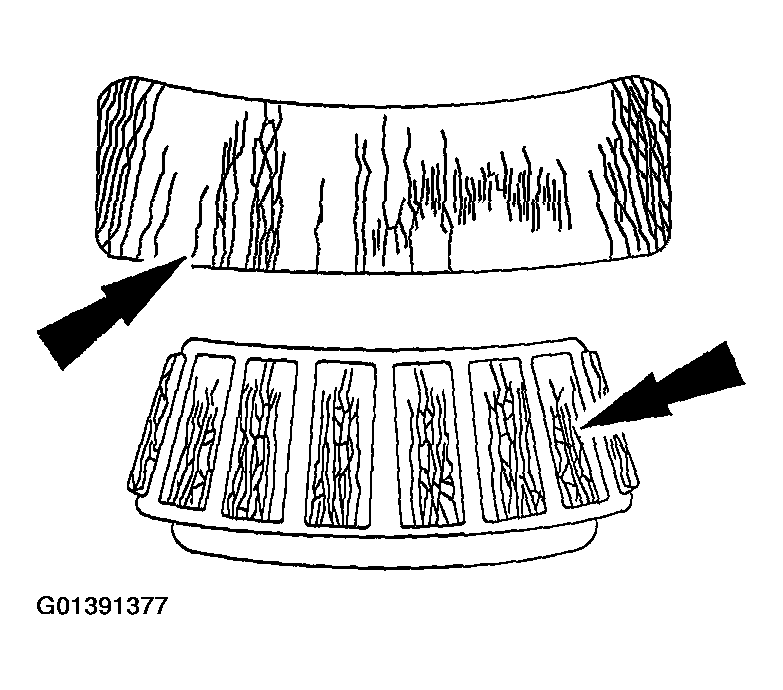

Fig 6: Inspecting Bearing For Heat Discoloration
Courtesy of FORD MOTOR CO.
