Brake Shift Interlock Relay

NOTE: Brake shift interlock relay is located behind left side of dash, near steering column. See Fig 1.

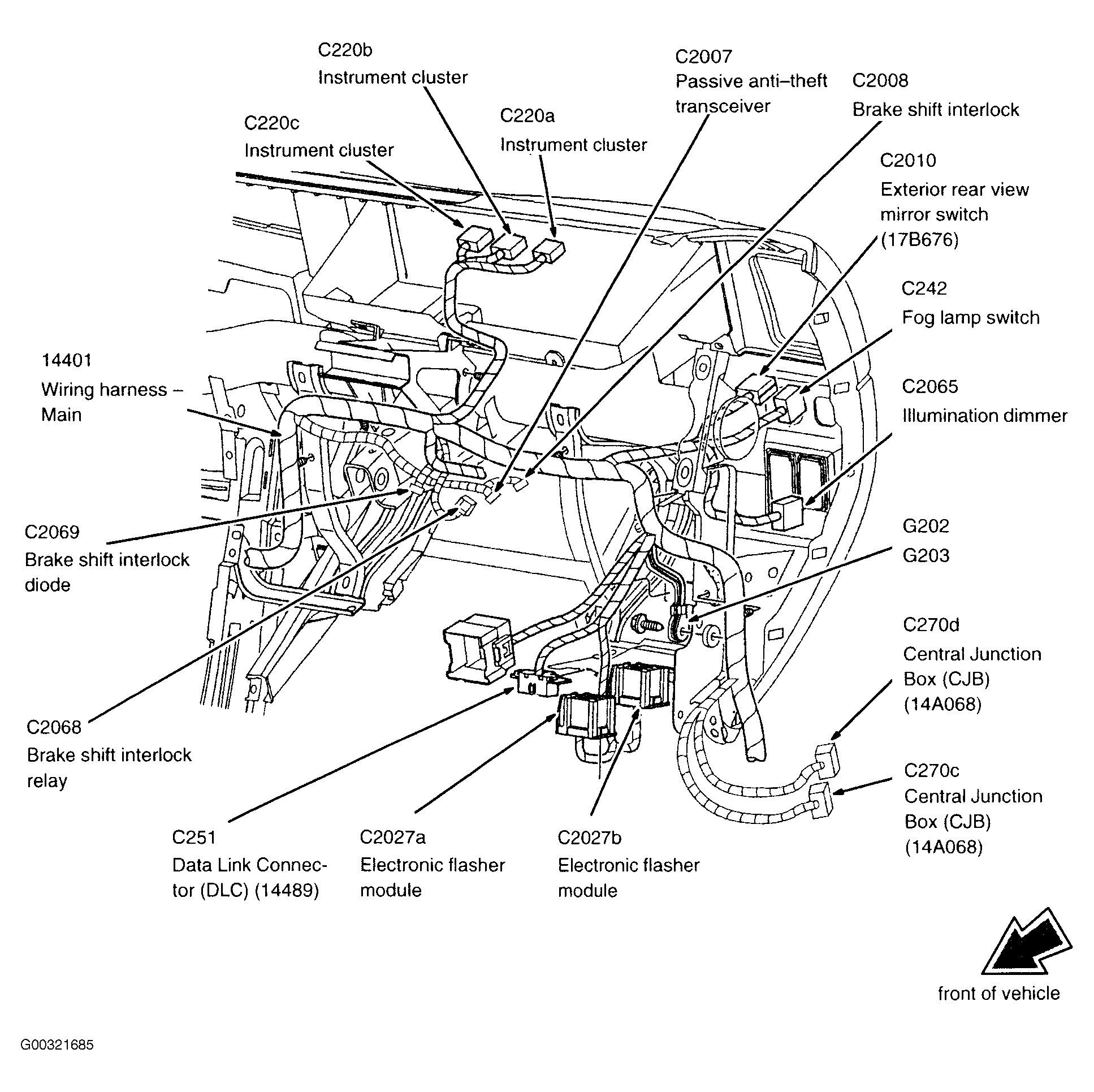

Fig 1: Locating Instrument Panel Electrical Components And Relays

Courtesy of FORD MOTOR CO.

INSTRUMENT PANEL ELECTRICAL COMPONENTS RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C2068	Brack Shift Interlock Relay
