Pulley - Zetec: Installation

  1. Thread the (B) forcing bolt into the power steering pump and turn (A) Power Steering Pump Pulley Replacer to install the power steering pump pulley.

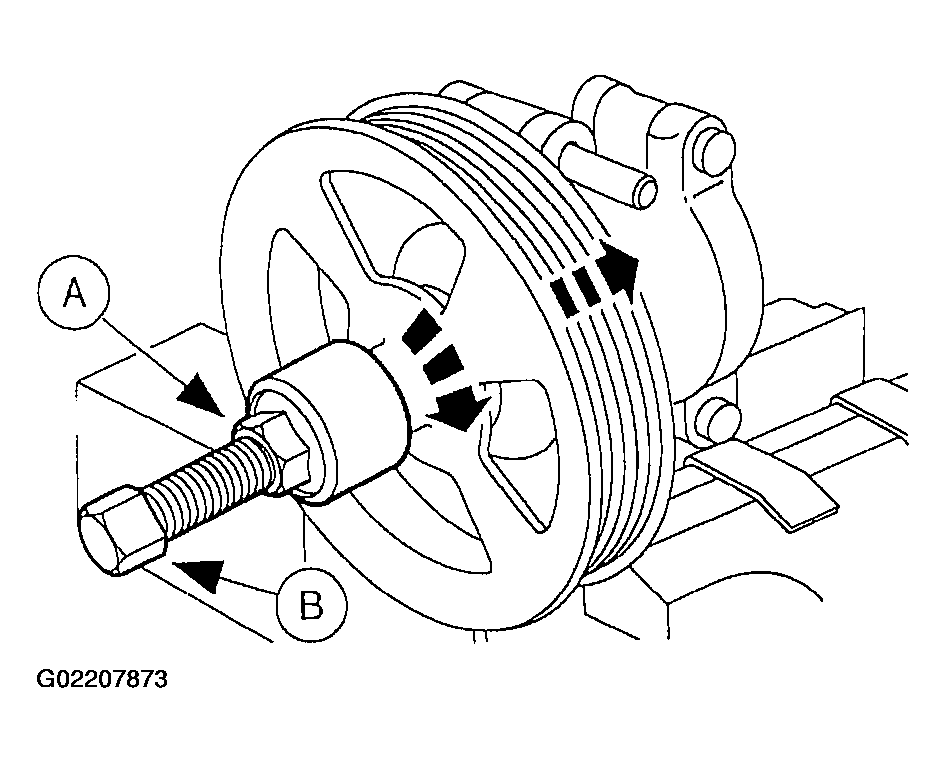

    Fig 1: Installing Power Steering Pump Pulley
    G02207873Courtesy of FORD MOTOR CO.
  2. Install the power steering pump.
