Pulley - 2.0L: Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

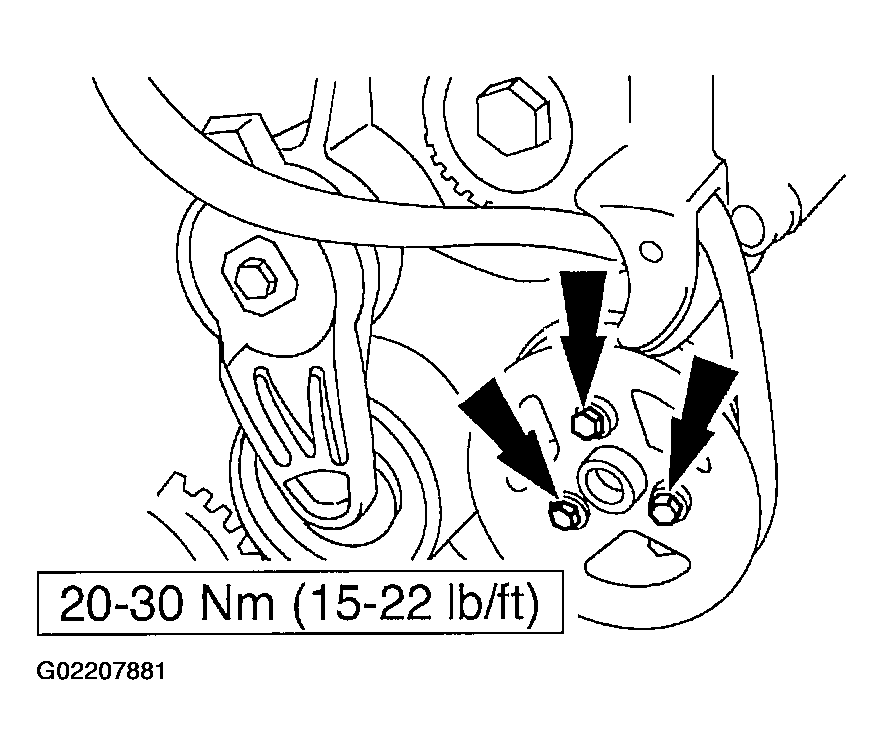

    Fig 1: Installing Pulley Bolts
    G02207881Courtesy of FORD MOTOR CO.

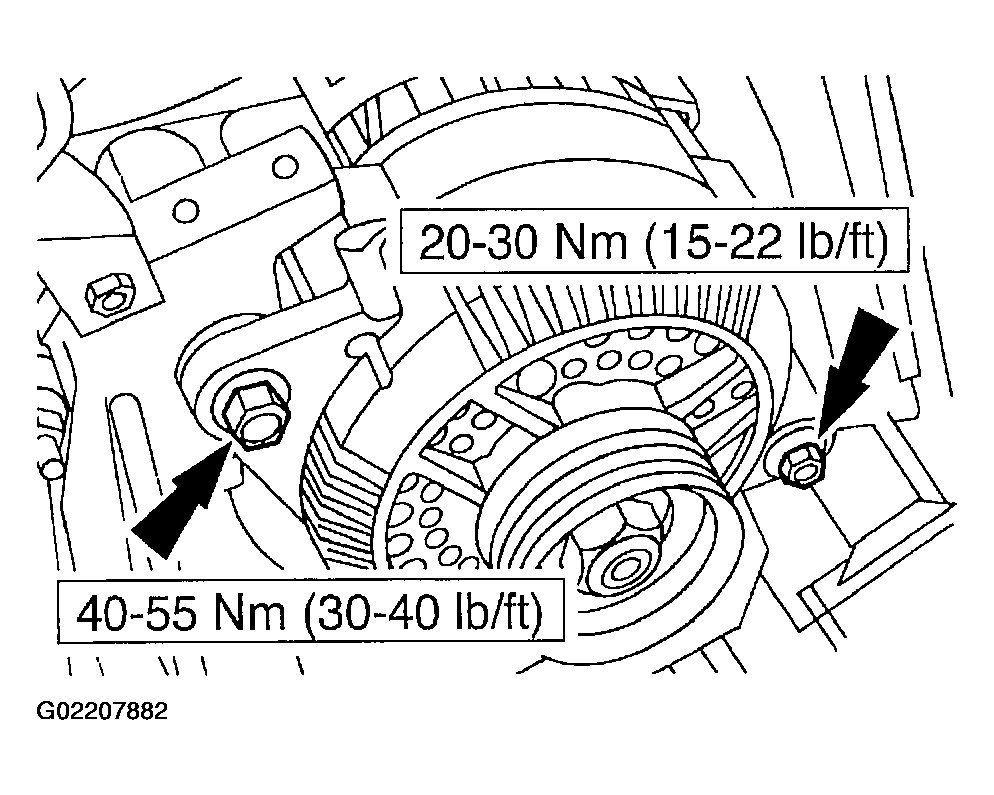

    Fig 2: Installing Power Steering Pump Bolts
    G02207882Courtesy of FORD MOTOR CO.

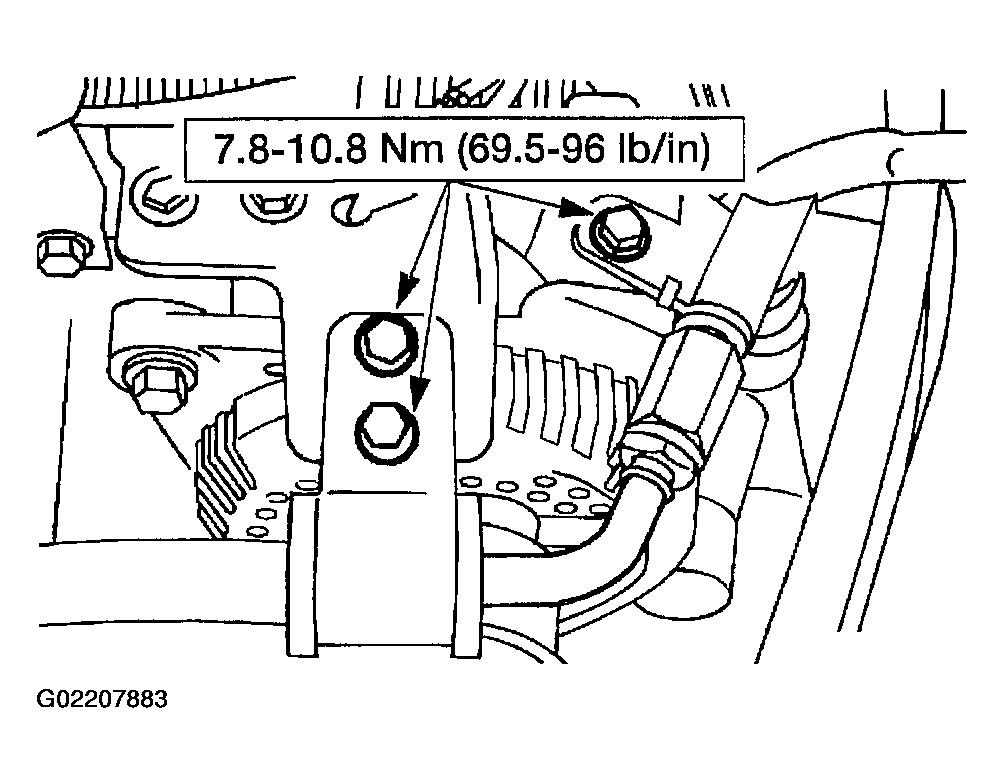

    Fig 3: Installing Power Steering Pressure Hose Bolts
    G02207883Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
