Engine - Lower Components

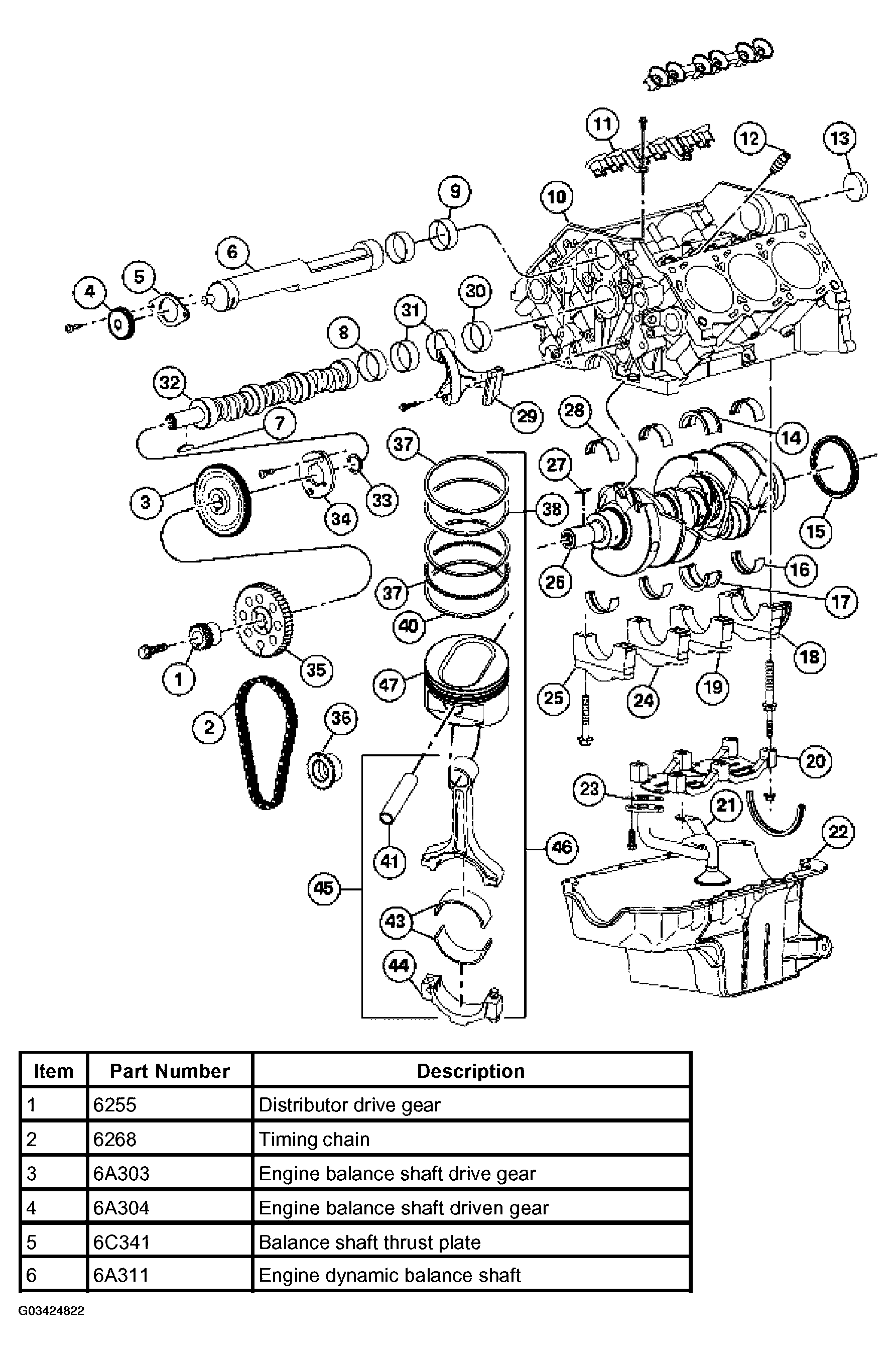

Fig 1: Exploded View Of 3.8L Engine (Engine - Lower Components) (1 Of 2)
G03424822Courtesy of FORD MOTOR CO.

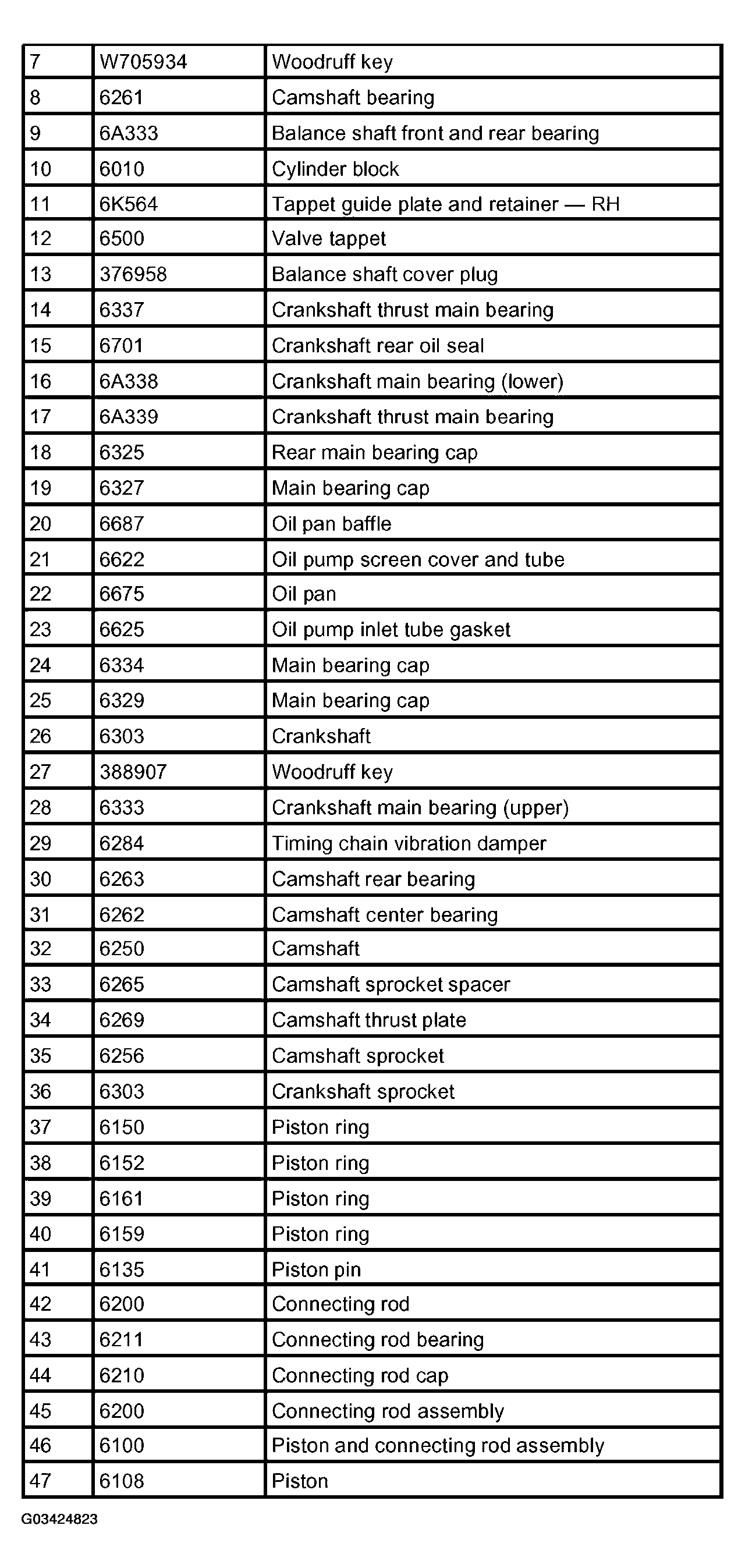

Fig 2: Exploded View Of 3.8L Engine (Engine - Lower Components) (2 Of 2)
G03424823Courtesy of FORD MOTOR CO.
