Engine - External Components

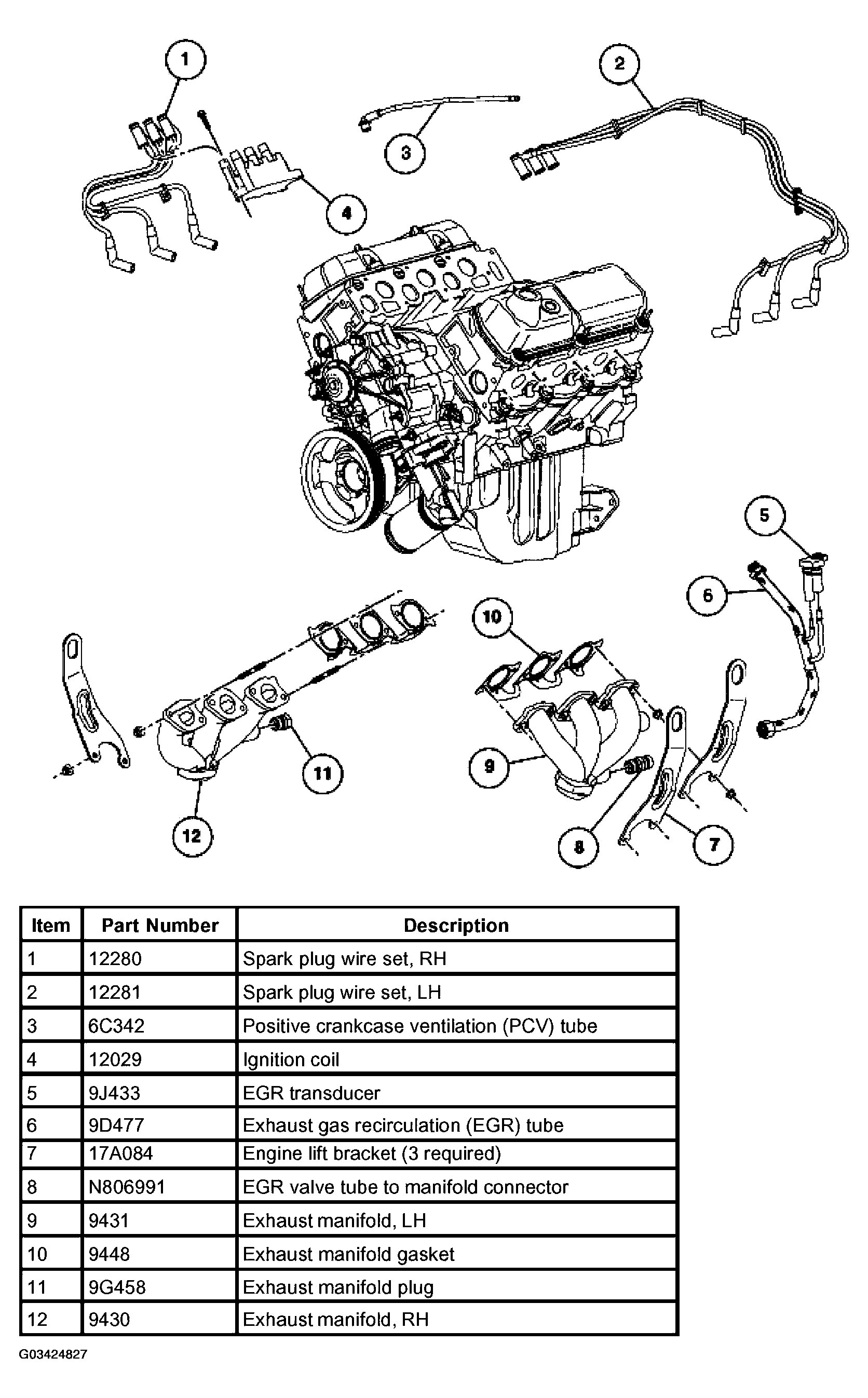

Fig 1: Identifying Components Of Engine - External Components
G03424827Courtesy of FORD MOTOR CO.
