Inline Connector End View (C264)

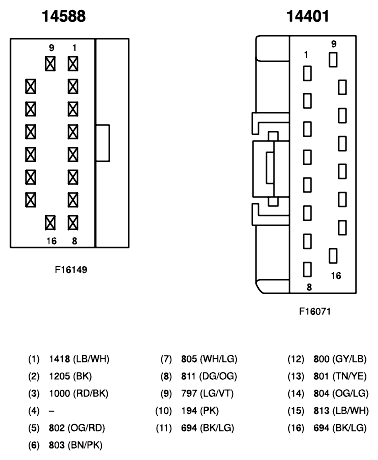

Fig 1: Identifying Inline Connector (C264)

G10360796

Courtesy of FORD MOTOR CO.
