Home >> Ford >> 2002 >> Windstar Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Inline Connector End View (C144)

Inline Connector End View (C144)

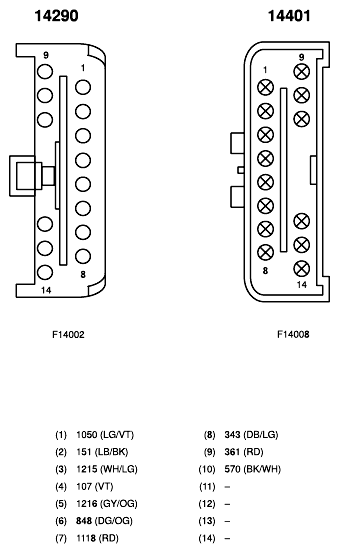

Fig 1: Identifying Inline Connector (C144)

G10360736

Courtesy of FORD MOTOR CO.
