Combination Fluid Cooler: Removal

  1. Remove the A/C condenser core. For additional information, refer to AIR CONDITIONING .
  2. Remove and discard the six hose clamps.

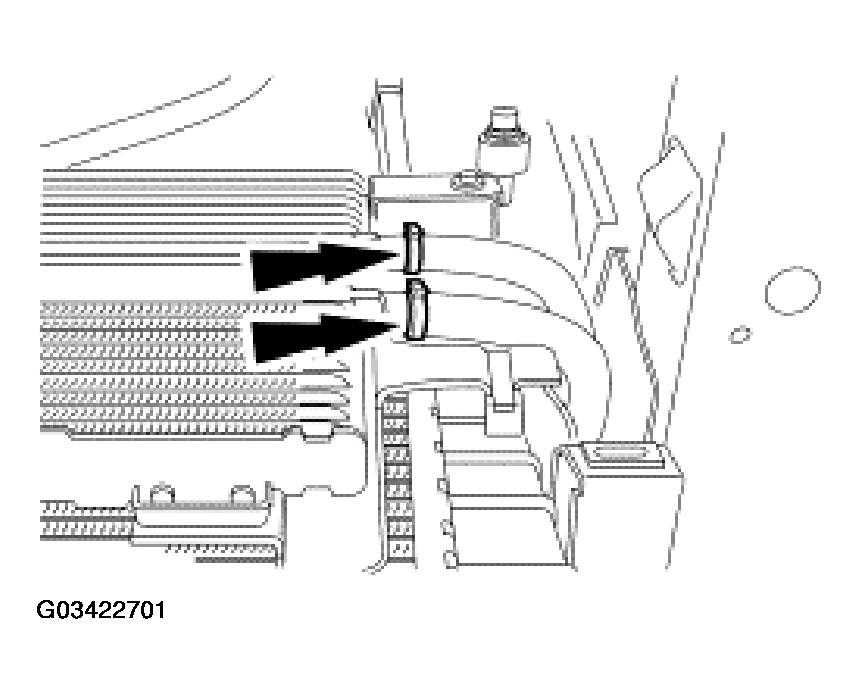

    3. Fig 1: Removing And Discarding Hose Clamps
    G03422701Courtesy of FORD MOTOR CO.
    NOTE: Position a drain pan under the vehicle to catch any fluid that may spill.
  3. Disconnect the six hoses from the cooler. Plug the hoses and the cooler.
  4. Remove the cooler.
    1. Remove the two bolts.
    2. Lift the cooler from the retainers and remove the cooler.

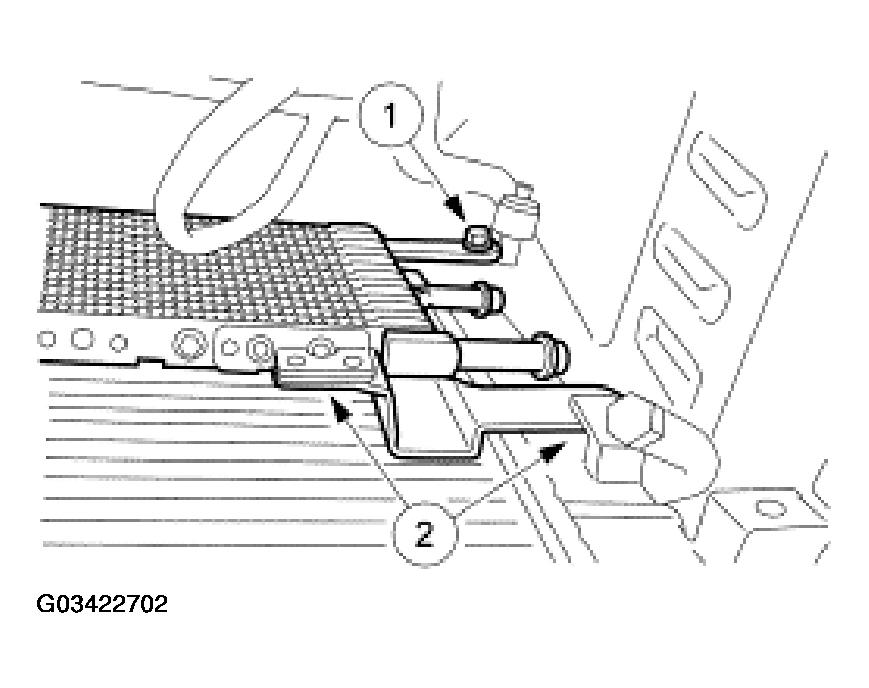

      Fig 2: Removing Cooler
      G03422702Courtesy of FORD MOTOR CO.
